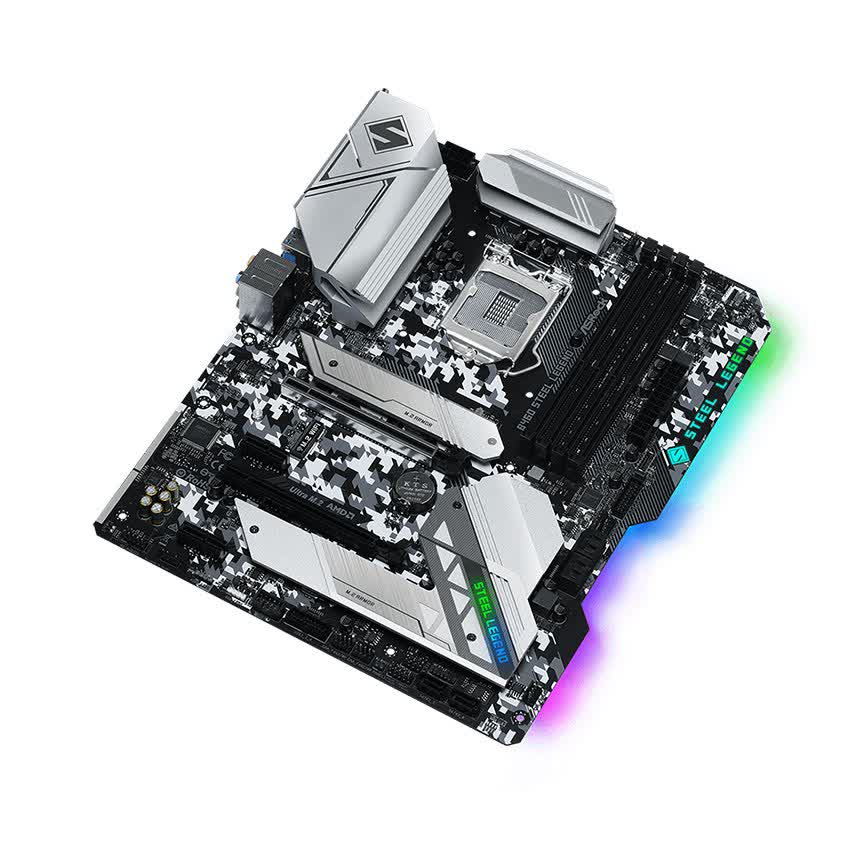

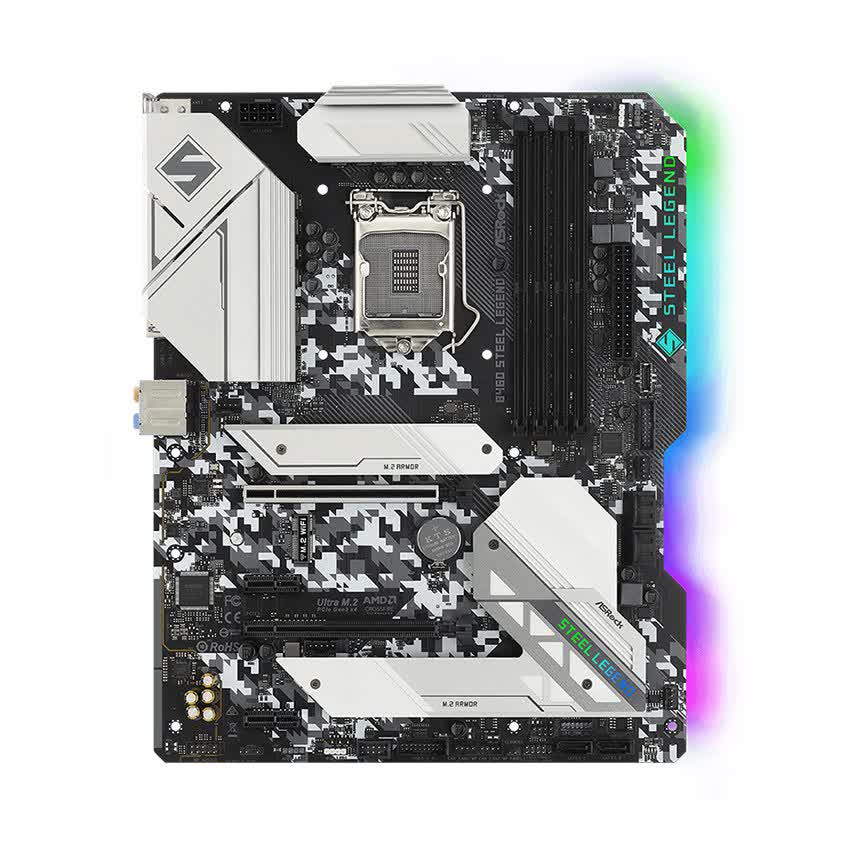

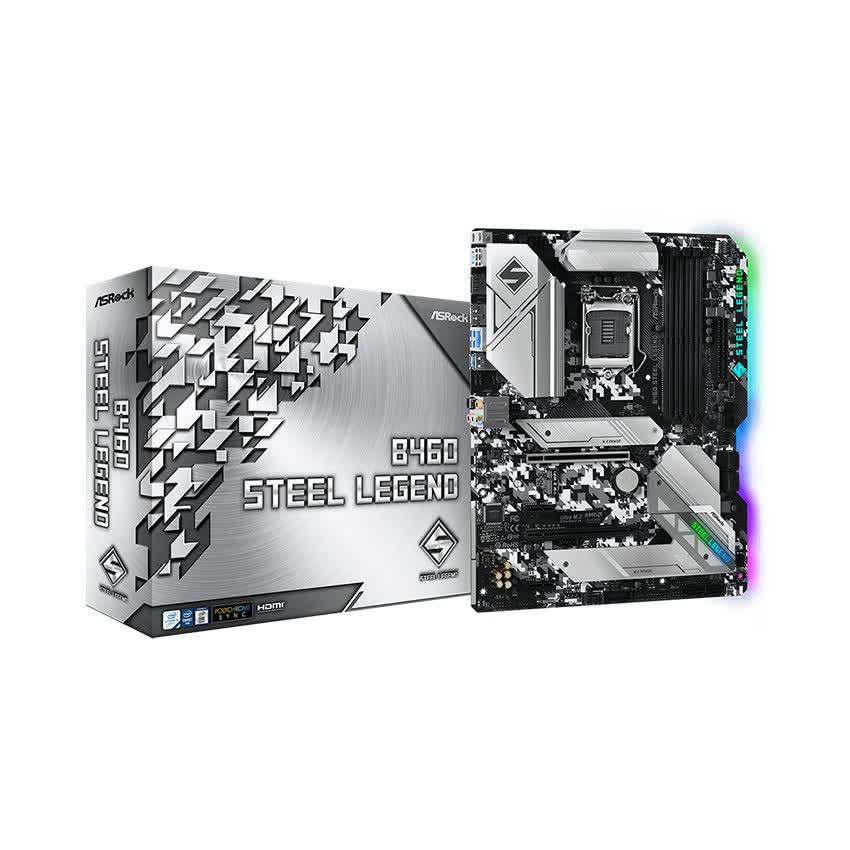

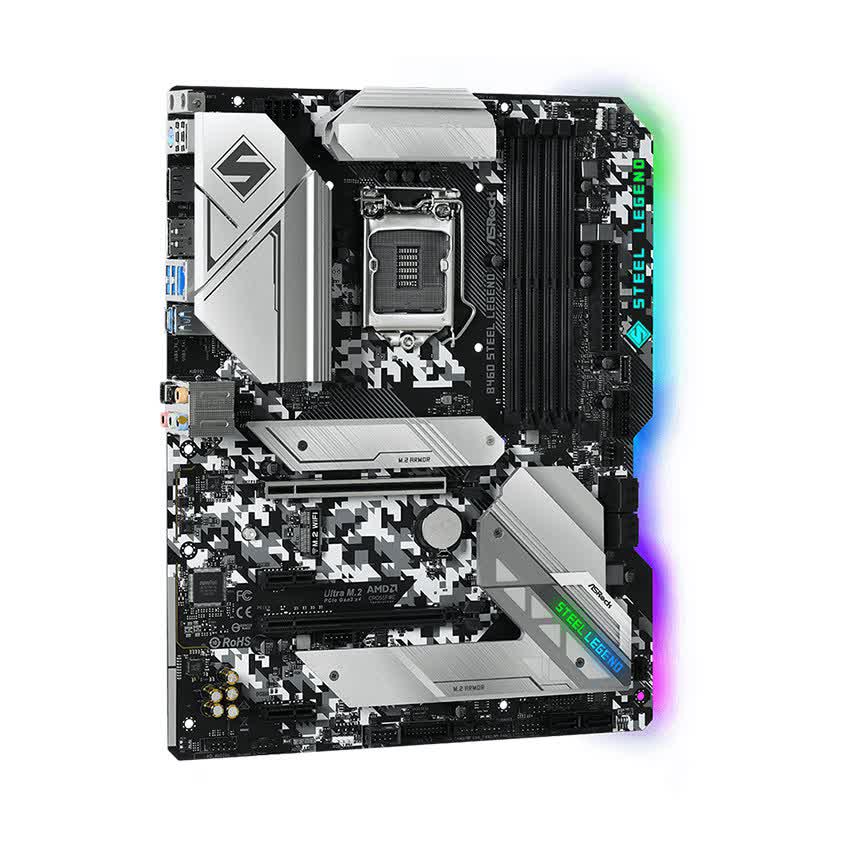

Mainboard ASROCK B460 STEEL LEGEND (Intel B460, Socket 1200,ATX, 4 khe Ram DDR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

Asrock

Model

B460 Steel Legend

CPU hỗ trợ

Intel

Chipset

B460

RAM hỗ trợ

4 x DDR4 DIMM Slots ( tối đa 128GB )
Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory

Khe cắm mở rộng

2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)
2 x PCI Express 3.0 x1 Slots
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

Ổ cứng hỗ trợ

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

Cổng kết nối (Internal)

1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15μ Gold Audio Connector)
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Intel® B460) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Intel® B460+ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen1 Header (ASMedia ASM1074 hub) (Supports ESD Protection)

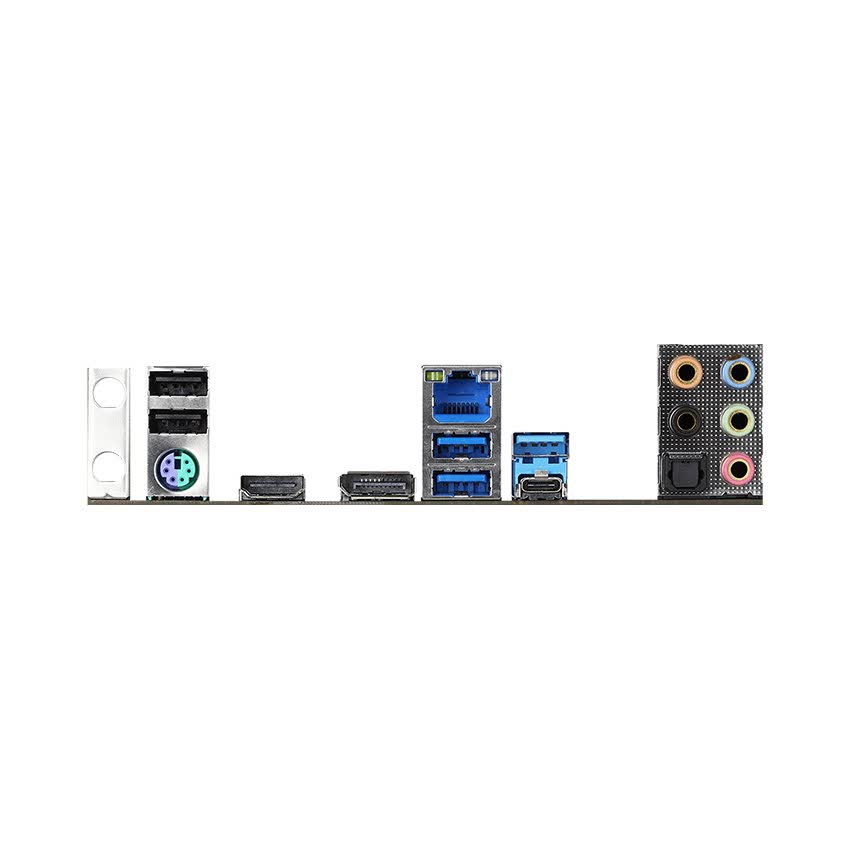

Cổng kết nối (Back Panel)

1 x Antenna Bracket
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
2 x USB 2.0 Ports (Supports ESD Protection)
3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

LAN / Wireless

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Kích cỡ

ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
