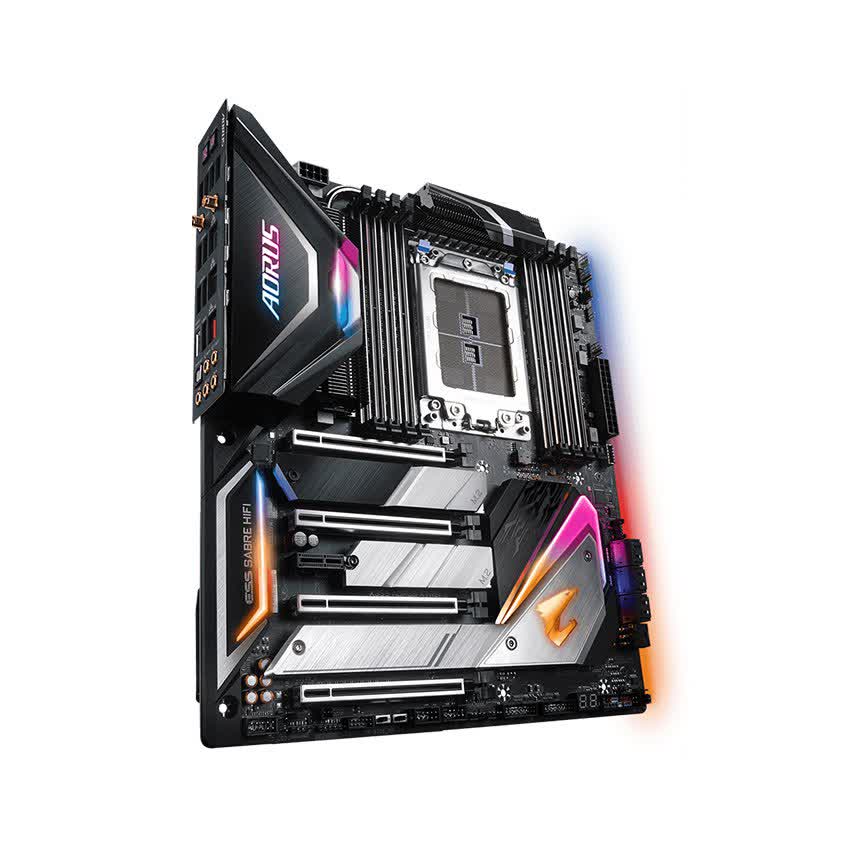

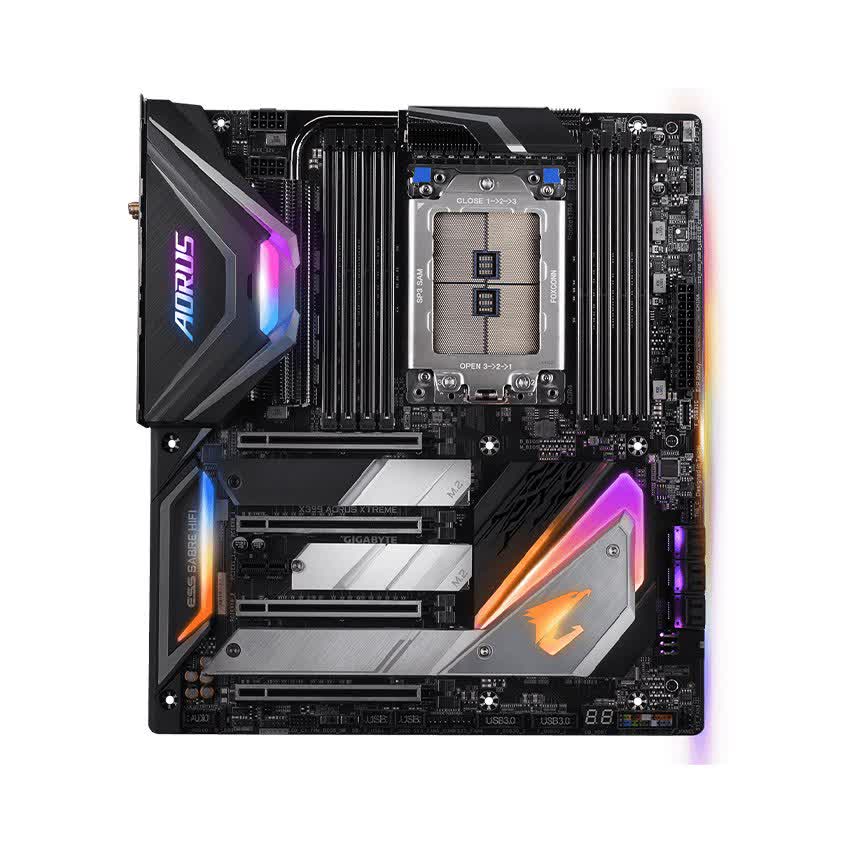

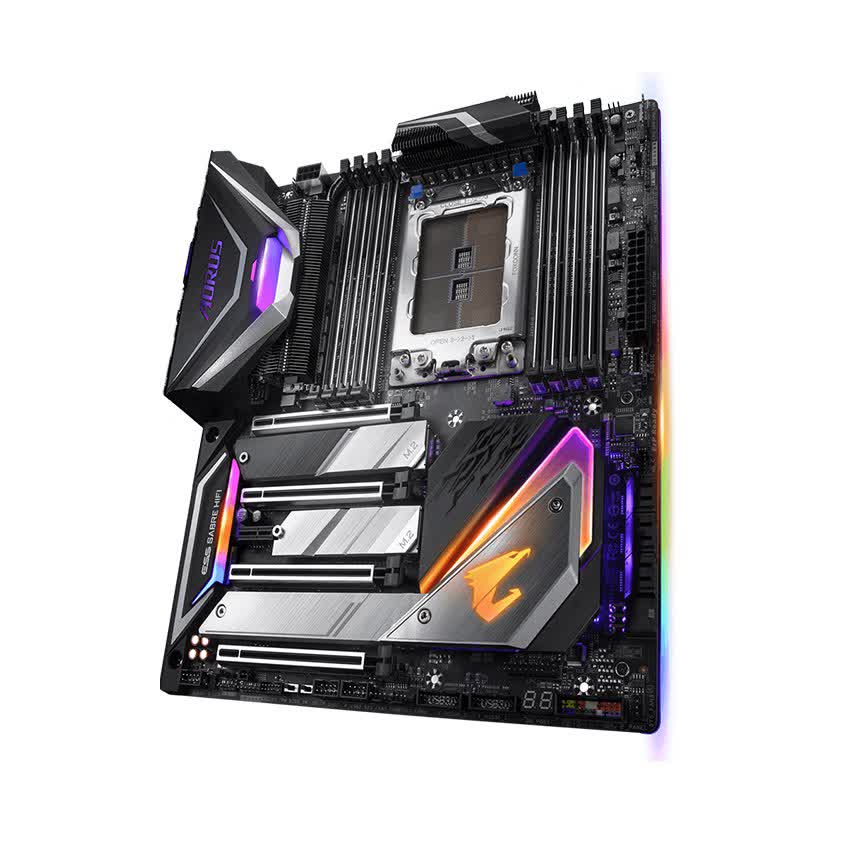

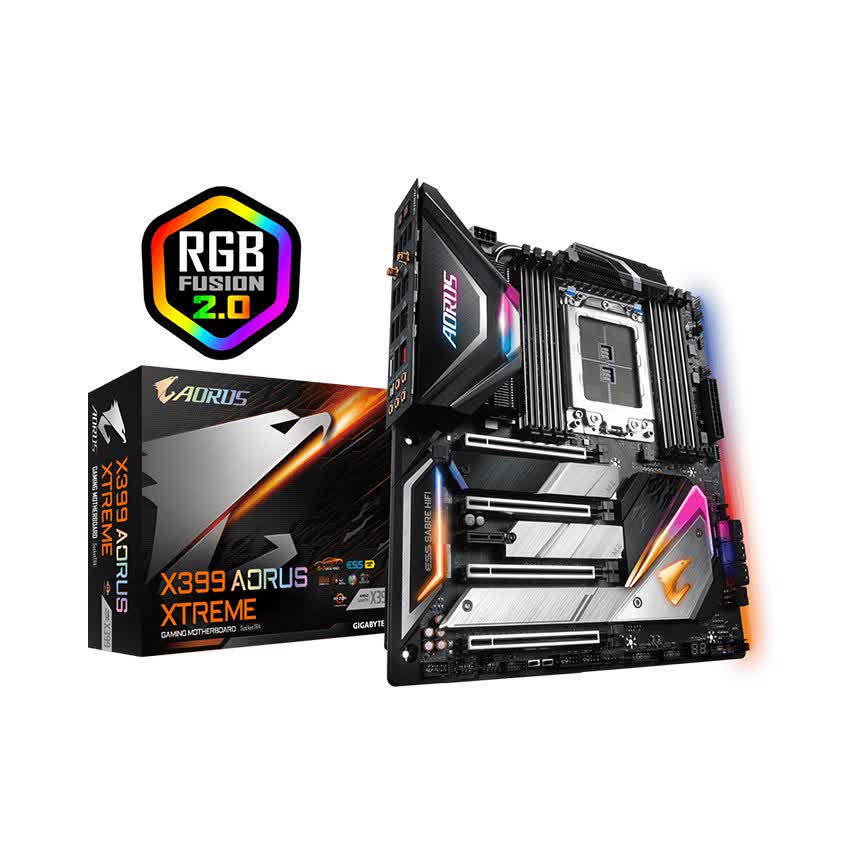

Mainboard Gigabyte X399 Aorus Xtreme

Mô tả chi tiết

Hãng sản xuất

Gigabyte

Chủng loại

X399 AORUS XTREME

CPU hỗ trợ

AMD Ryzen™ Threadripper™ processor

Chipset

X399

Bộ nhớ trong

8 x DDR4 DIMM sockets supporting up to 128 GB of system memory

4 channel memory architecture

Support for DDR4 3600+*(O.C.) / 3466+(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules * Recommend to use a 1st Gen. Ryzen™ Threadripper™ processor to achieve 3600MHz (O.C.) speed.

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

VGA onboard

Âm thanh

Realtek® ALC1220-VB codec

ESS9118EQ chip

Khe mở rộng

2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)

2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)

1 x PCI Express x1 slot (The PCIEX1_1 slot conforms to PCI Express 2.0 standard.)

Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies

Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies

Chuẩn lưu trữ

2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M) (M2Q)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

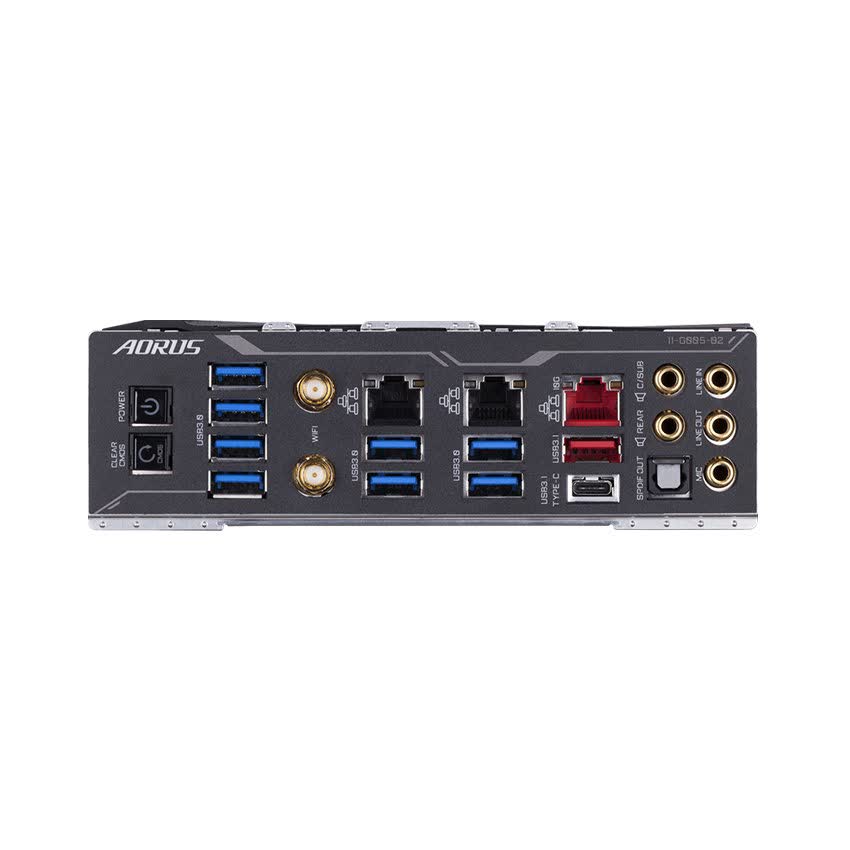

Cổng giao tiếp

1 x power/reset button

1 x Clear CMOS button

1 x USB Type-C™ port, with USB 3.1 Gen 2 support

1 x USB 3.1 Gen 2 Type-A port (red)

8 x USB 3.1 Gen 1 ports

3 x RJ-45 ports

2 x SMA antenna connectors (2T2R)

1 x optical S/PDIF Out connector

5 x audio jacks

Công nghệ tích hợp

Kích thước

E-ATX Form Factor; 30.5cm x 26.9cm

Phụ kiện đi kèm
