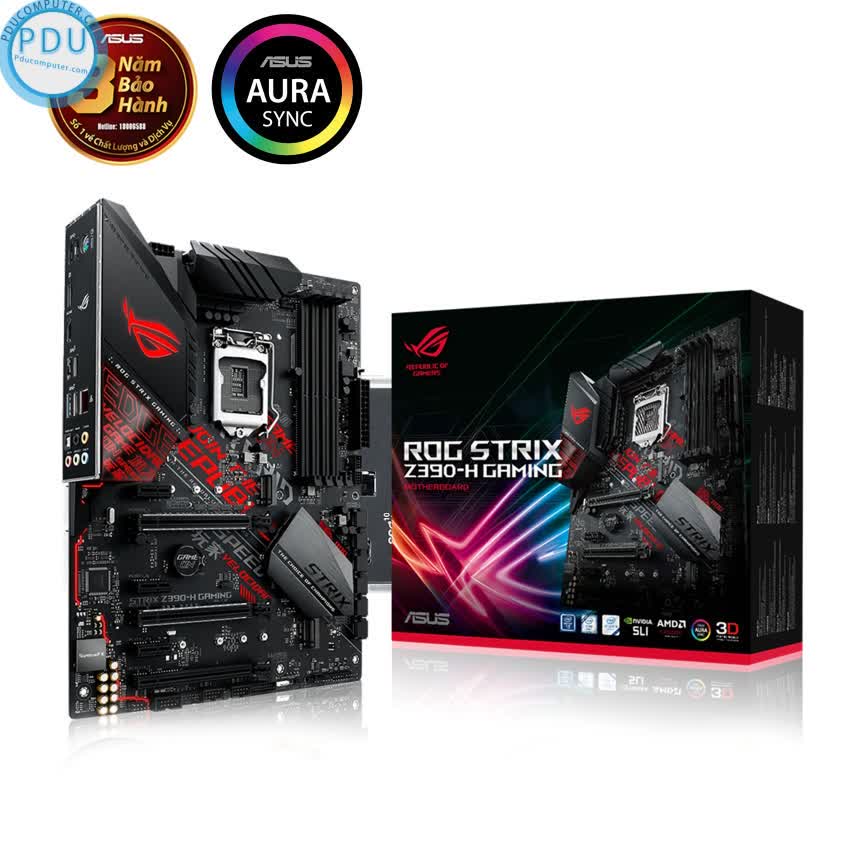

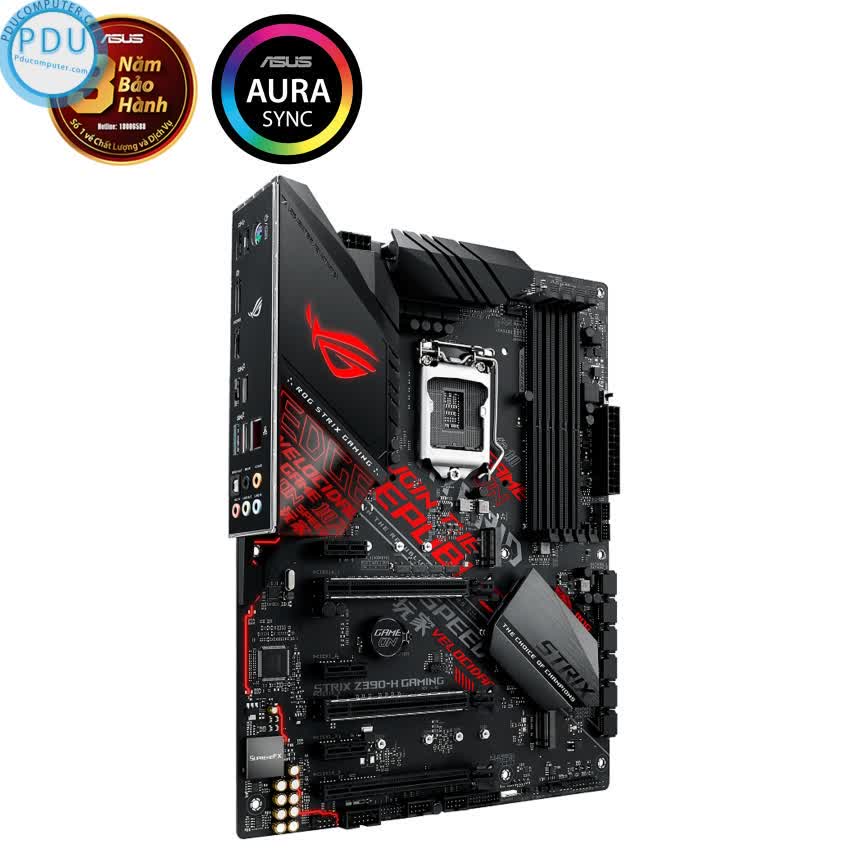

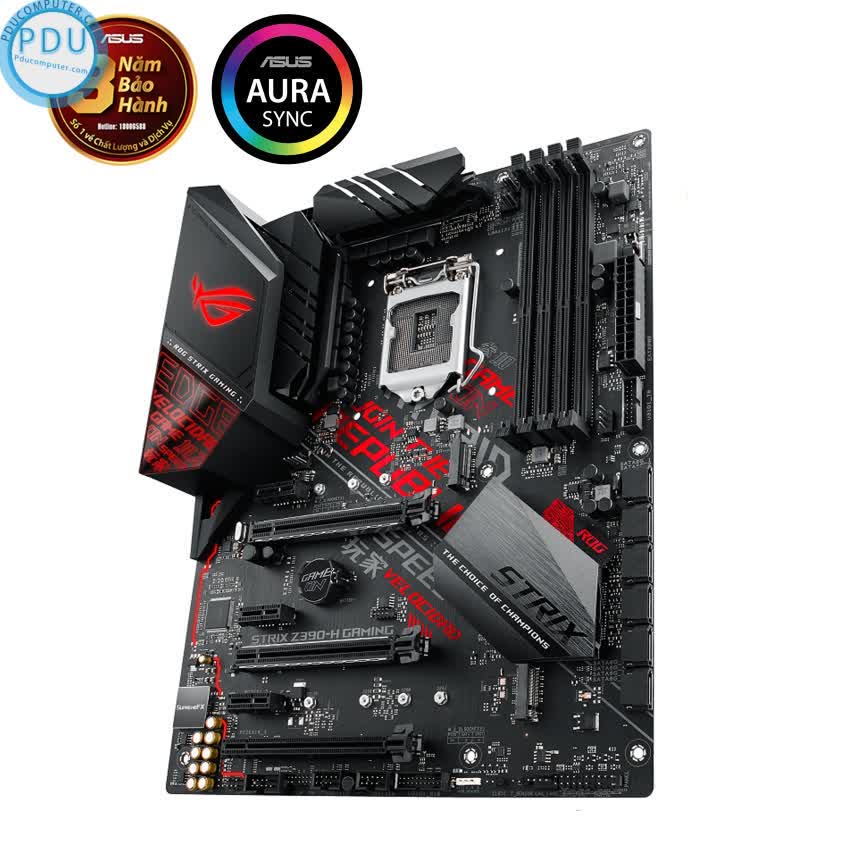

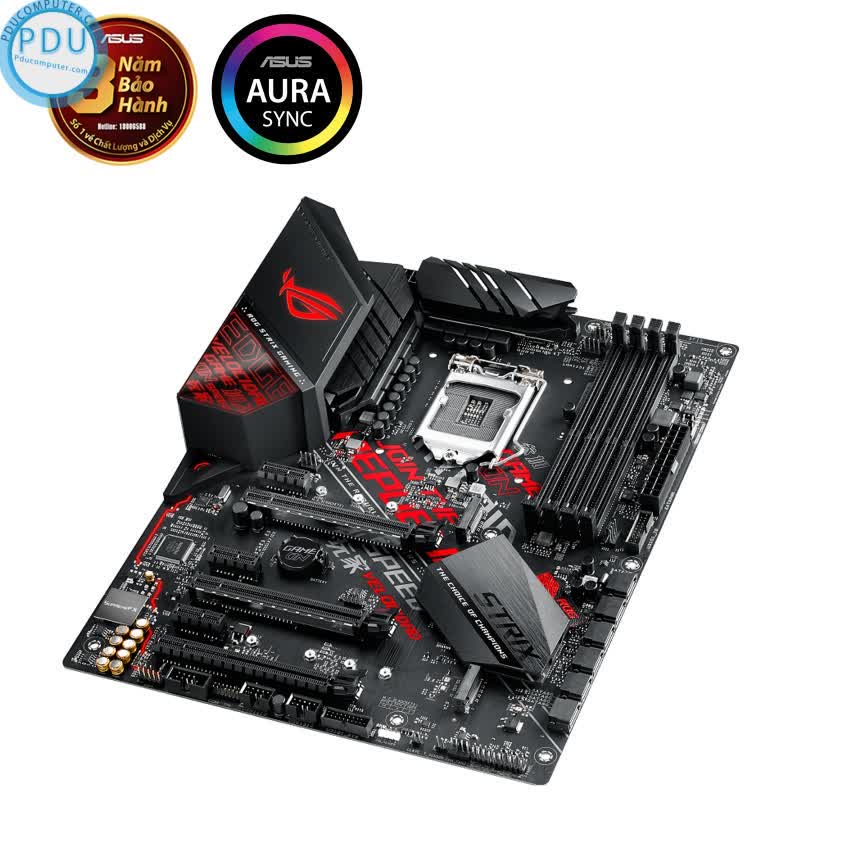

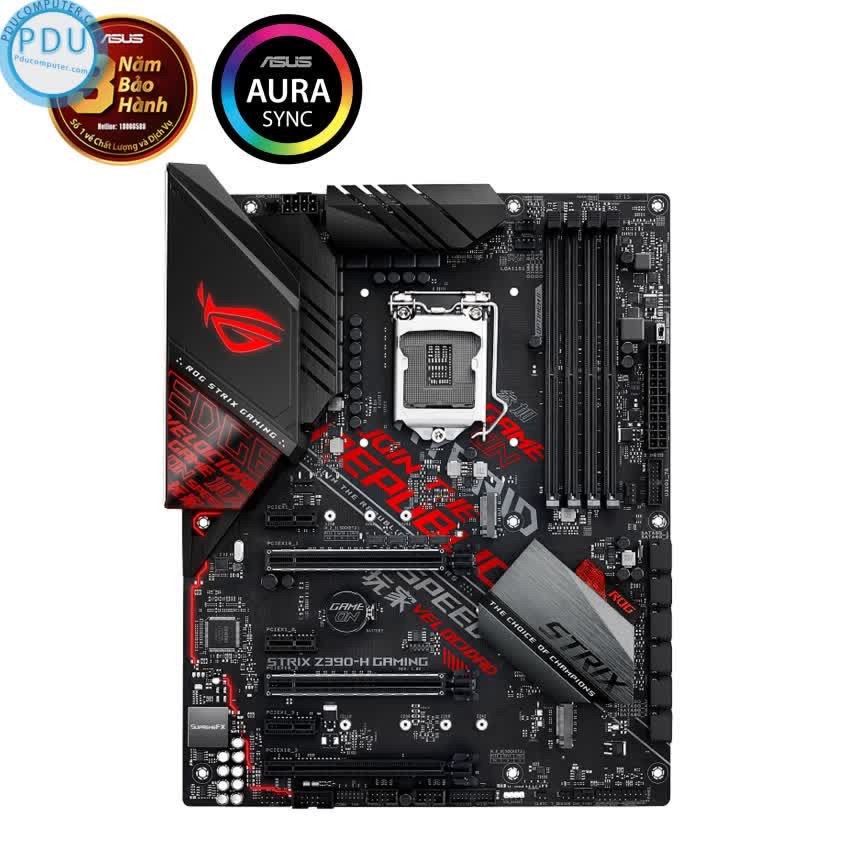

Mainboard ASUS ROG STRIX Z390-H GAMING

Tên gọi

ASUS ROG STRIX Z390-H GAMING

CPU hỗ trợ

- Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151v2)

Chipset / Socket

Intel® Z390

Bộ nhớ (RAM)

• 4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Công nghệ đa GPU

- Supports NVIDIA® Quad SLI™ and SLI™
- Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards**

Khe cắm mở rộng

• 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (x2 mode)
• 3 x PCIe 3.0/2.0 x1 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• 6 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 5, 10

LAN / Wireless

• Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
• Anti-surge LANGuard
• ROG GameFirst Technology

Âm thanh

Cổng kết nối (Internal)

• 1 x AAFP connector
• 1 x Aura RGB Strip Header
• 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x TPM connector(s)
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x AIO_PUMP connector
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x MemOK! II switch(es)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x Thermal sensor connector
• 1 x CPU_OV jumper

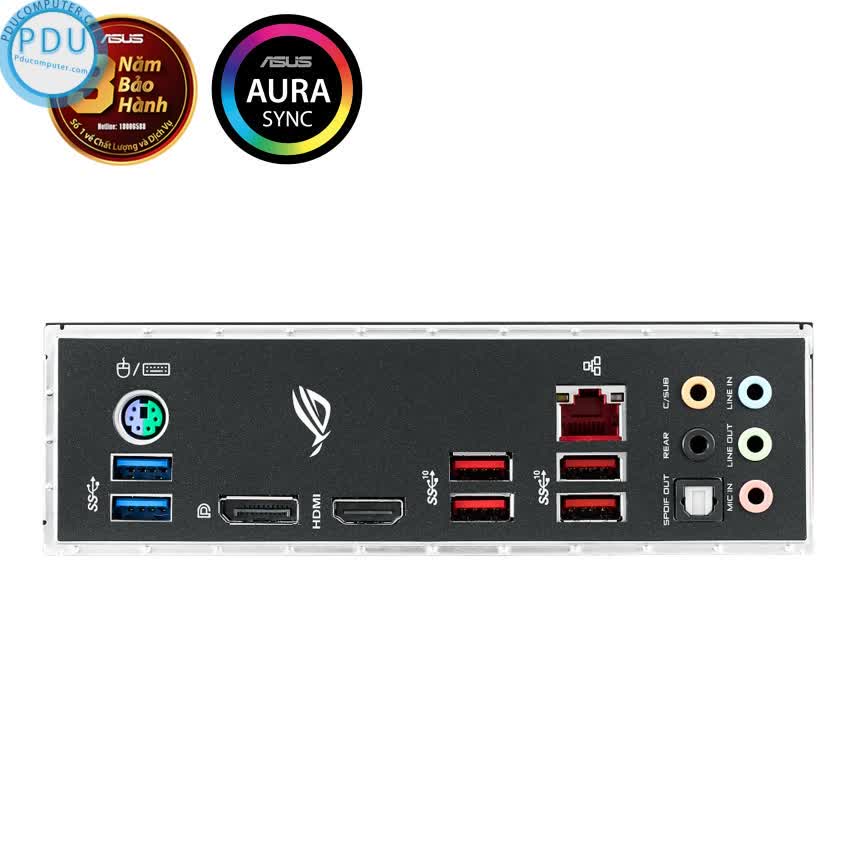

Cổng kết nối (Back Panel)

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.1 Gen 2 Type-A
• 2 x USB 3.1 Gen 1
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)

Công nghệ độc quyền

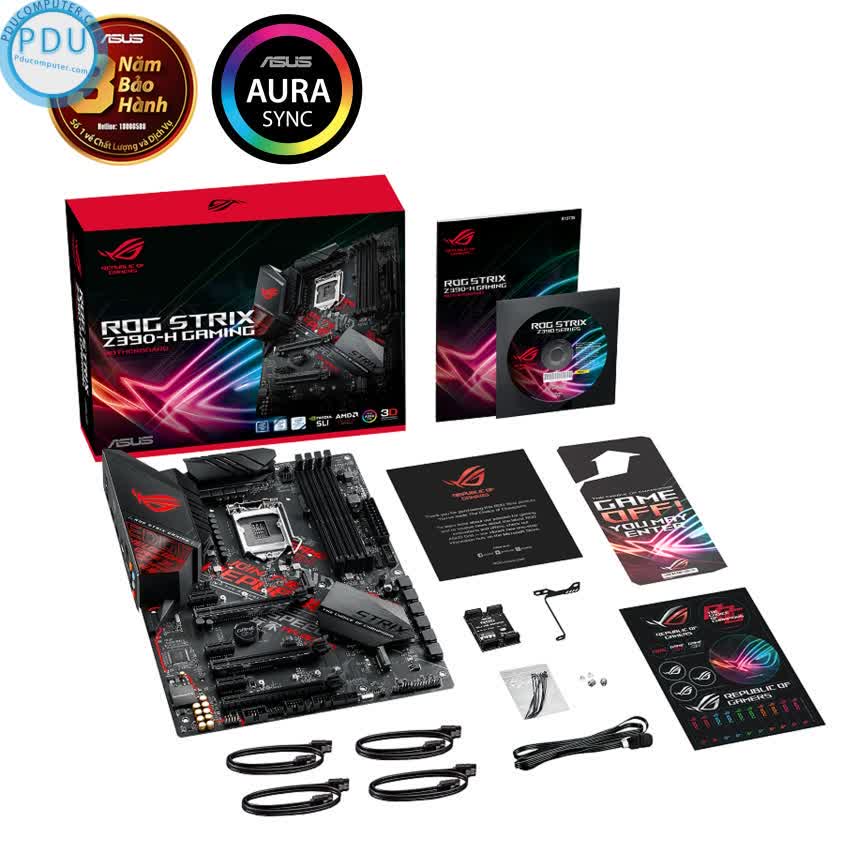

Phụ kiện đi kèm

• User's manual
  1 x ASUS Fan Holder
  4 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x SLI HB BRIDGE(2-WAY-M)
  1 x ROG Strix stickers
  ASUS Utilities
  EZ-update
  Anti-virus software (OEM version)

Hệ điều hành khuyến nghị

• Windows® 10 64-bit

Chuẩn kích cỡ

• ATX Form Factor
