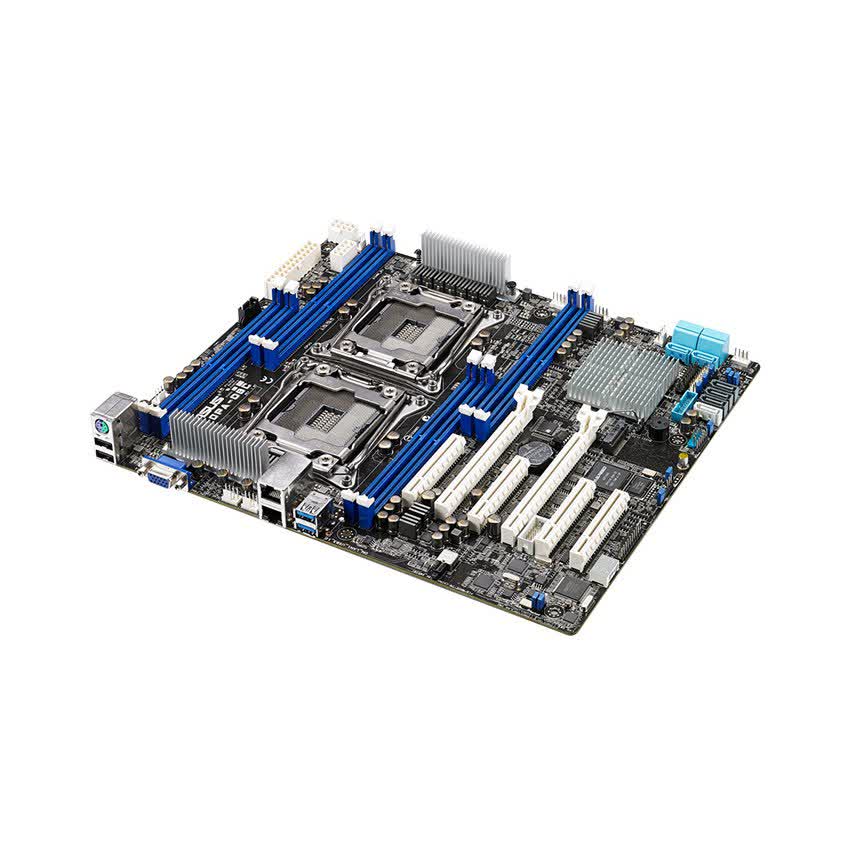

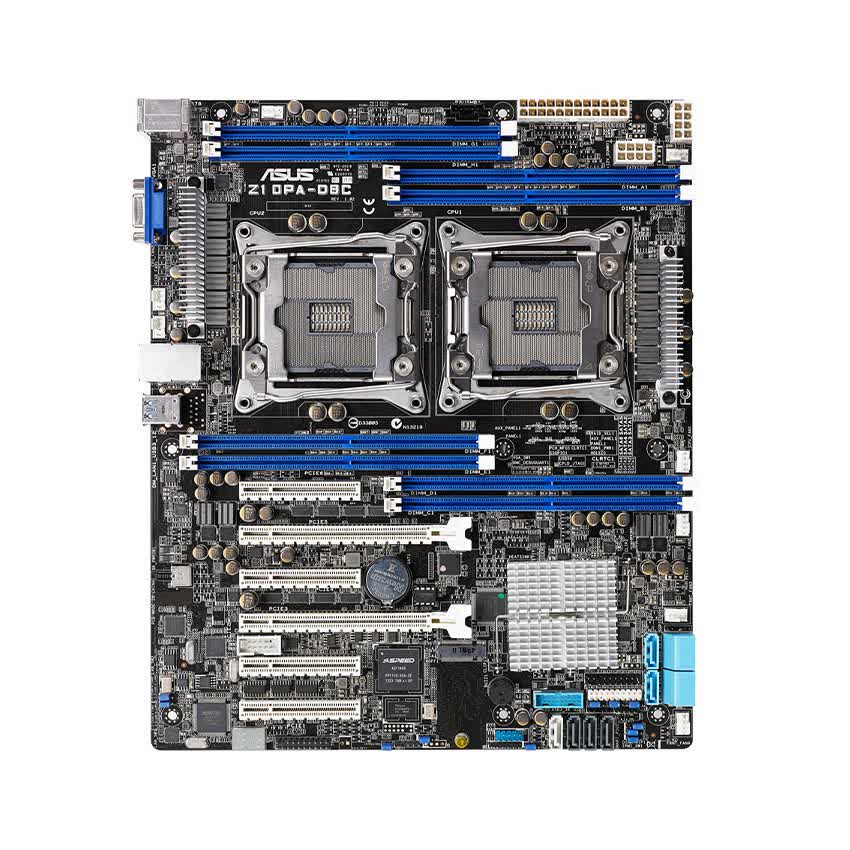

Mainboard ASUS Z10PA-D8C (DUAL CPU WORKSTATION)

Mô tả chi tiết

Tên sản phẩm

ASUS Z10PA-D8C (DUAL CPU WORKSTATION)

Hãng sản xuất

ASUS

Chủng loại

Z10PA-D8C (DUAL CPU WORKSTATION)

CPU hỗ trợ

2 x Socket R3 (LGA 2011-3; Square type 80x80mm)
Intel® Xeon® processor E5-2600 v4 product family
Intel® Xeon® processor E5-2600 v3 product family
QPI 6.4 / 8.0 / 9.6 GT/s

Chipset

Intel® C612 PCH

Bộ nhớ trong

Total Slots : 8 (4-channel per CPU, 4 DIMM per CPU)
Capacity : Maximum up to 512GB LRDIMM
Memory Type :
DDR4 2400 /2133 /1866/1600/1333 RDIMM*
DDR4 2400 /2133 /1866/1600/1333 LRDIMM*
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM

VGA onboard

Aspeed AST1400 with 64MB VRAM

Âm thanh

Khe mở rộng

Total Slot : 6
Slot Location 1 : PCI-E x8 (Gen2 X4 Link)
Slot Location 2 : PCI-E x8 (Gen3 X8 Link)
Slot Location 3 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 4 is occupied
Slot Location 4 : PCI-E x8 (Gen3 X8 Link)
Slot Location 5 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied *
Slot Location 6 : PCI-E x8 (Gen3 X8 Link), MIO supported

Chuẩn lưu trữ

SATA Controller :
Intel® C612
10 x SATA3 6Gb/s ports
or
9 x SATA3 6Gb/s ports + 1 x M.2 connector *1
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card(Optional)
ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)

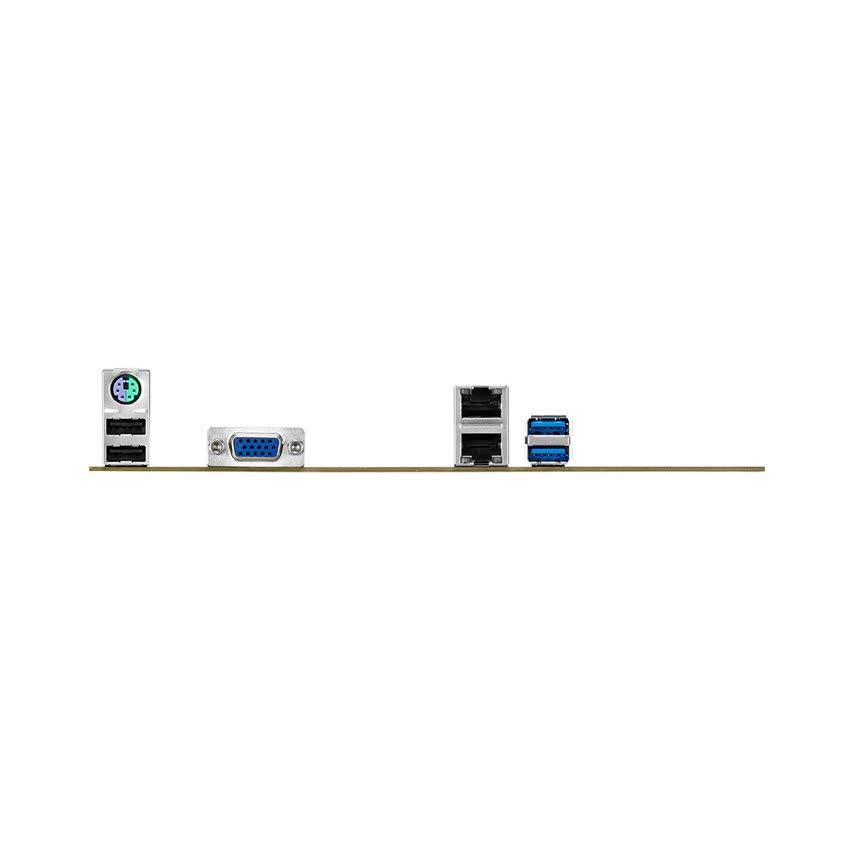

Cổng giao tiếp trước sau

2 x USB 3.0
2 x USB 2.0
1 x VGA Port
2 x GbE LAN
1 x PS/2 KB/Mouse

Kích thước

Phụ kiện đi kèm
