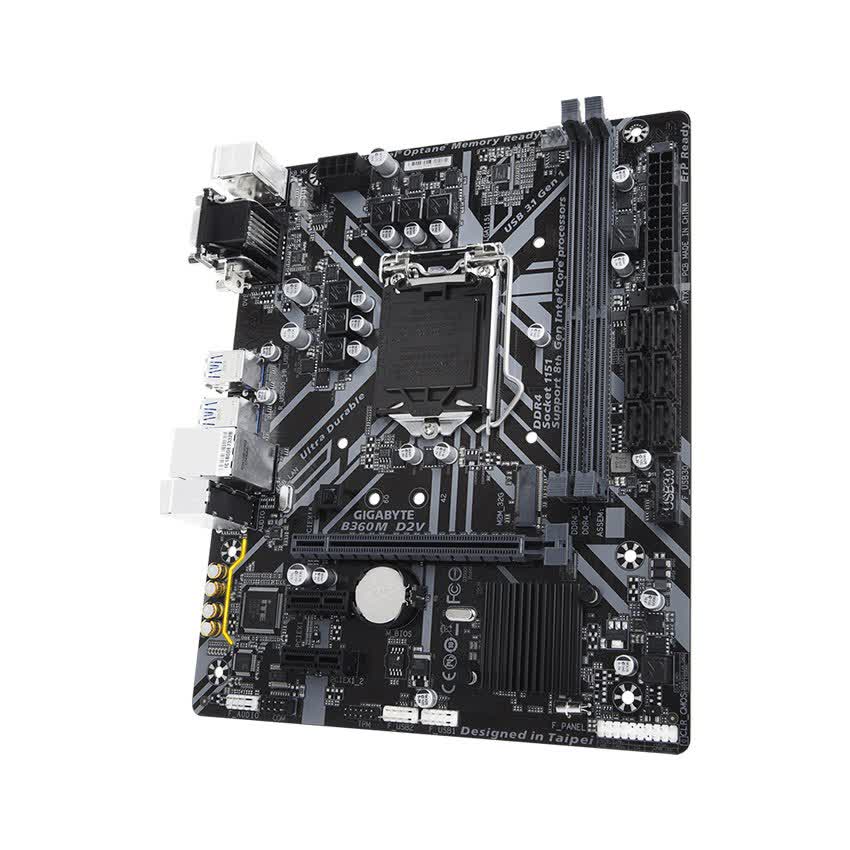

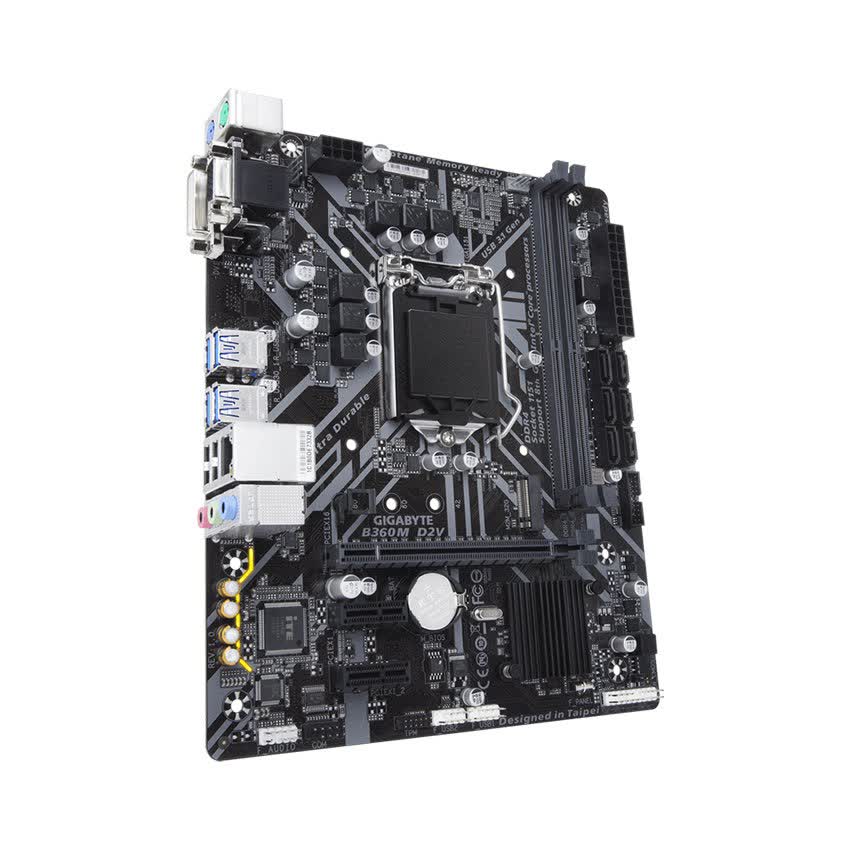

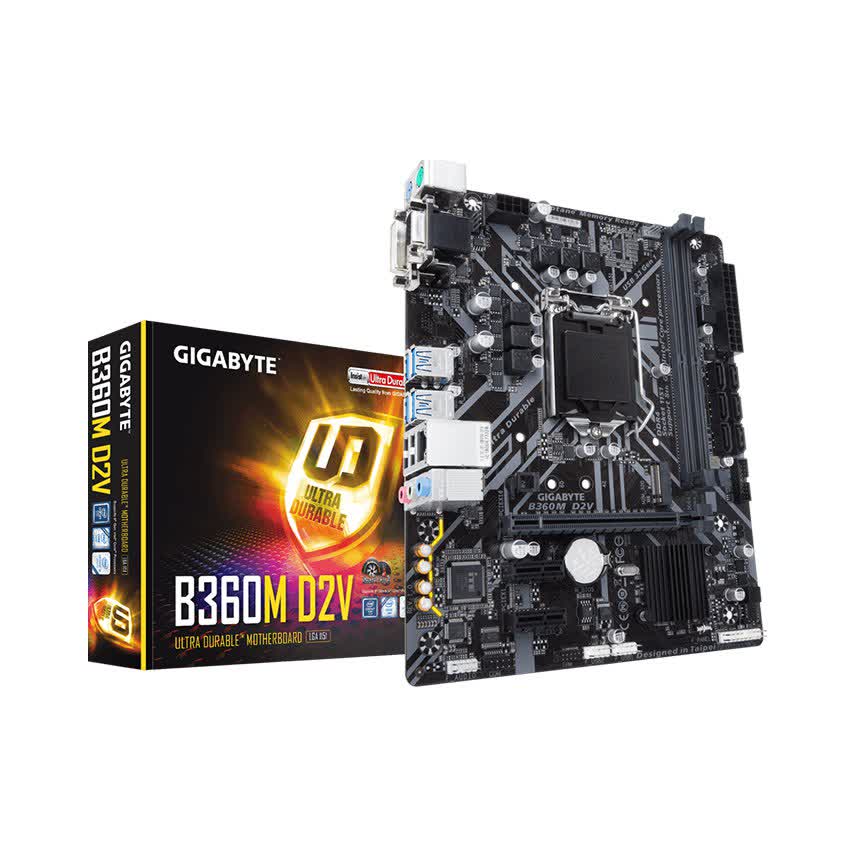

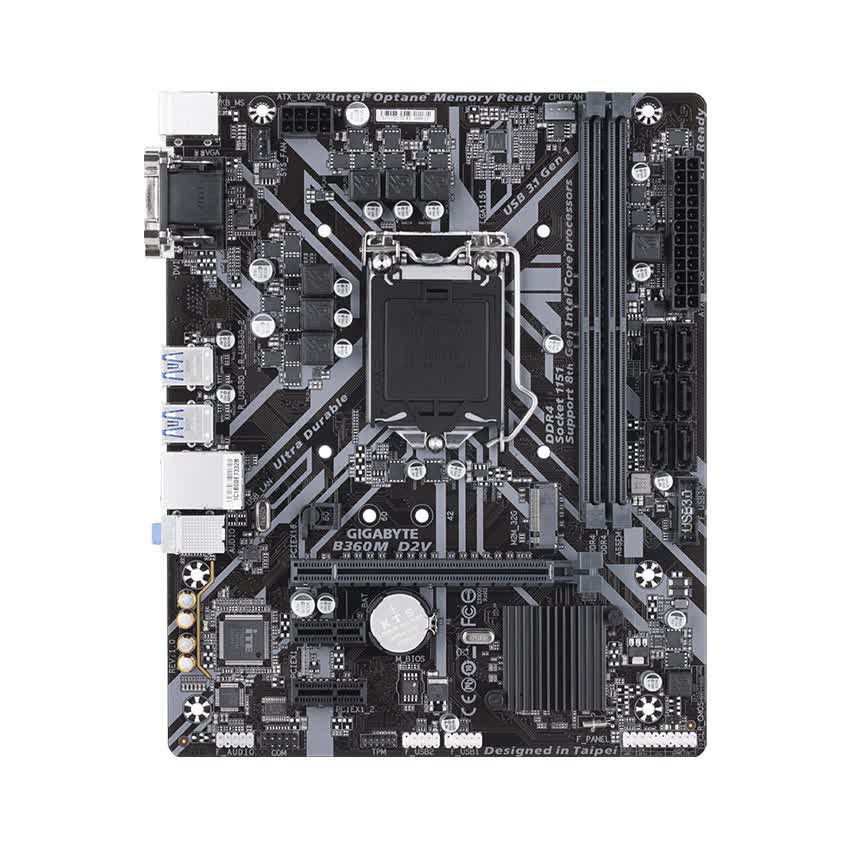

Mainboard Gigabyte B360M-D2V

Tên gọi

B360M D2V

CPU hỗ trợ

Intel® Socket 1151 for 8th Generation Core™ Processors

Chipset / Socket

Intel® B360

Bộ nhớ (RAM)

• 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

• Dual channel memory architecture

• Support for DDR4 2666/2400/2133 MHz memory modules

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules

Công nghệ đa GPU

• AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Khe cắm mở rộng

• 1 x PCI Express x16 slot, running at x16

• 2 x PCI Express x1 slots

LAN / Wireless

• Realtek® GbE LAN chip (10/100/1000 Mbit)

Âm thanh

• Realtek® ALC892 codec

Cổng kết nối (Internal)

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 1 x system fan header

• 6 x SATA 6Gb/s connectors

• 1 x M.2 Socket 3 connector

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB 3.1 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module (TPM) header

• 1 x serial port header

• 1 x Clear CMOS jumper

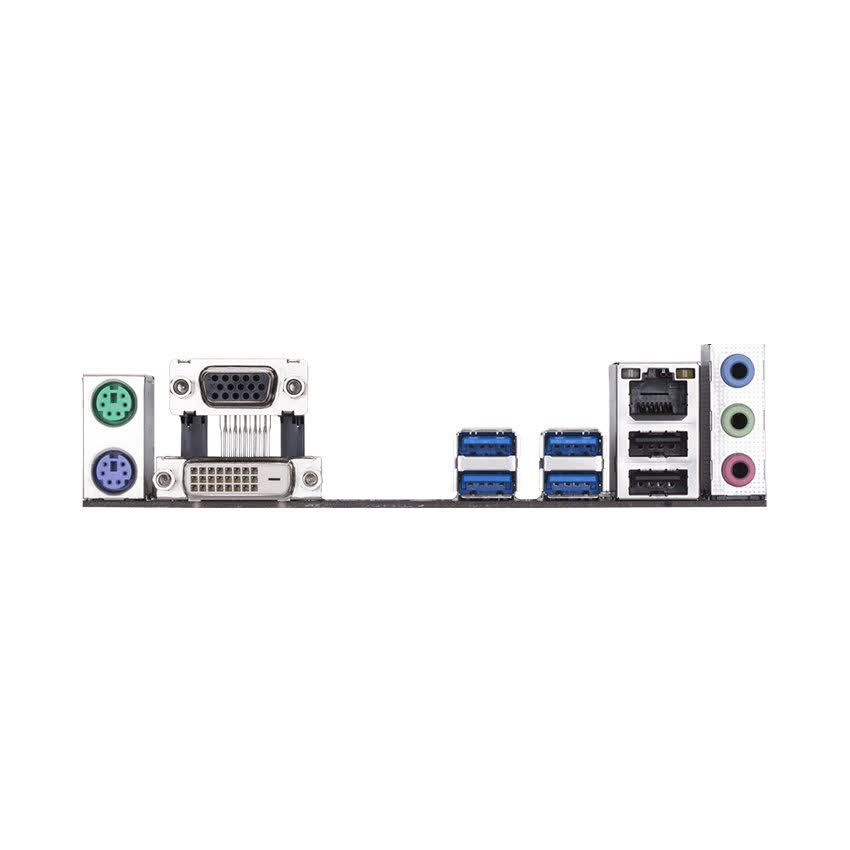

Cổng kết nối (Back Panel)

• 1 x PS/2 mouse port

• 1 x PS/2 Keyboard port

• 1 x D-Sub port

• 1 x DVI-D port

• 4 x USB 3.1 Gen 1 ports

• 2 x USB 2.0/1.1 ports

• 1 x RJ-45 port

• 3 x audio jacks

Công nghệ độc quyền

Support for APP Center
• 3D OSD
• @BIOS
• AutoGreen
• Cloud Station
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• Platform Power Management
• RGB Fusion
• Smart Backup
• Smart Keyboard
• Smart TimeLock
• Smart HUD
• System Information Viewer
• USB Blocker
• V-Tuner

• Support for Q-Flash

• Support for Xpress Install

Phụ kiện đi kèm

• Norton® Internet Security (OEM version)

Hệ điều hành khuyến nghị

• Windows® 10 64-bit

Chuẩn kích cỡ

• mATX Form Factor
