Mainboard ASUS ROG STRIX B360-I GAMING (Intel B360 , Socket 1151, Mini ATX, 2 khe RAM DDR4)

giới thiệu tổng quan Mainboard ASUS ROG STRIX B360-I GAMING (Intel B360 , Socket 1151, Mini ATX, 2 khe RAM DDR4)

♦ Được sản xuất bởi hãng rất nổi tiếng cả trong nước và trên thế giới.
Sản phẩm được sản xuất tại .
Có khối lượng là và kích thước .
Thông số khác của sản phẩm Mainboard ASUS ROG STRIX B360-I GAMING (Intel B360 , Socket 1151, Mini ATX, 2 khe RAM DDR4): 4 x USB 3.0, HDMI (KẾT NỐI TIVI, MÁY CHIẾU...VV...),LAN (RJ45), VGA - KẾT NỐI MÁY CHIẾU, TÍCH HỢP MICROPHONE - HEADPHONE, Camera, Bluetooth

♦ Mainboard ASUS ROG STRIX B360-I GAMING (Intel B360 , Socket 1151, Mini ATX, 2 khe RAM DDR4) với trọng lượng là , nên rất tiện lợi trong quá trình sử dụng, cũng như trong việc đi lại.

Mainboard ASUS ROG STRIX B360-I GAMING (Intel B360 , Socket 1151, Mini ATX, 2 khe RAM DDR4)

CPU	Intel® Socket 1151 for 8th Generation Core™ Processors
	Supports Intel® 14 nm CPU
	Supports Intel® Turbo Boost Technology 2.0
	* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
	* Refer to www.asus.com for CPU support list
Chipset	Intel® B360 Chipset
Memory	2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
	Dual Channel Memory Architecture
	Supports Intel® Extreme Memory Profile (XMP)
	* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
	* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
	** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Graphics	Integrated Graphics Processor- Intel® HD Graphics support
	Multi-VGA output support : HDMI/DisplayPort 1.2 ports
	– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
	– Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
	Maximum shared memory of 1024 MB (for iGPU exclusively)
Expansion Slots	1 x PCIe 3.0/2.0 x16 (x16 mode)
Storage	Intel® B360 Chipset :
	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*1
	4 x SATA 6Gb/s port(s)
	Intel® Optane™ Memory Ready *2
LAN	Intel® I219V
	Anti-surge LANGuard
	ROG GameFirst Technology
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
	– Dual OP Amplifiers
	– Impedance sense for front and rear headphone outputs
	– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
	– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
	– Supports up to 32-Bit/192kHz playback *5
	Audio Feature :
	– SupremeFX Shielding™ Technology
	– Optical S/PDIF out port(s) at back panel
	– Sonic Radar III
	– Sonic Studio III + Sonic Studio Link
USB	Intel® B360 Chipset : *6
	2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)
	Intel® B360 Chipset :
	4 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A + USB Type-CTM, 2 at mid-board)
	Intel® B360 Chipset :
	4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
ROG Exclusive Features	ROG RAMCache II
	ROG CPU-Z
	ROG CloneDrive
	Pre-mounted I/O Shield
	Overwolf
	GameFirst IV
	ROG Aura
ASUS Special Features	Gamer’s Guardian:
	– ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
	– DRAM Overcurrent Protection
	– Stainless Steel Back I/O
	– Highly Durable Components
	– DIGI+ VRM
	– SafeSlot
	AURA :
	– Aura Lighting Control
	– Aura Lighting Effects Synchronization with compatible ASUS ROG devices
	ASUS Exclusive Features :
	– AI Suite 3
	– Ai Charger
	ASUS Quiet Thermal Solution :
	– ASUS Fan Xpert 4
	ASUS EZ DIY :
	– ASUS CrashFree BIOS 3
	– ASUS EZ Flash 3
	ASUS Q-Design :
	– ASUS Q-Shield
	– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
	– ASUS Q-Slot
	– ASUS Q-DIMM

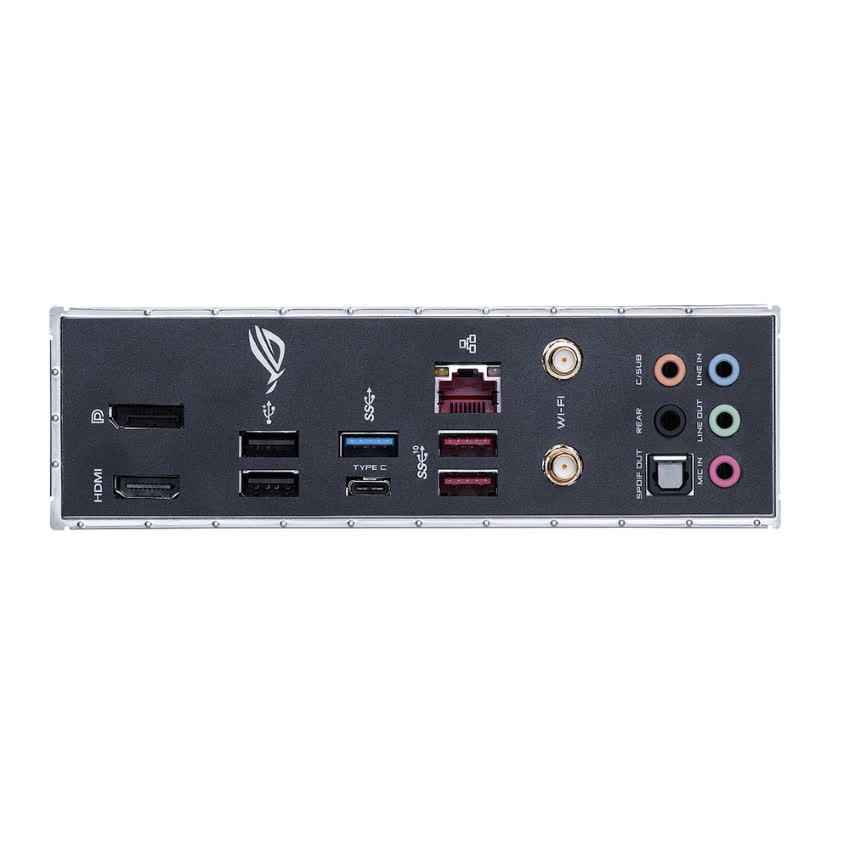

Back I/O Ports	1 x DisplayPort
	1 x HDMI
	2 x USB 3.1 Gen 2 Type-A,
	2 x USB 3.1 Gen 1 (blue) Type-A + USB Type-CTM,
	2 x USB 2.0
	1 x Optical S/PDIF out
	5 x Audio jack(s)
	1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)
	Anti-surge LAN (RJ45) port
Internal I/O Ports	1 x Aura Addressable Strip Header(s)
	1 x AAFP connector
	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
	1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
	1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
	1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
	4 x SATA 6Gb/s connector(s)
	1 x CPU Fan connector(s) (1 x 4 -pin)
	1 x Chassis Fan connector(s) (2 x 4 -pin)
	1 x AIO_PUMP connector
	1 x 24-pin EATX Power connector(s)
	1 x 8-pin ATX 12V Power connector(s)
	1 x Internal speaker connector(s)
	1 x Clear CMOS jumper(s)
	1 x System panel connector
	1 x Thermal sensor connector

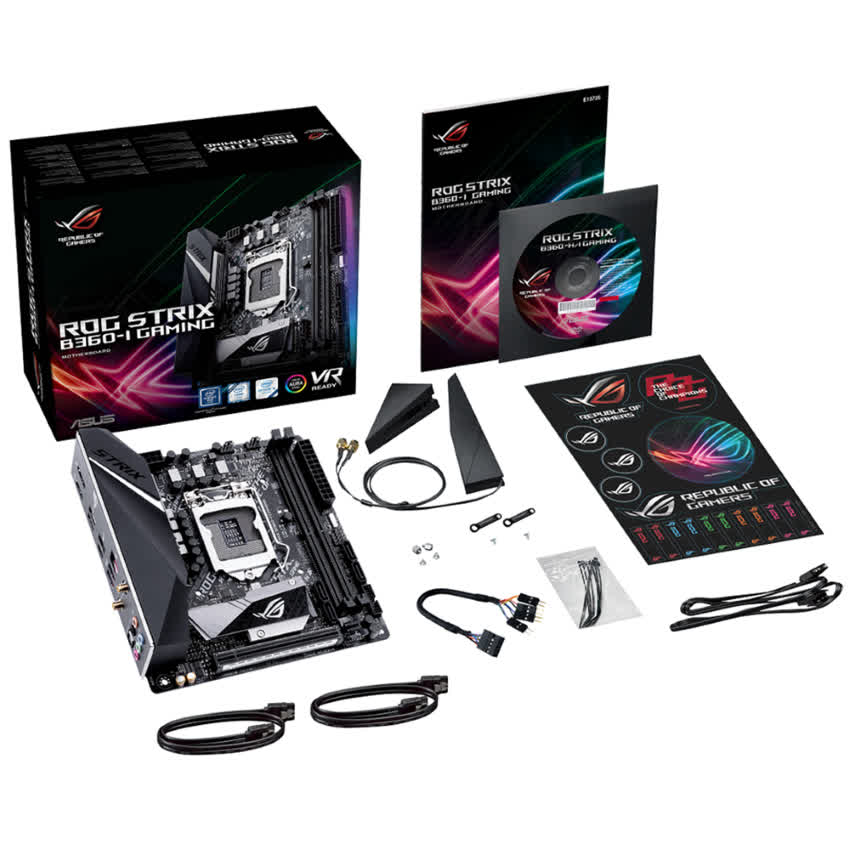

Accessories	User’s manual
	M.2 2242 mounting kit
	2 x SATA 6Gb/s cable(s)
	2 x M.2 Screw Package
	1 x Supporting DVD
	1 x ROG Strix stickers
	1 x Cable ties pack(s)
	1 x Wi-Fi Antenna(s)
	1 x Extension cable for Addressable LED
	1 x Panel cable
BIOS	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF and F9 Search, Secure Erase, User Profile.
Manageability	WOL, PXE
Support DVD contents	Drivers
	ASUS Utilities
	EZ Update
	Anti-virus software (OEM version)
Operating System Support	Windows® 10 64-bit
Form Factor	Mini ITX Form Factor, 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
