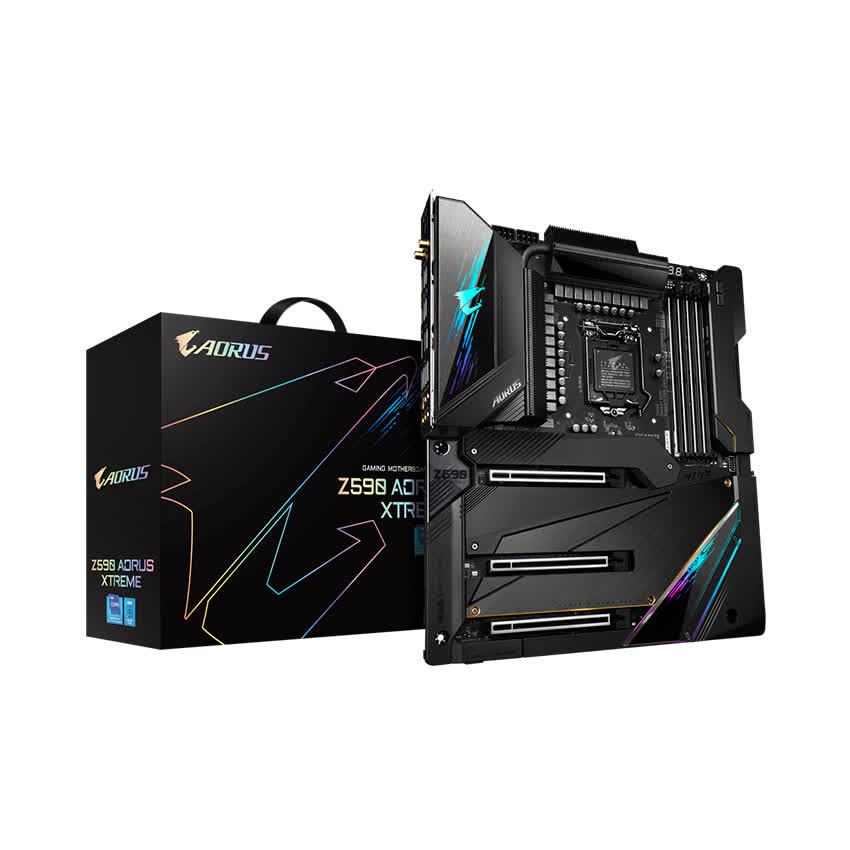

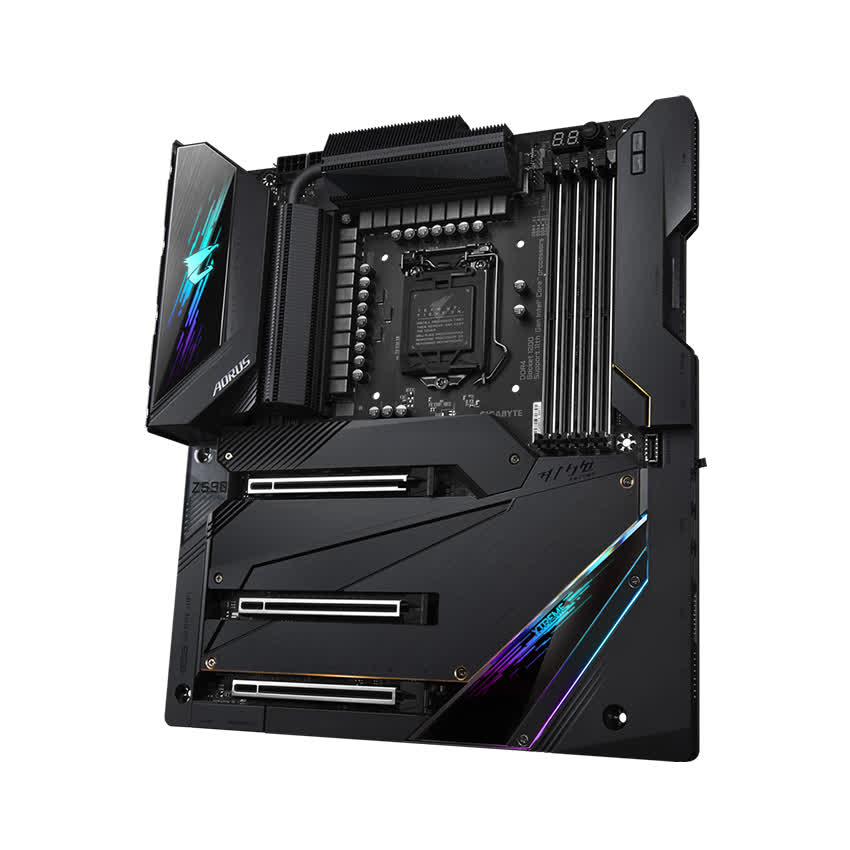

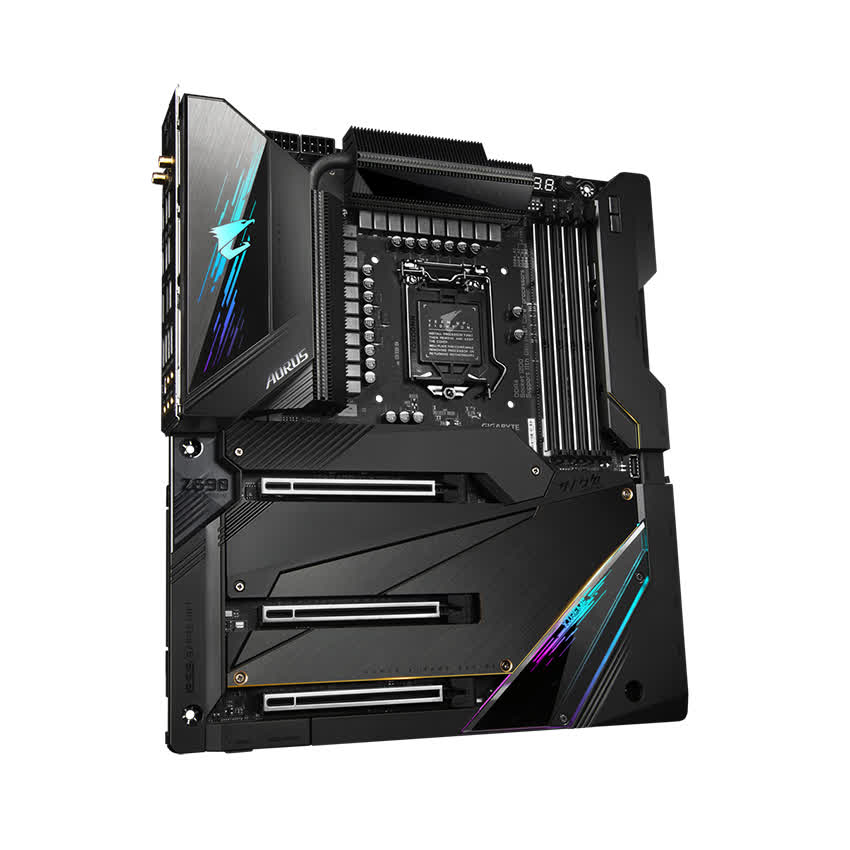

Mainboard Gigabyte Z590 AORUS XTREME (Intel Z590, Socket 1200, ATX, 4 khe Ram DDR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

Z590 AORUS XTREME

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4 x DDR4 DIMM, tối đa 128GB
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)

Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1.      1 x 24-pin ATX main power connector

2.      2 x 8-pin ATX 12V power connectors

3.      1 x CPU fan header

4.      1 x water cooling CPU fan header

5.      6 x system fan headers

6.      2 x system fan/water cooling pump headers

7.      1 x noise detection header

8.      2 x integrated extension cable headers for addressable and RGB LED strips

9.      6 x SATA 6Gb/s connectors

10.  3 x M.2 Socket 3 connectors

11.  1 x front panel header

12.  1 x front panel audio header

13.  1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

14.  1 x USB 3.2 Gen 1 header

15.  1 x USB 2.0/1.1 headers

16.  2 x temperature sensor headers

17.  1 x power button

18.  1 x reset button

19.  1 x OC Ignition button

20.  2 x BIOS switches

21.  Voltage Measurement Points

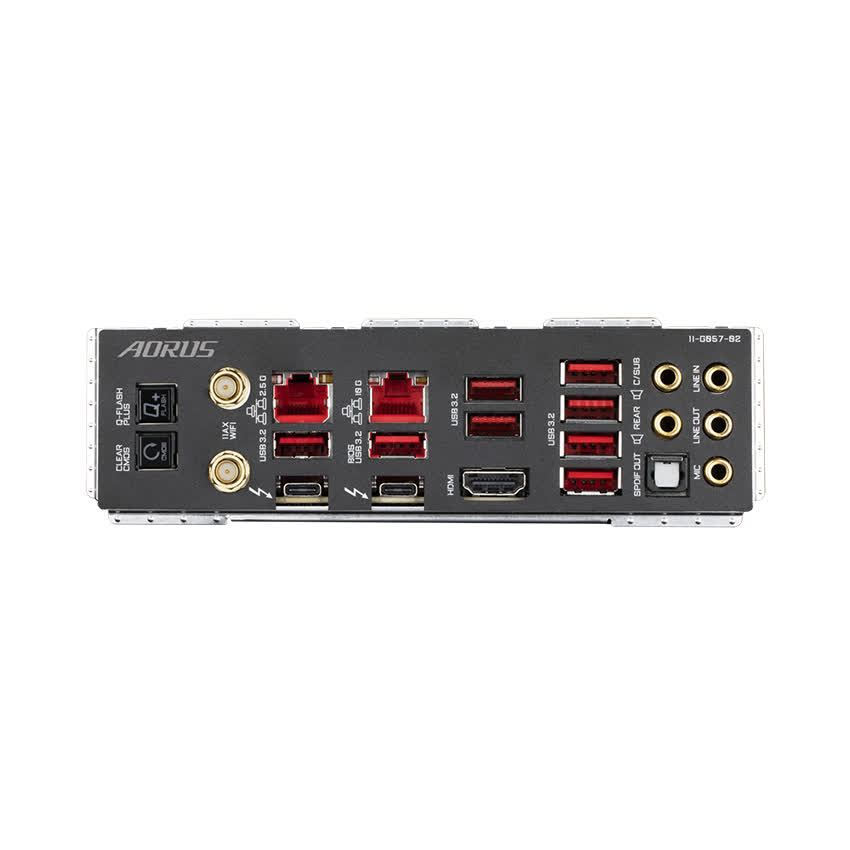

Cổng kết nối (Back Panel)

1.      1 x Q-Flash Plus button

2.      1 x Clear CMOS button

3.      2 x SMA antenna connectors (2T2R)

4.      2 x Thunderbolt™ 4 connector (USB Type-C® port, with USB 3.2 Gen 2 support)

5.      8 x USB 3.2 Gen 2 Type-A ports (red)

6.      1 x HDMI port

7.      2 x RJ-45 port

8.      1 x optical S/PDIF Out connector

9.      5 x audio jacks

LAN / Wireless

LAN:
1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1)
1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2

Intel® Wi-Fi 6 AX201:
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Kích cỡ

E-ATX Form Factor
30.5 cm x 27cm
