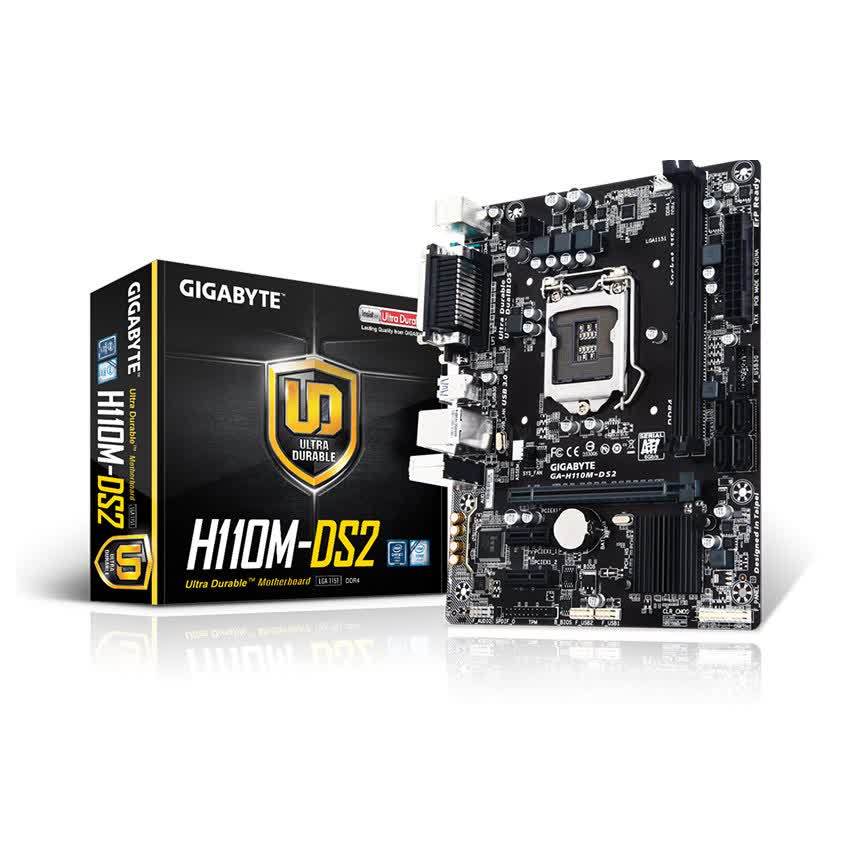

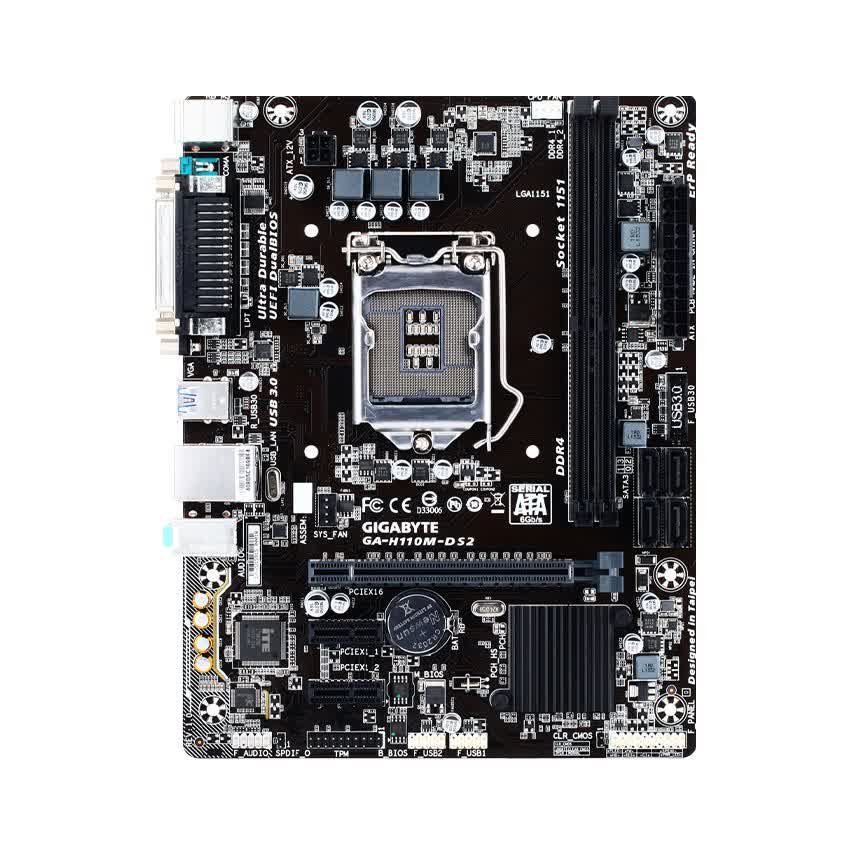

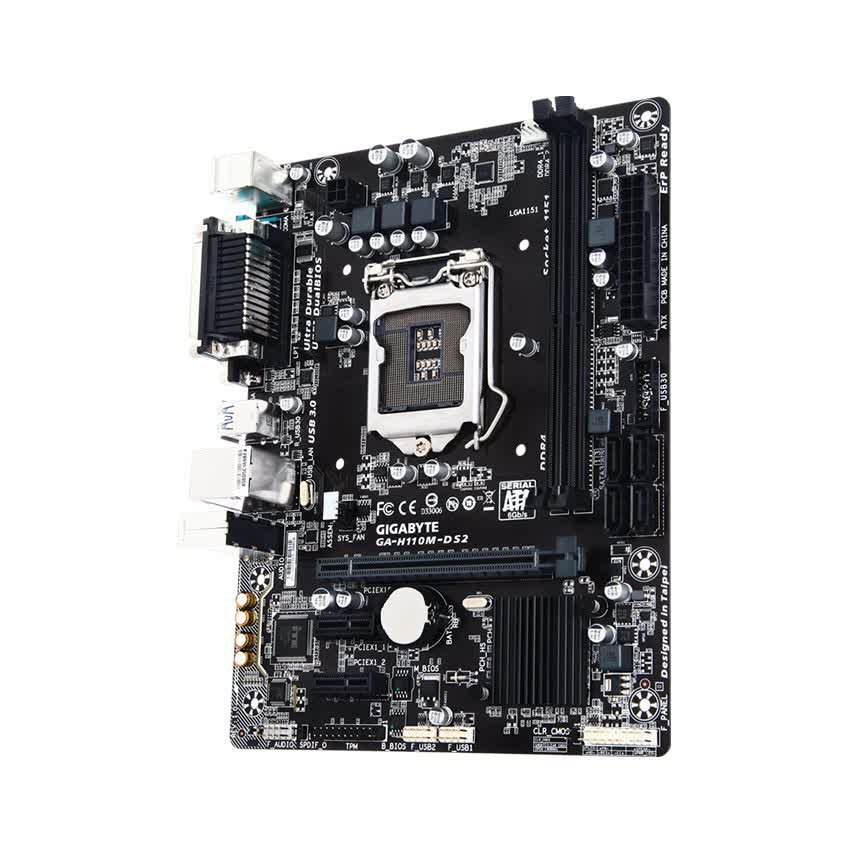

Mainboard GIGABYTE H110M-DS2

Mô tả chi tiết

Hãng sản xuất

GIGABYTE

Chủng loại

H110M-DS2

CPU hỗ trợ

Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

L3 cache varies with CPU

Chipset

Intel® H110 Express Chipset

Bộ nhớ trong

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR4 2133 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

VGA onboard

Integrated Graphics Processor - Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

Maximum shared memory of 512 MB

Âm thanh

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

Khe mở rộng

1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

2 x PCI Express x1 slots

(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Chuẩn lưu trữ

Chipset:

4 x SATA 6Gb/s connectors

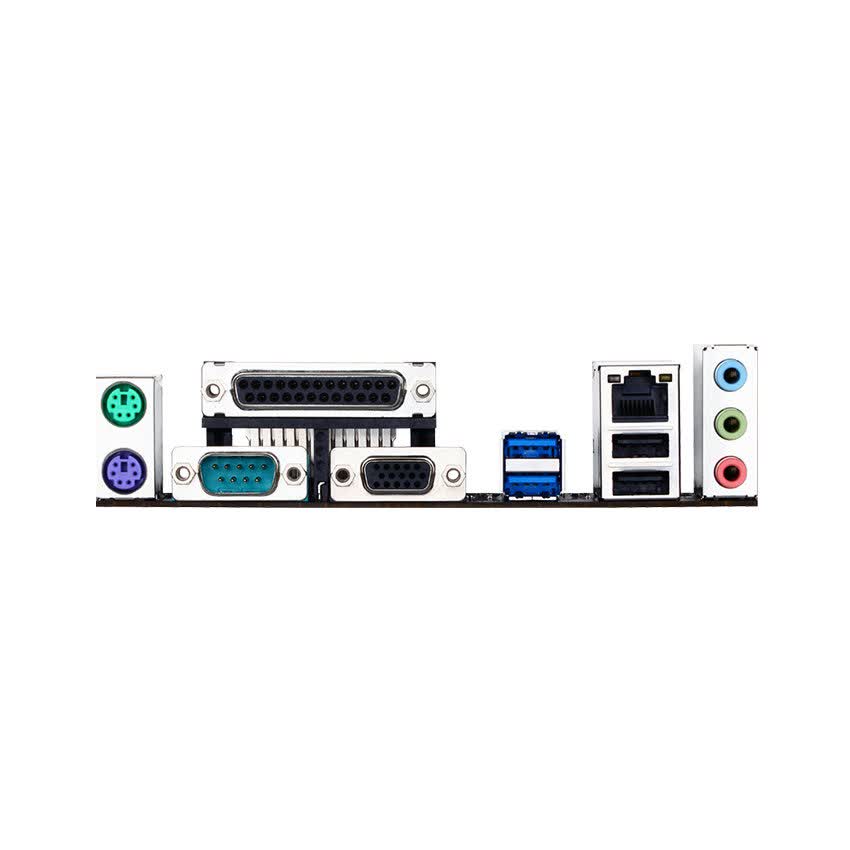

Cổng giao tiếp trước và sau

1 x PS/2 mouse port

1 x PS/2 Keyboard port

1 x parallel port

1 x serial port

1 x D-Sub port

2 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

Công nghệ tích hợp

Support for APP Center

* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.

3D OSD

@BIOS

AutoGreen

Cloud Station

EasyTune

Fast Boot

Smart TimeLock

Smart Keyboard

Smart Backup

System Information Viewer

USB Blocker

Support for Q-Flash

Support for Smart Switch

Support for Xpress Install

Kích thước

Micro ATX Form Factor; 22.6cm x 17.4cm

Phụ kiện đi kèm

Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main
