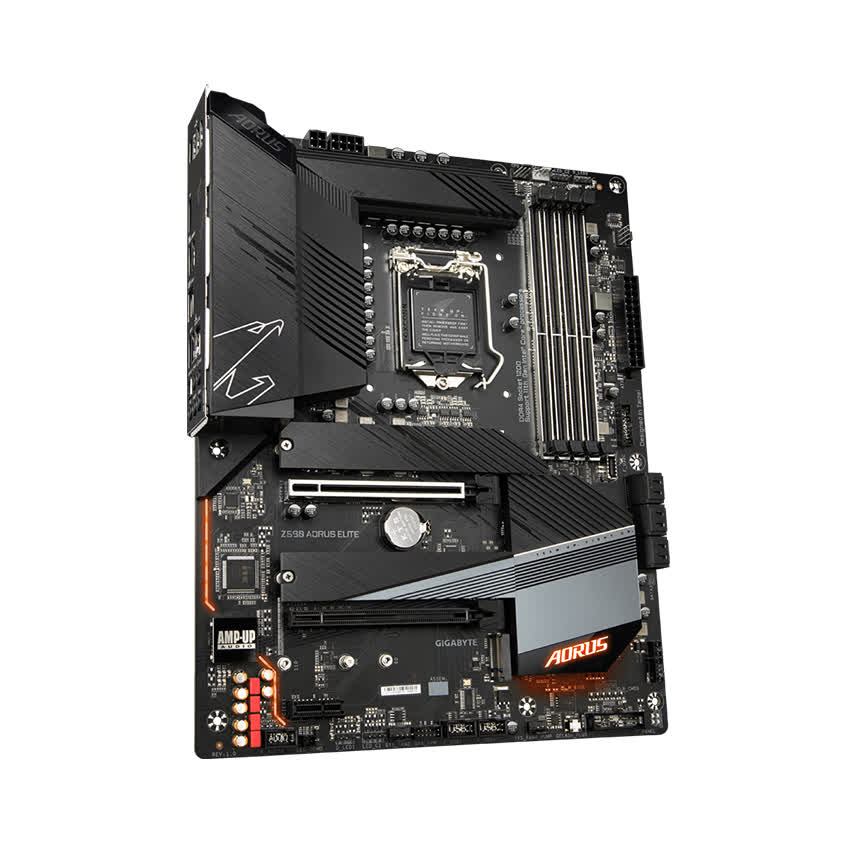

Mainboard Gigabyte Z590 AORUS ELITE (Intel Z590, Socket 1200, ATX, 4 khe Ram DDR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

Z590 AORUS ELITE

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4 x DDR4 DIMM, tối đa 64GB
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1.      1 x 24-pin ATX main power connector

2.      1 x 8-pin ATX 12V power connector

3.      1 x 4-pin ATX 12V power connector

4.      1 x CPU fan header

5.      1 x water cooling CPU fan header

6.      3 x system fan headers

7.      1 x system fan/water cooling pump header

8.      2 x addressable LED strip headers

9.      2 x RGB LED strip headers

10.  6 x SATA 6Gb/s connectors

11.  3 x M.2 Socket 3 connectors

12.  1 x front panel header

13.  1 x front panel audio header

14.  1 x USB Type-C® header, with USB 3.2 Gen 2 support

15.  1 x USB 3.2 Gen1 header

16.  2 x USB 2.0/1.1 headers

17.  2 x Thunderbolt™ add-in card connectors

18.  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)

19.  1 x Clear CMOS jumper

20.  1 x Q-Flash Plus button

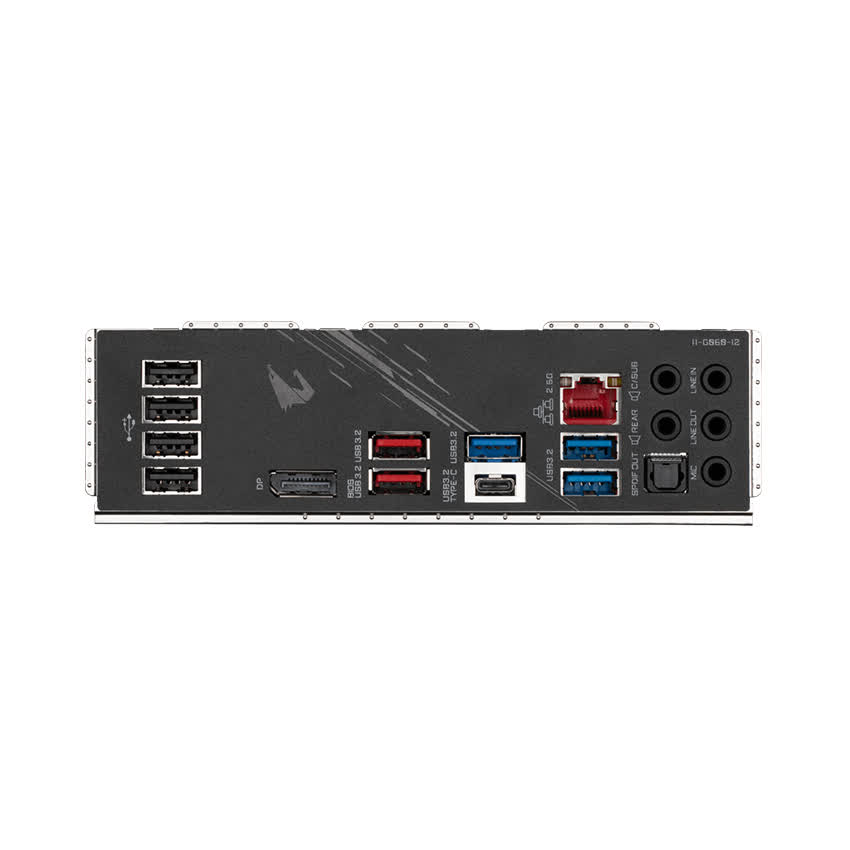

Cổng kết nối (Back Panel)

1.      1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

2.      2 x USB 3.2 Gen 2 Type-A ports (red)

3.      3 x USB 3.2 Gen 1 ports

4.      4 x USB 2.0/1.1 ports

5.      1 x DisplayPort

6.      1 x RJ-45 port

7.      1 x optical S/PDIF Out connector

8.      5 x audio jacks

LAN / Wireless

Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Kích cỡ

ATX Form Factor
30.5 cm x 24.4cm
