Mainboard ASUS PRIME TRX40-PRO (AMD TRX40 ,Socket sTRX4, ATX, 8 khe RAM DDR4)

giới thiệu tổng quan Mainboard ASUS PRIME TRX40-PRO (AMD TRX40 ,Socket sTRX4, ATX, 8 khe RAM DDR4)

♦ Được sản xuất bởi hãng rất nổi tiếng cả trong nước và trên thế giới.
Sản phẩm được sản xuất tại .
Có khối lượng là và kích thước .
Thông số khác của sản phẩm Mainboard ASUS PRIME TRX40-PRO (AMD TRX40 ,Socket sTRX4, ATX, 8 khe RAM DDR4): 4 x USB 3.0, HDMI (KẾT NỐI TIVI, MÁY CHIẾU...VV...),LAN (RJ45), VGA - KẾT NỐI MÁY CHIẾU, TÍCH HỢP MICROPHONE - HEADPHONE, Camera, Bluetooth

♦ Mainboard ASUS PRIME TRX40-PRO (AMD TRX40 ,Socket sTRX4, ATX, 8 khe RAM DDR4) với trọng lượng là , nên rất tiện lợi trong quá trình sử dụng, cũng như trong việc đi lại.

Mainboard ASUS PRIME TRX40-PRO (AMD TRX40 ,Socket sTRX4, ATX, 8 khe RAM DDR4)

CPU	AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors Refer to www.asus.com for CPU support list
Chipset	Build in AMD TRX40
Bộ nhớ	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
	8 x DIMM, Max. 256GB, DDR4 3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Multi-GPU Support	Supports NVIDIA® Quad-GPU SLI® Technology
	Supports NVIDIA® 2-Way SLI® Technology
	Supports AMD Quad-GPU CrossFireX™ Technology
	Supports AMD 2-Way CrossFireX Technology
Expansion Slots	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
	3 x PCIe 4.0 x16 (x16/x16/x16) *
	AMD TRX40 chipset
	1 x PCIe 4.0 (x4 mode)
Storage	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :
	2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
	AMD TRX40 chipset :
	1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
	8 x SATA 6Gb/s port(s),
	Support Raid 0, 1, 10
LAN	Intel® I211-AT
	ASUS Turbo LAN Utility
	ASUS LAN Guard
Audio	Realtek® ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
	- Impedance sense for front and rear headphone outputs
	- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
	- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in)
	Audio Feature :
	- DTS X®:Ultra
	- Optical S/PDIF out port(s) at back panel
	Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
	- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
	#NAME?
	- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports	AMD Ryzen™ Threadripper™ Processors :
	4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)
	AMD TRX40 chipset :
	1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board)
	AMD TRX40 chipset :
	6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board)
	AMD TRX40 chipset :
	2 x USB 2.0 port(s) (2 at mid-board)
	ASMedia® USB 3.2 Gen 1 controller :
	4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A)
	GL852G USB Hub :
	2 x USB 2.0 port(s) (2 at mid-board)
Special Features	ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
	5Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
	ASUS SafeSlot - Protect your graphics card Investment
	AURA :
	- Aura RGB Strip Headers
	- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
	- Addressable Gen 2 Header
	ASUS Exclusive Features :
	- AI Suite 3
	- Ai Charger
	- Onboard Button : Power
	- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
	- Turbo LAN
	- Crystal Sound 3
	- Armoury Crate
	- Pre-mounted I/O Shield
	ASUS Quiet Thermal Solution :
	- Stylish Design Heat-pipe solution
	- Stylish Fanless Design with M.2 Heat-sink solution
	- ASUS Fan Xpert 4
	ASUS EZ DIY :
	- ASUS EZ Flash 3
	- ASUS USB BIOS FlashBack™
	- ASUS UEFI BIOS EZ Mode
	- Multi-language BIOS
	ASUS Q-Design :
	- ASUS Q-Code
	- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
	- ASUS Q-Slot
	- ASUS Q-DIMM
	- ASUS Q-Connector

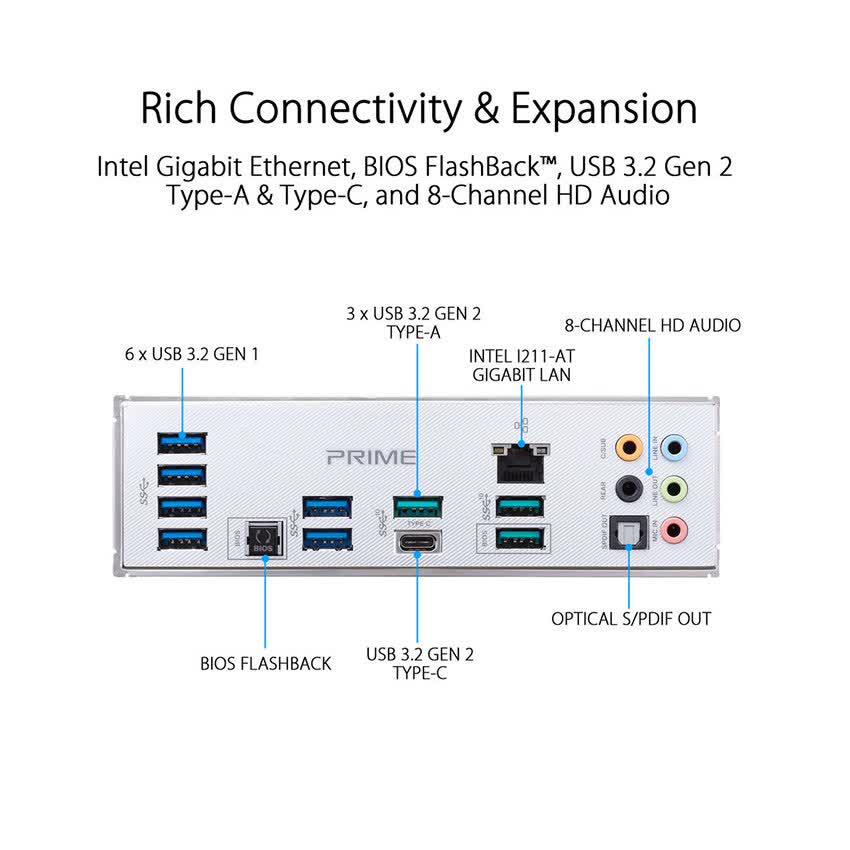

Back I/O Ports	1 x LAN (RJ45) port(s)
	4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack™)
	6 x USB 3.2 Gen 1 (blue)
	1 x Optical S/PDIF out
	5 x Audio jack(s)
	1 x USB BIOS FlashBack™ Button(s)
Internal I/O Ports	1 x Q_Code
	2 x Aura RGB Strip Header(s)
	2 x Addressable Gen 2 header(s)
	2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
	2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
	2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
	1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
	1 x M.2 with E key for Wi-Fi module
	8 x SATA 6Gb/s connector(s)
	1 x CPU Fan connector(s) (1 x 4 -pin)
	1 x CPU OPT Fan connector(s) (1 x 4 -pin)
	3 x Chassis Fan connector(s) (3 x 4 -pin)
	1 x AIO_PUMP connector (1 x 4 -pin)
	1 x W_PUMP+ connector (1 x 4 -pin)
	1 x 24-pin EATX Power connector(s)
	2 x 8-pin ATX 12V Power connector(s)
	1 x Front panel audio connector(s) (AAFP)
	1 x System panel(s) (Q-Connector) x With flexkey function
	1 x Thermal sensor connector(s)
	1 x Power-on button(s)
	1 x Clear CMOS jumper(s)
	1 x Node Connector(s)
	1 x USB 3.2 Gen 2 front panel connector
BIOS	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Manageability	WfM 2.0, WOL by PME, PXE
Hệ điều hành	Support for Windows 10 64-bit
Kích Thước	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
