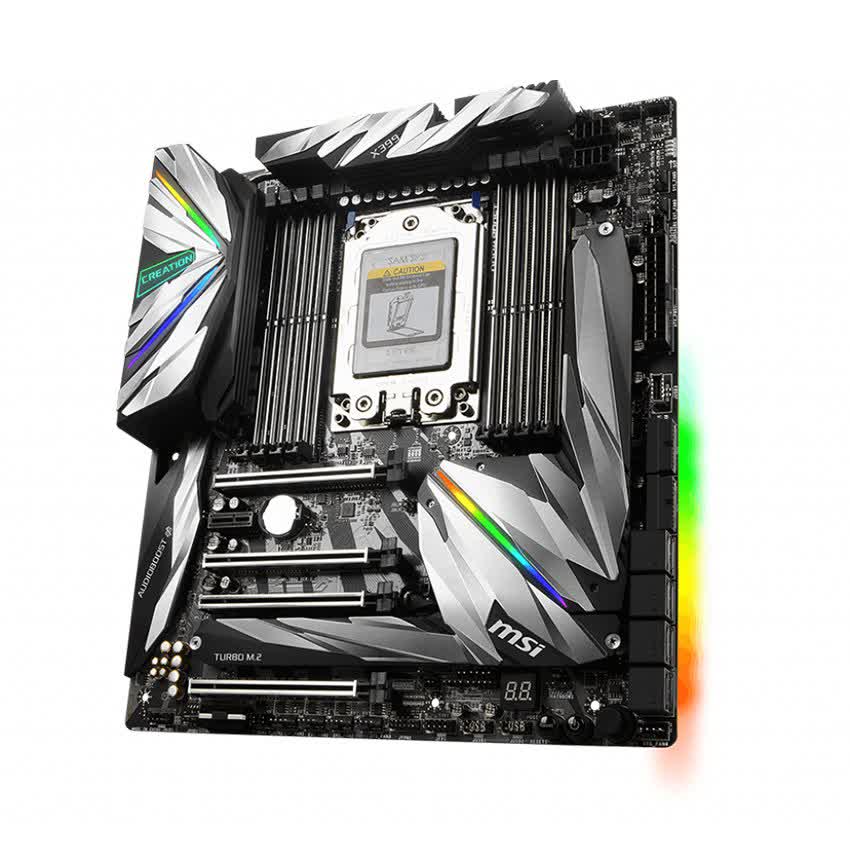

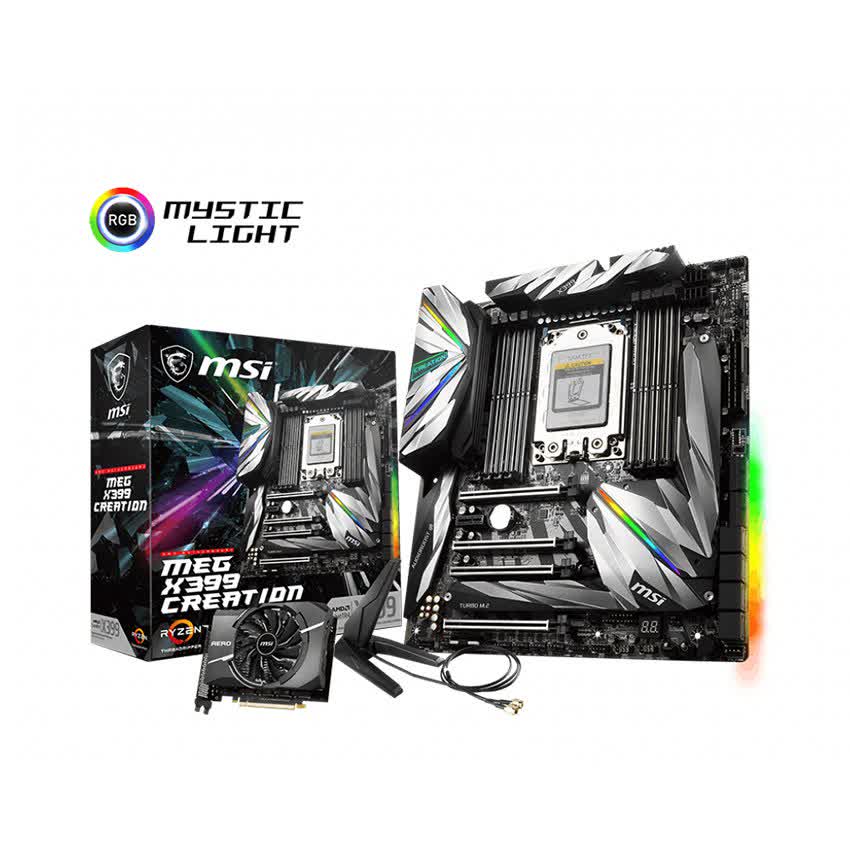

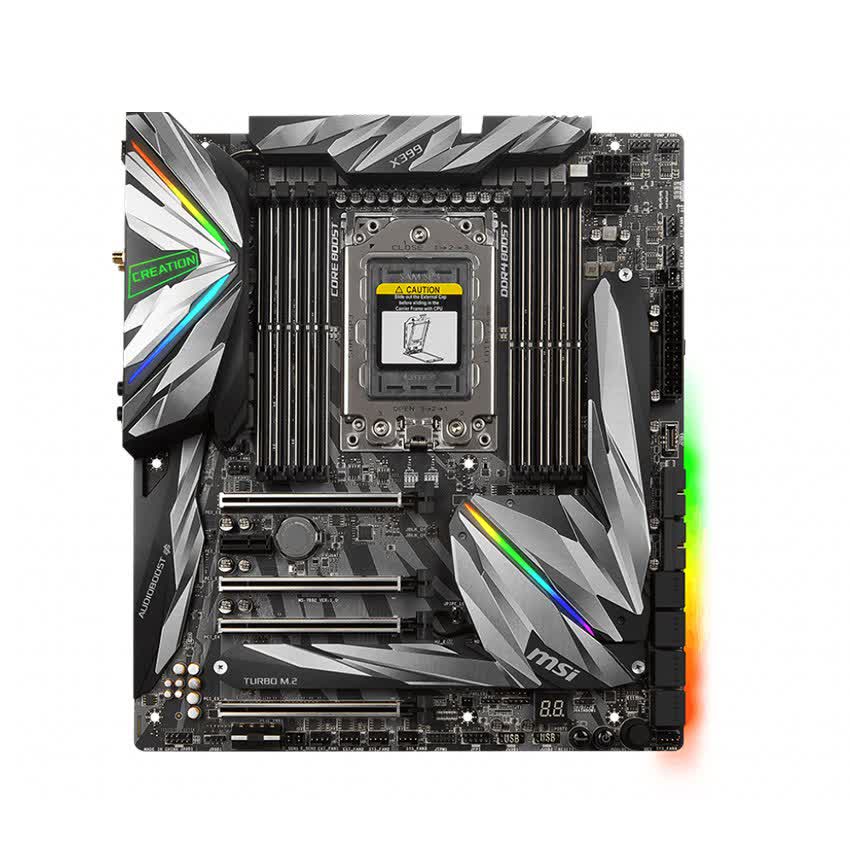

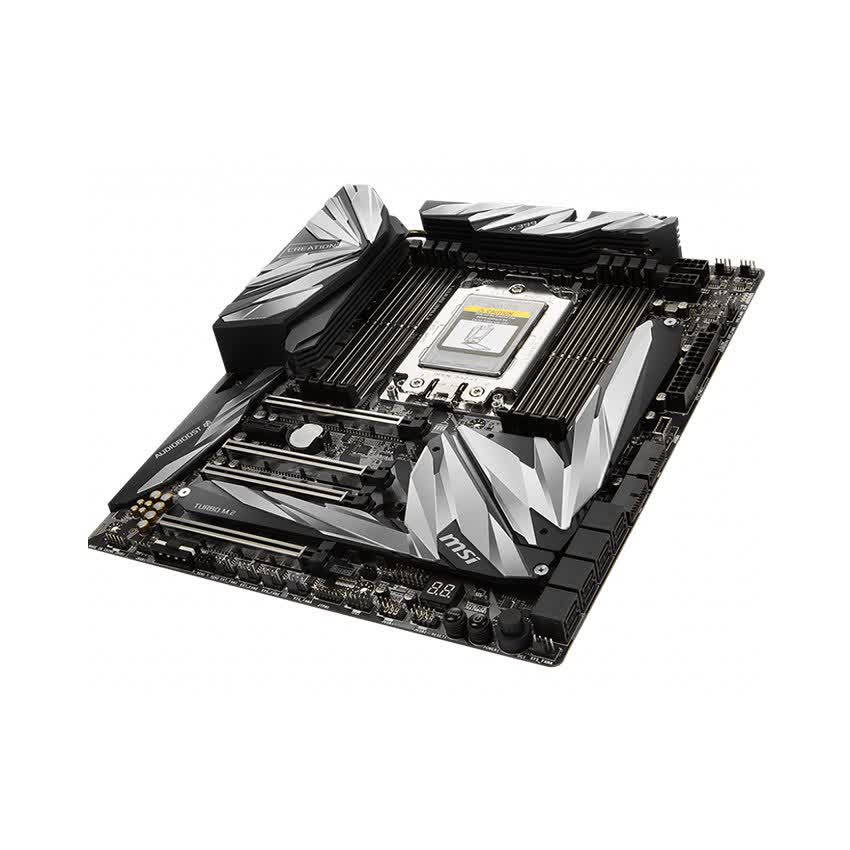

Mainboard MSI MEG X399 CREATION

Mô tả chi tiết

Hãng sản xuất

MSI

Chủng loại

MEG X399 CREATION

CPU hỗ trợ

RYZEN® THREADRIPPERTM Series Processors

Chipset

AMD® X399 Chipset

Bộ nhớ trong

- Quad Channel memory supports 2133/2400/2667(nonOC-by JEDEC)/2667(OC)/2800(OC)/2933(OC)/3066(OC)/3200(OC)/3333(OC)/3466(OC)/3600+(OC)*

VGA onboard

Âm thanh

Realtek® ALC1220 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Khe mở rộng

2x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)

2x PCIe 3.0 x8 slots (PCIE_3, PCIE_5)

1x PCIE 2.0 x1 Slot

Supports 3-Way NVIDIA® SLI™ Technology

Supports 3-Way AMD® CrossFire™ Technology

Chuẩn lưu trữ

AMD® X399 Chipset

8 x SATA 6Gb/s ports

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

AMD® CPU

3 x M.2 ports (Key M)

Supports up to PCIe 3.0 x4 and SATA 6Gb/s

M2_1, M2_3 slots support 2242/ 2260 /2280 storage devices

M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices

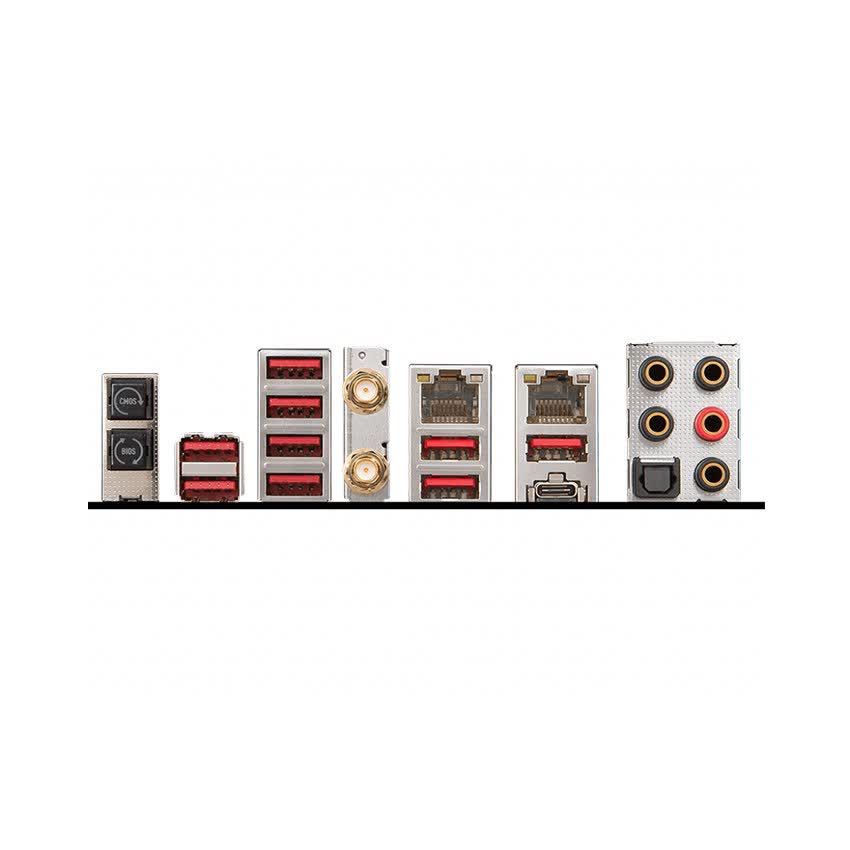

Cổng giao tiếp

Clear CMOS Button

USB 3.1 Gen1 Ports x 8

Intel® WiFi/ Bluetooth Module

Dual Intel® LAN Ports

HD Audio Connectors

BIOS FLASHBACK+

AMD Turbo USB 3.1 Gen 1 Type A + C

Optical S/PDIF-Out

Công nghệ tích hợp

Kích thước

12 in. x 10.7 in. (30.4 cm x 27.2 cm)

E-ATX Form Factor

Phụ kiện đi kèm
