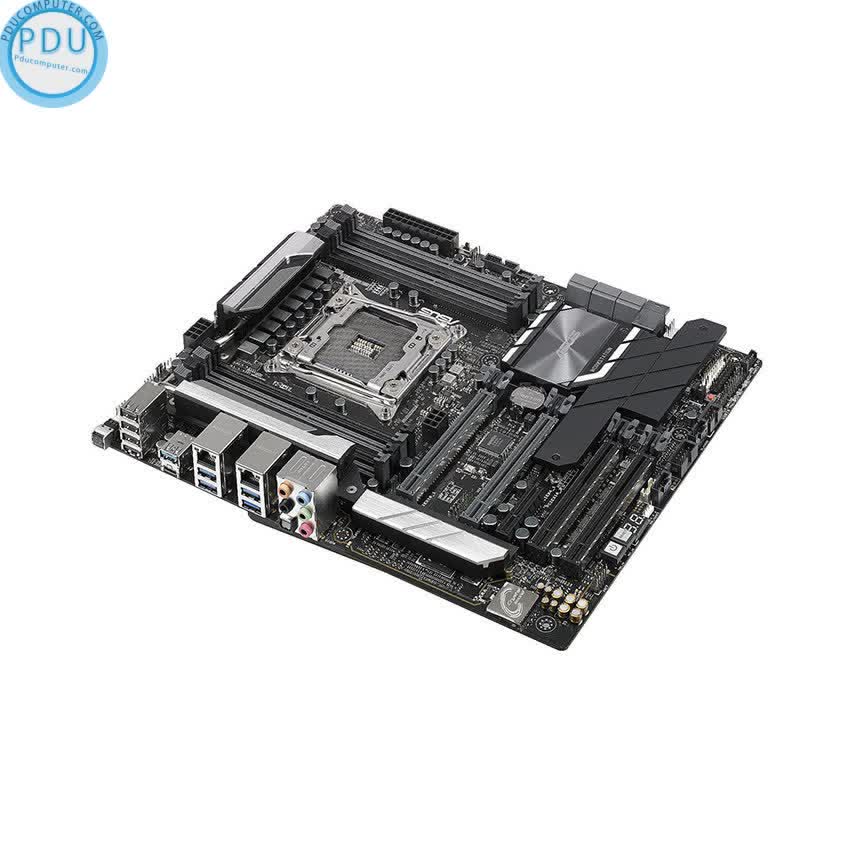

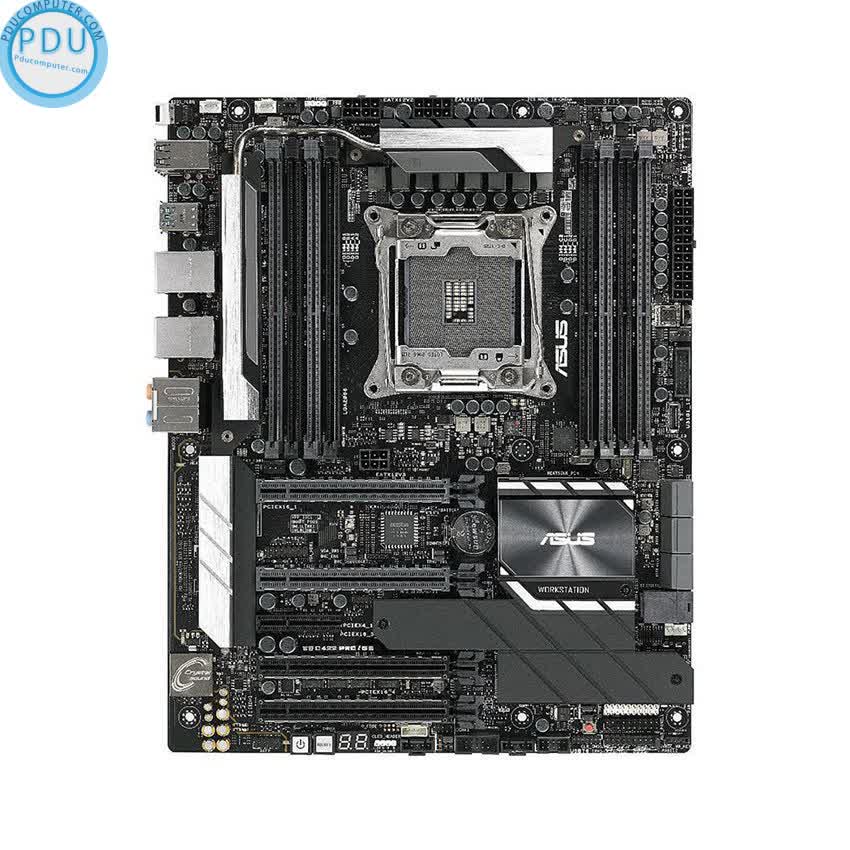

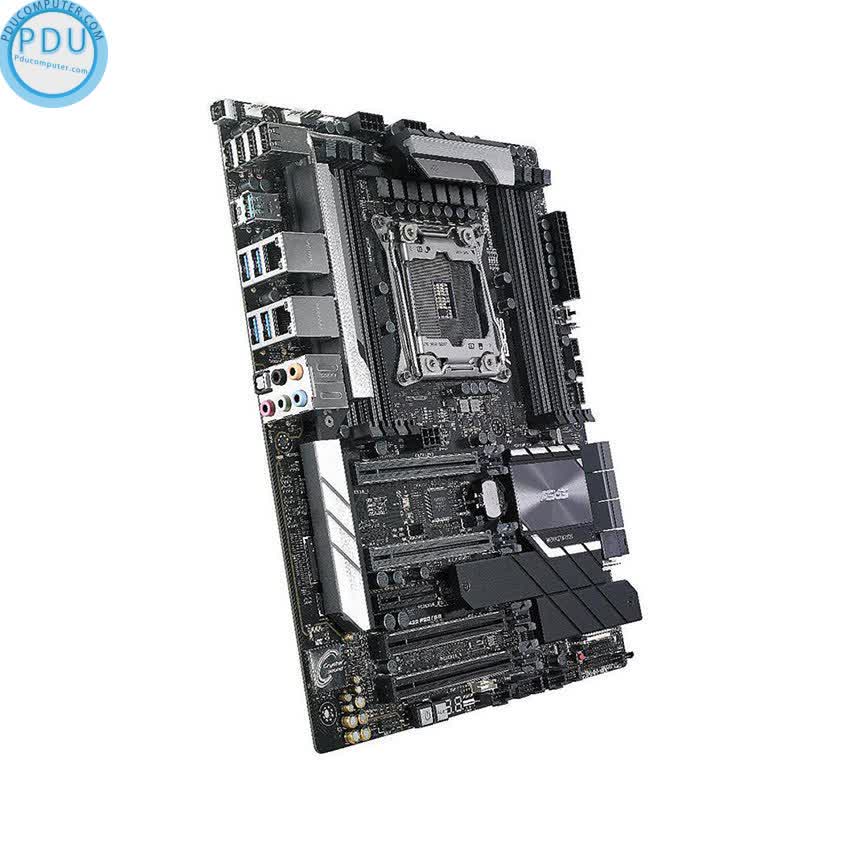

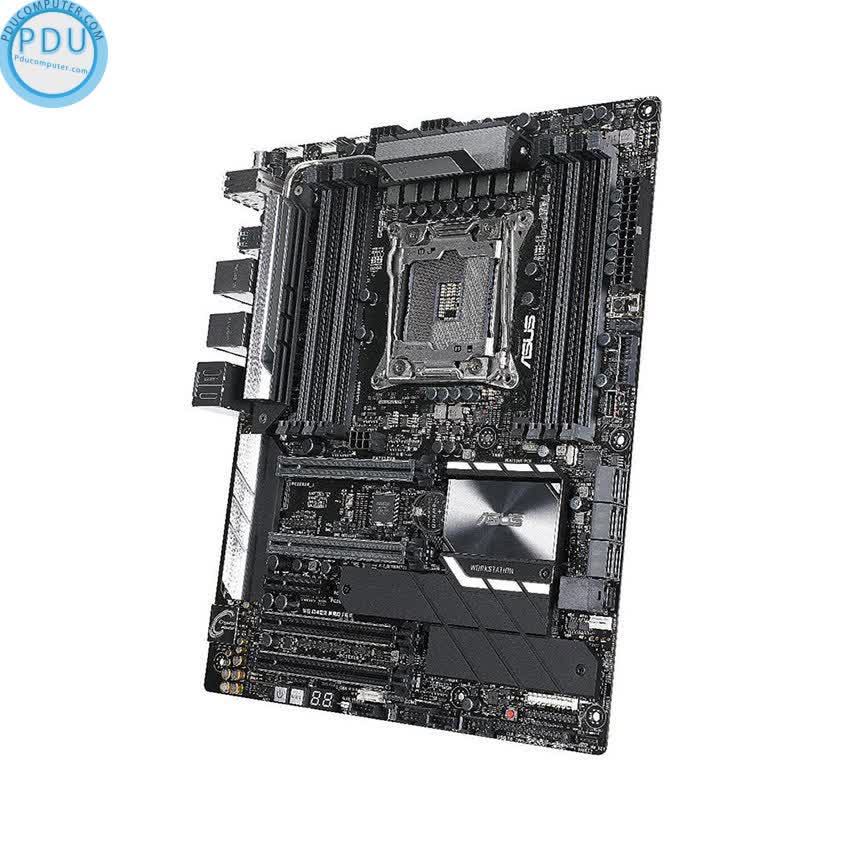

Mainboard ASUS WS C422 PRO/SE

Mô tả chi tiết – MAINBOARD

Hãng sản xuất

Asus

Chủng loại

WS C422 PRO/SE

CPU hỗ trợ

Intel® Xeon® W

Chipset

Intel C422 chipset

Bộ nhớ trong

8 x DIMM, Max. 512GB, DDR4 2666/2400/2133 MHz RDIMM, LR-DIMM Memory

Quad Channel Memory Architecture

VGA onboard

Âm thanh

Realtek® ALC S1220A 8-Channel High Definition Audio CODEC

Khe mở rộng

48-Lane CPU

2 x PCIe 3.0 x16 (x16 mode)

2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)

1 x PCIe 3.0 x4 (x4 mode)

Supports NVIDIA® 3-Way SLI™ Technology

Supports AMD 3-Way CrossFireX™ Technology

Chuẩn lưu trữ

6 x SATA 6Gbs

1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)

1 x U.2 connectorSupport Raid 0, 1, 10

Intel® Rapid Storage Technology Enterprise supports Intel® Virtual RAID (VROC) support for CPU RAID

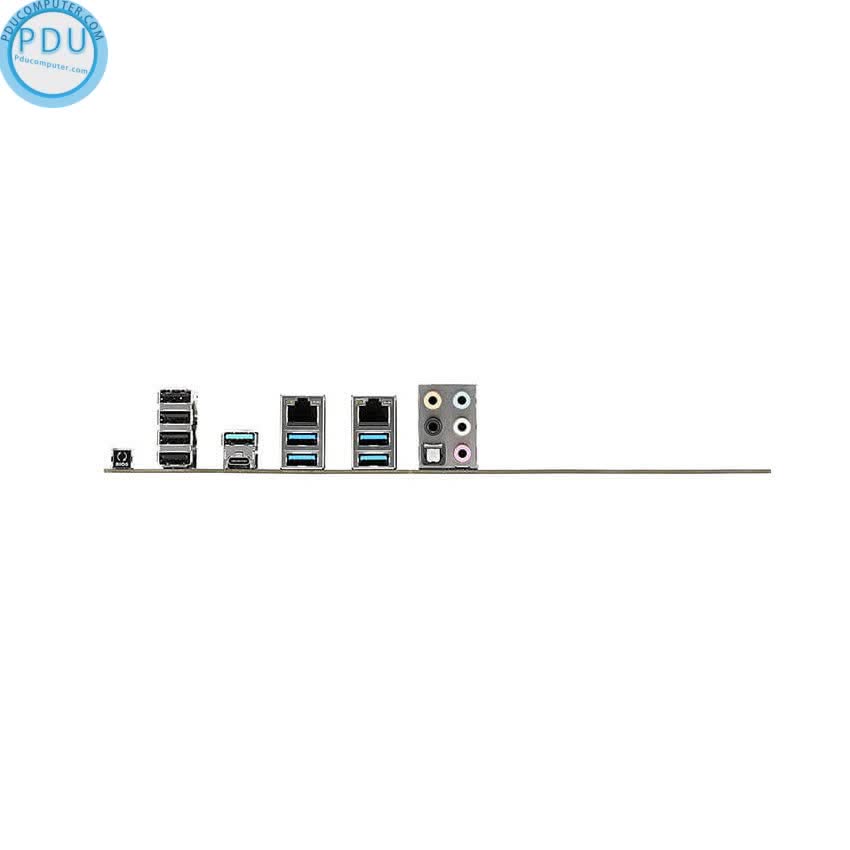

Cổng giao tiếp sau

2 x LAN (RJ45) port(s) Gigabit

2 x USB 3.1 Gen 2 Type-A + USB Type-CTM

4 x USB 3.1 Gen 1 (blue)

4 x USB 2.0 (one port can be switched to USB BIOS Flashback)

1 x Optical S/PDIF out

1 x USB BIOS Flashback Button(s)

1 x 8-channel Audio I/O

Công nghệ tích hợp

Kích thước

ATX Form Factor 12 inch x 9.6 inch ( cm x cm )

Phụ kiện đi kèm
