Mainboard Supermicro MBD-X10SRA-O (Intel C612, socket 2011-3, ATX, 8 khe RAM DDR4)

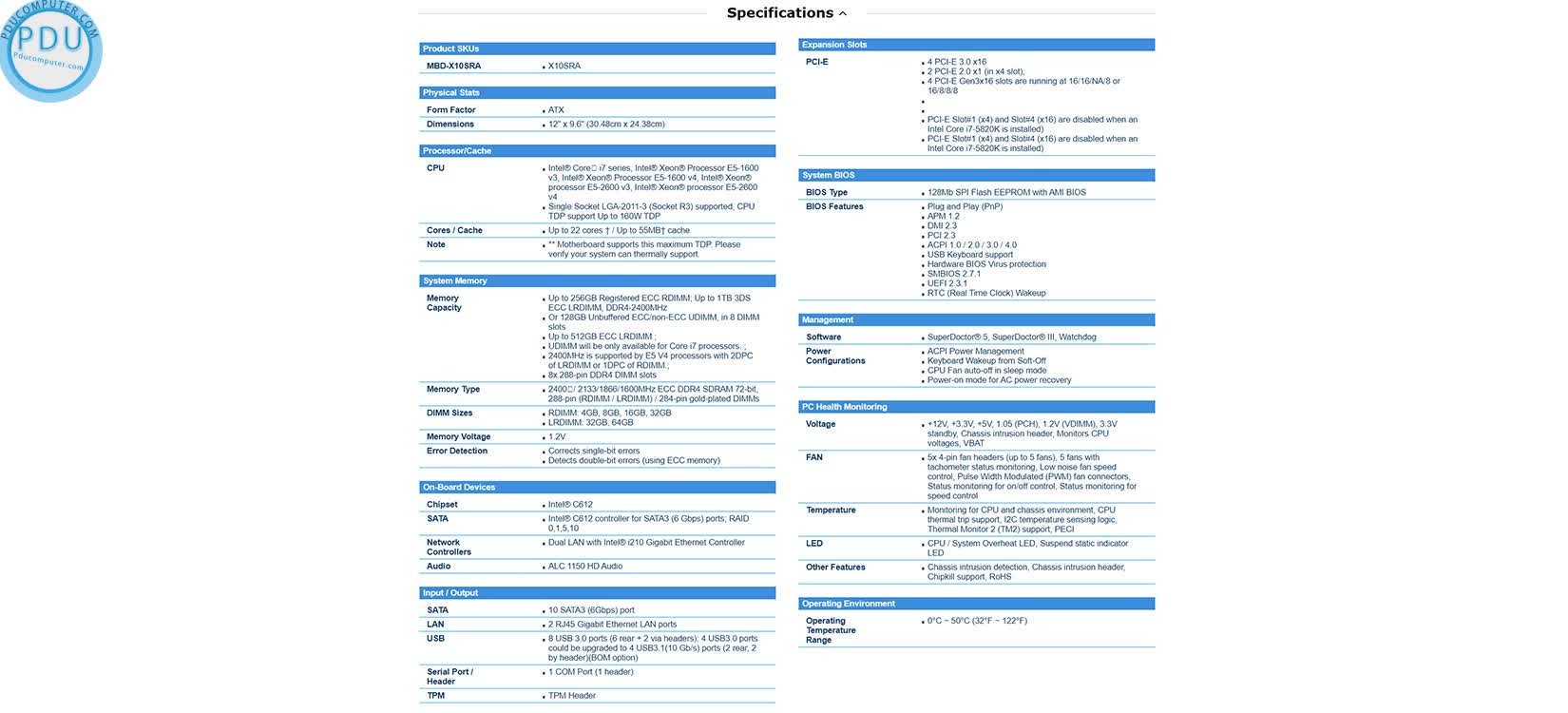

Mô tả chi tiết

Hãng sản xuất

Supermicro

Chủng loại

MBD-X10SRA-O

CPU hỗ trợ

Intel® Core™ i7 series, Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4

Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP support Up to 160W TDP

Chipset

Intel® C612

Bộ nhớ trong

Up to 256GB Registered ECC RDIMM; Up to 1TB 3DS ECC LRDIMM, DDR4-2400MHz

Or 128GB Unbuffered ECC/non-ECC UDIMM, in 8 DIMM slots

Up to 512GB ECC LRDIMM ;

UDIMM will be only available for Core i7 processors. ;

2400MHz is supported by E5 V4 processors with 2DPC of LRDIMM or 1DPC of RDIMM.;

8x 288-pin DDR4 DIMM slots

2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs

RDIMM: 4GB, 8GB, 16GB, 32GB

LRDIMM: 32GB, 64GB

VGA onboard

Âm thanh

ALC 1150 HD Audio

Khe mở rộng

4 PCI-E 3.0 x16

2 PCI-E 2.0 x1 (in x4 slot),

4 PCI-E Gen3x16 slots are running at 16/16/NA/8 or 16/8/8/8

Chuẩn lưu trữ

Intel® C612 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10

10 SATA3 (6Gbps) port

Cổng giao tiếp

8 USB 3.0 ports (6 rear + 2 via headers); 4 USB3.0 ports could be upgraded to 4 USB3.1(10 Gb/s) ports (2 rear, 2 by header)(BOM option)

1 COM Port (1 header)

2 RJ45 Gigabit Ethernet LAN ports

LAN

Dual LAN with Intel® i210 Gigabit Ethernet Controller

Kích thước

ATX

12" x 9.6" (30.48cm x 24.38cm)
