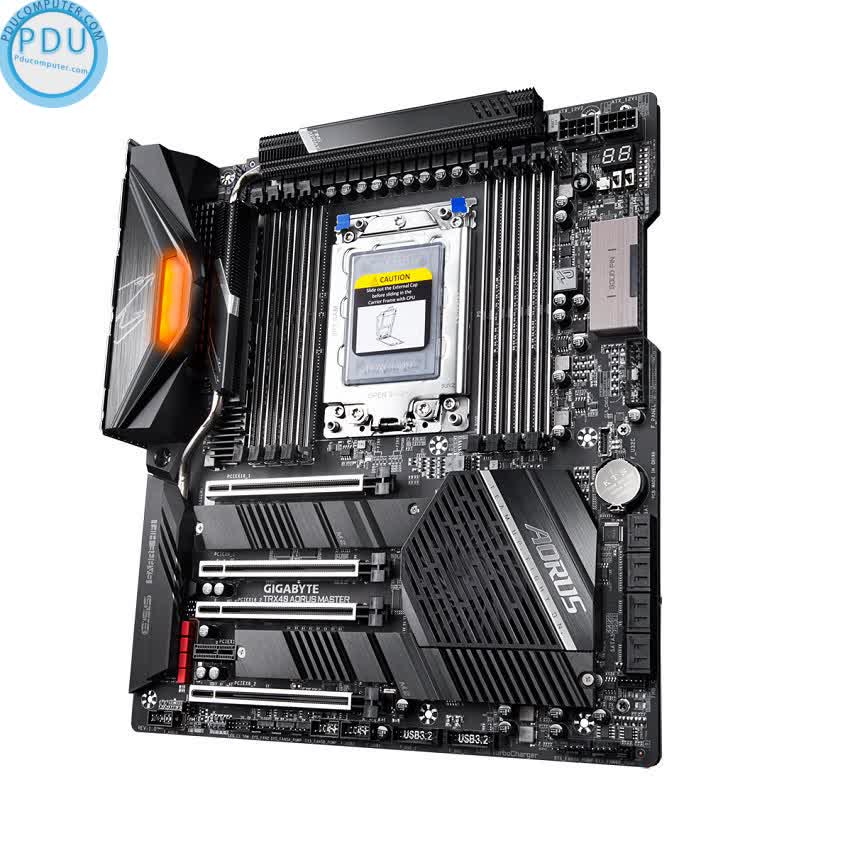

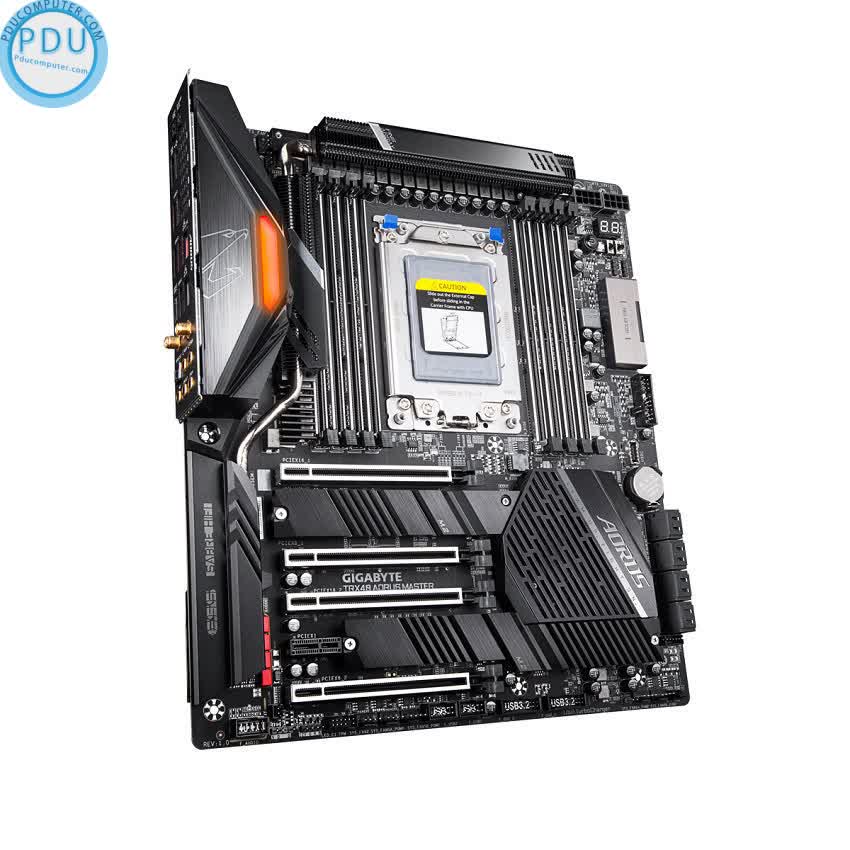

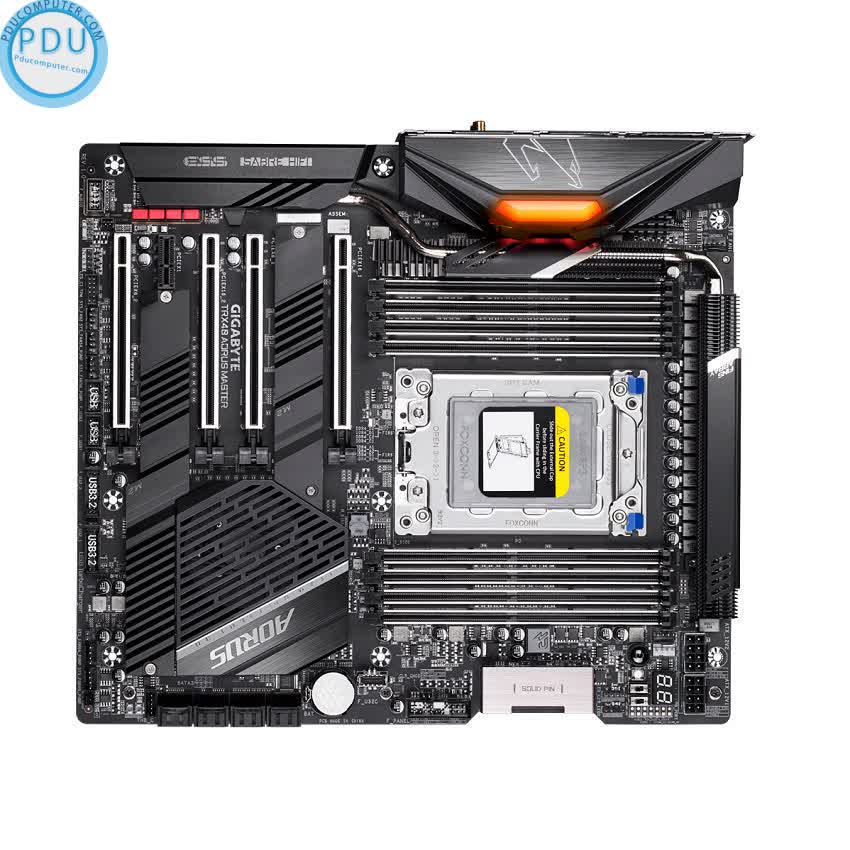

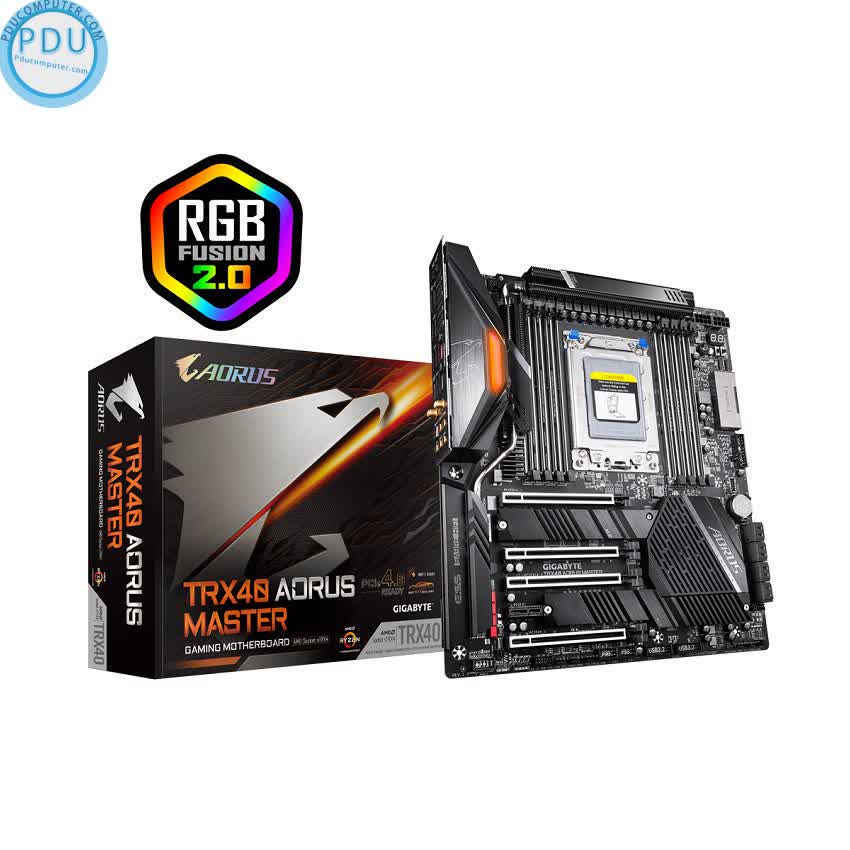

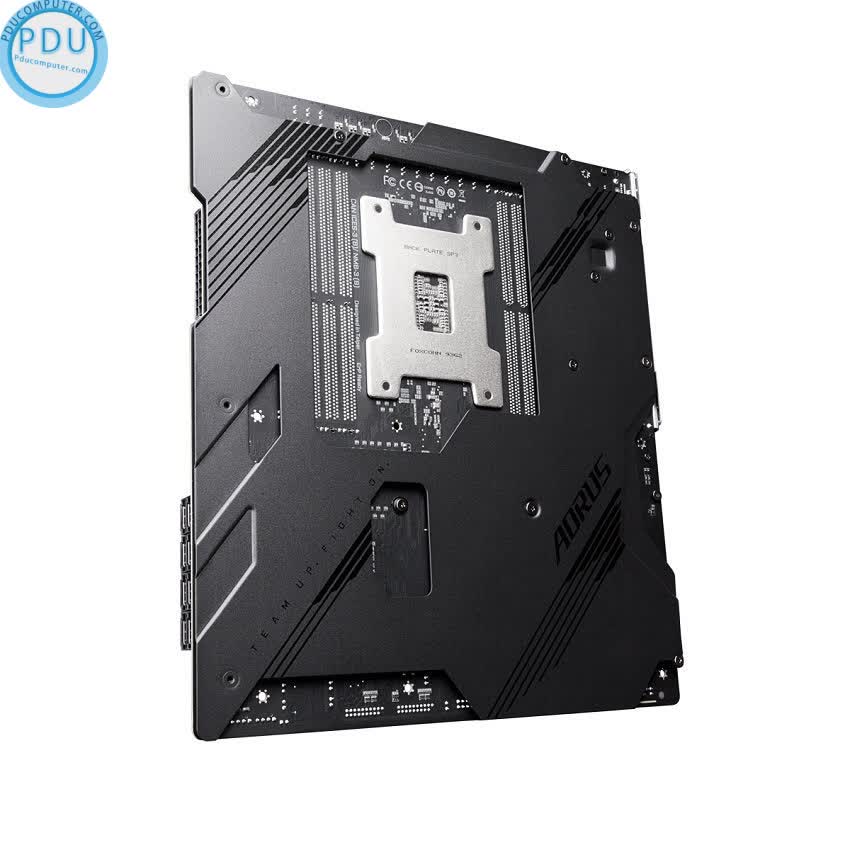

Mainboard GIGABYTE TRX40 AORUS MASTER (AMD TRX40, Socket sTRX4, E-ATX, 8 khe RAM DDR4)

giới thiệu tổng quan Mainboard GIGABYTE TRX40 AORUS MASTER (AMD TRX40, Socket sTRX4, E-ATX, 8 khe RAM DDR4)

♦ Được sản xuất bởi hãng rất nổi tiếng cả trong nước và trên thế giới.
Sản phẩm được sản xuất tại .
Có khối lượng là và kích thước .
Thông số khác của sản phẩm Mainboard GIGABYTE TRX40 AORUS MASTER (AMD TRX40, Socket sTRX4, E-ATX, 8 khe RAM DDR4): 4 x USB 3.0, HDMI (KẾT NỐI TIVI, MÁY CHIẾU...VV...),LAN (RJ45), VGA - KẾT NỐI MÁY CHIẾU, TÍCH HỢP MICROPHONE - HEADPHONE, Camera, Bluetooth

♦ Mainboard GIGABYTE TRX40 AORUS MASTER (AMD TRX40, Socket sTRX4, E-ATX, 8 khe RAM DDR4) với trọng lượng là , nên rất tiện lợi trong quá trình sử dụng, cũng như trong việc đi lại.

Mainboard GIGABYTE TRX40 AORUS MASTER (AMD TRX40, Socket sTRX4, E-ATX, 8 khe RAM DDR4)

CPU	AMD Socket sTRX4: Support 3rd Generation AMD Ryzen™ Threadripper™ processors
Chipset	AMD TRX40
Bộ nhớ	1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
	2. Quad Channel memory architecture
	3. Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
Audio	1. 1 x Realtek® ALC4050H codec+1 x Realtek® ALC1220-VB codec (Rear audio)
	2. 1 x Realtek® ALC4050H codec+1 x ESS SABRE9218 DAC chips (Front audio)
	3. Support for DTS:X® Ultra
	4. High Definition Audio
	5. 2/4/5.1/7.1-channel
	6. Support for S/PDIF Out
LAN	1. 1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (5GLAN)
	2. 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN)
Wireless Communication module	Intel® Wi-Fi 6 AX200
	1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
	2. BLUETOOTH 5.0
	3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	* Actual data rate may vary depending on environment and equipment.
Expansion Slots	1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
	2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
	3. 1 x PCI Express x1 slot
	(All of the PCI Express slots conform to PCI Express 4.0 standard.)
Multi-Graphics Technology	1. Support for NVIDIA® Quad-GPU SLI™ and 3-Way/2-Way NVIDIA® SLI™ technologies
	2. Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
Storage Interface	integrated in the CPU:
	1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
	2. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
	Integrated in the Chipset:
	1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
	2. 8 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, and RAID 10
USB	Integrated in the CPU:
	1. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	Integrated in the Chipset:
	1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
	2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	3. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
	4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
	Chipset+2 USB 2.0 Hubs:
	1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 2 x 8-pin ATX 12V power connectors
	3. 1 x CPU fan header
	4. 1 x water cooling CPU fan header
	5. 2 x system fan headers
	6. 4 x system fan/water cooling pump headers
	7. 2 x addressable LED strip headers
	8. 2 x RGB LED strip headers
	9. 3 x M.2 Socket 3 connectors
	10. 8 x SATA 6Gb/s connectors
	11. 1 x front panel header
	12. 1 x front panel audio header
	13. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
	14. 2 x USB 3.2 Gen 1 headers
	15. 2 x USB 2.0/1.1 headers
	16. 1 x noise detection header
	17. 1 x GIGABYTE add-in card connector
	18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
	19. 1 x power button
	20. 1 x reset button
	21. 2 x BIOS switches
	22. 2 x temperature sensor headers
	23. 1 x Clear CMOS jumper
	24. Voltage Measurement Points
Back Panel Connectors	1. 1 x Q-Flash Plus button
	2. 1 x Clear CMOS button
	3. 2 x SMA antenna connectors (2T2R)
	4. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
	5. 5 x USB 3.2 Gen 2 Type-A ports (red)
	6. 2 x USB 2.0/1.1 ports
	7. 2 x RJ-45 ports
	8. 1 x optical S/PDIF Out connector
	9. 5 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Water cooling flow rate detection
	5. Overheating warning
	6. Fan fail warning
	7. Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
	8. Noise detection
BIOS	1. 2 x 128 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. Support for DualBIOS™
	4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	AutoGreen
	Cloud Station EasyTune
	Fast Boot
	Game Boost
	RGB Fusion
	Smart Backup
	Smart Keyboard
	Smart Survey
	System Information Viewer
	USB Blocker
	USB TurboCharger
	2. Support for Q-Flash Plus
	3. Support for Q-Flash
	4. Support for Xpress Install
Bundled Software	1. Norton® Internet Security (OEM version)
	2. cFosSpeed
	3. XSplit Gamecaster + Broadcaster (12 months license)
Hệ điều hành	Support for Windows 10 64-bit
Kích Thước	E-ATX Form Factor; 30.5cm x 26.9cm
