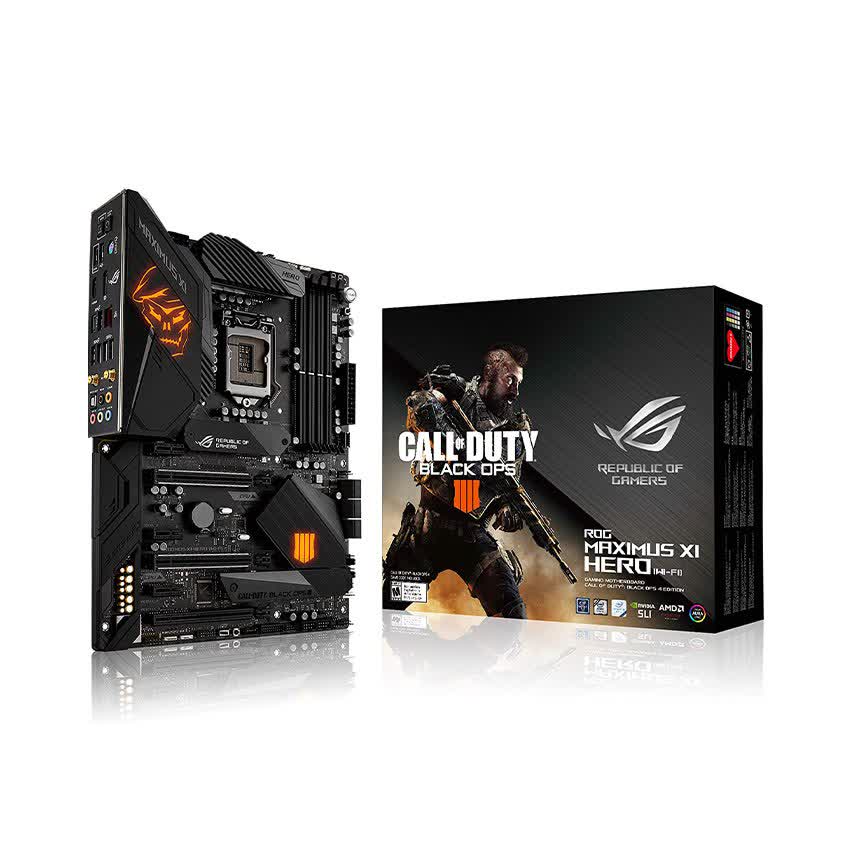

Mainboard ASUS ROG MAXIMUS XI HERO (WI-FI)/CE Z390

Tên gọi

CPU hỗ trợ

Intel® Socket 1151 for 8th Generation Core™ Processors

Chipset / Socket

Intel® Z390

Bộ nhớ (RAM)

Công nghệ đa GPU

• Supports NVIDIA® 2-Way SLI™ Technology
• Supports AMD 3-Way CrossFireX™ Technology

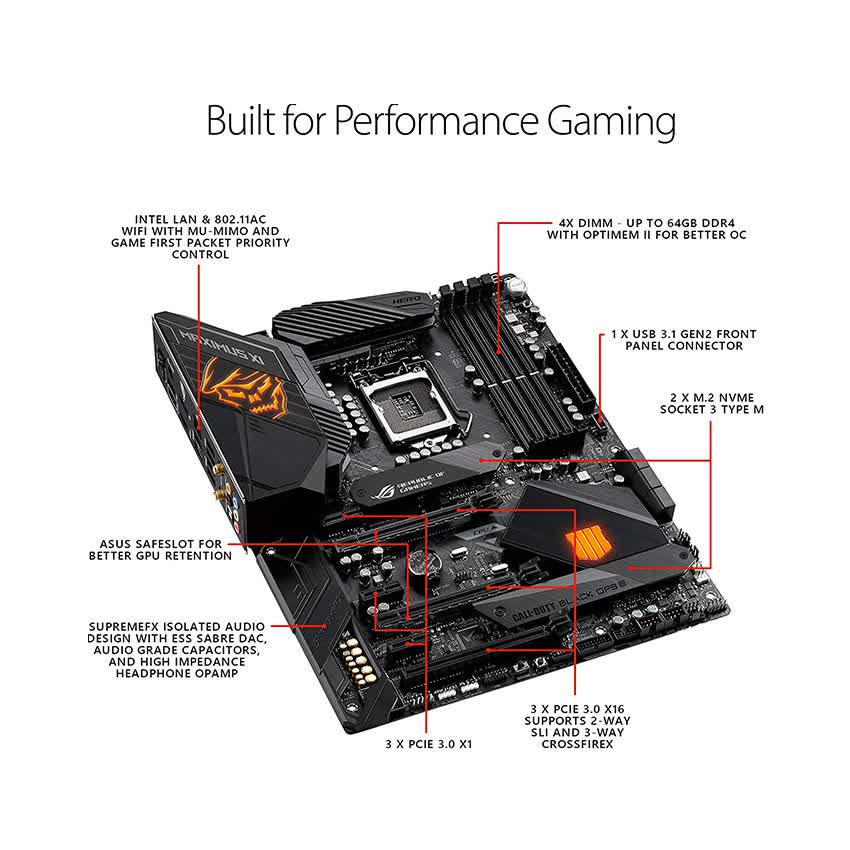

Khe cắm mở rộng

• 2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4)
  1 x PCIe 3.0 x16 (x4 mode) *1
  3 x PCIe 3.0 x1
• 1 x M.2 Socket 3 (SATA & PCIE 3.0 x 4 mode)*2
  1 x M.2 Socket 3 (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s port(s)

LAN / Wireless

• Intel® I219V

• Intel® Wireless-AC 9560
• Wi-Fi 802.11 a/b/g/n/ac
- Supports dual band frequency 2.4/5 GHz
- Supports MU-MIMO
- Supports channel bandwidth: HT20/HT40/HT80/HT160

Âm thanh

• ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS® ES9023P
- Supports up to 32-Bit/192kHz playback *3

• Audio Feature :
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link

Cổng kết nối (Internal)

• 2 x Aura Addressable Strip Header(s)
• 2 x Aura RGB Strip Headers
• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1 x TPM connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 3 x Chassis Fan connector(s) (3 x 4 -pin)
• 1 x AIO_PUMP connector (1 x 4 -pin)
• 1 x H_AMP fan connector
• 1 x W_PUMP+ connector (1 x 4 -pin)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x MemOK! II switch(es)
• 1 x Reset button(s)
• 1 x Node Connector(s)
• 1 x ReTry button
• 1 x System panel connector
• 1 x EXT_Fan header
• 1 x W_IN header
• 1 x W_OUT header
• 1 x W_FLOW header
• 1 x Thermal sensor connector
• 1 x Start button
• 1 x USB 3.1 Gen 2 front panel connector

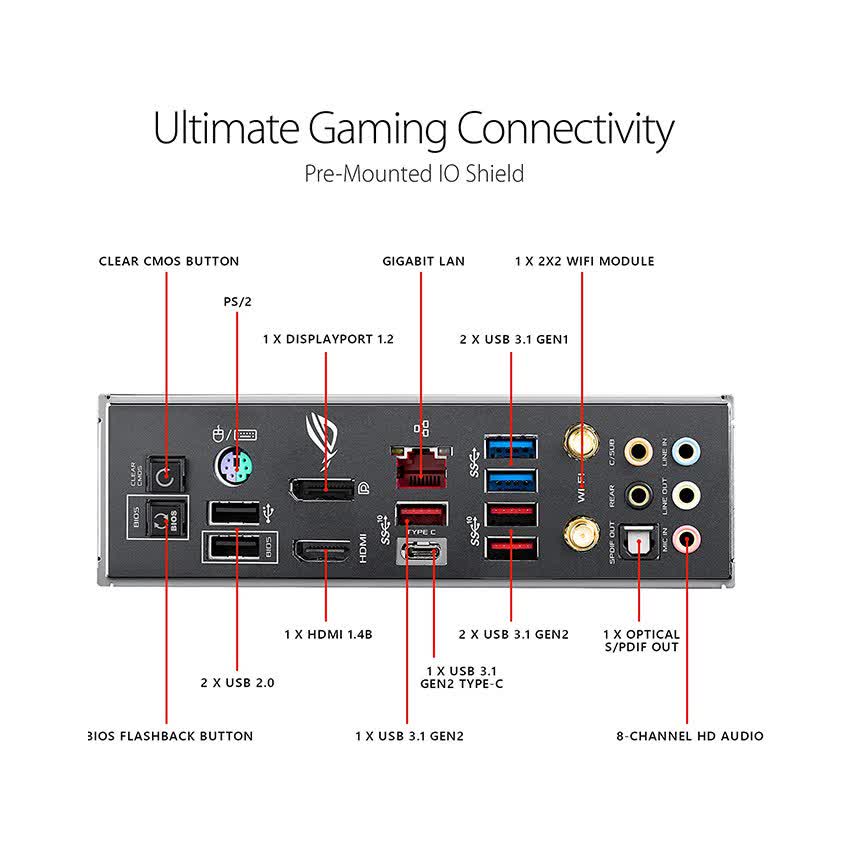

Cổng kết nối (Back Panel)

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.1 Gen 2 (red) (1 x Type-C+3 x Type-A)
• 2 x USB 3.1 Gen 1 (blue) Type-A
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 1 x Clear CMOS button(s)
• 1 x USB BIOS Flashback Button(s)
• 1 x ASUS Wi-Fi Module
• 5 x Gold-plated audio jacks

Công nghệ độc quyền

ReTry Button
Start Button
Reset Button

Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors

Mem TweakIt
Extreme Tweaker

ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- RAMDisk
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III

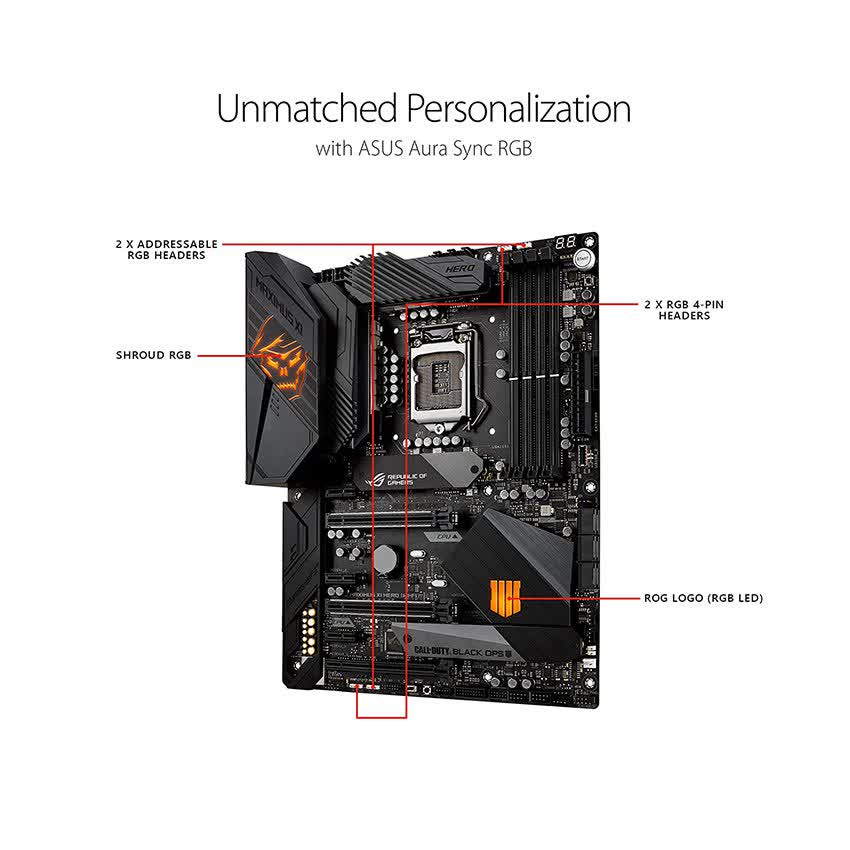

AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)

ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK! II
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- OptiMem II
- ASUS EZ Flash 3
- ASUS C.P.R.(CPU Parameter Recall)
- BUPDATER
- BIOS Flashback Button
- Clear CMOS Button
- Reset Button

ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

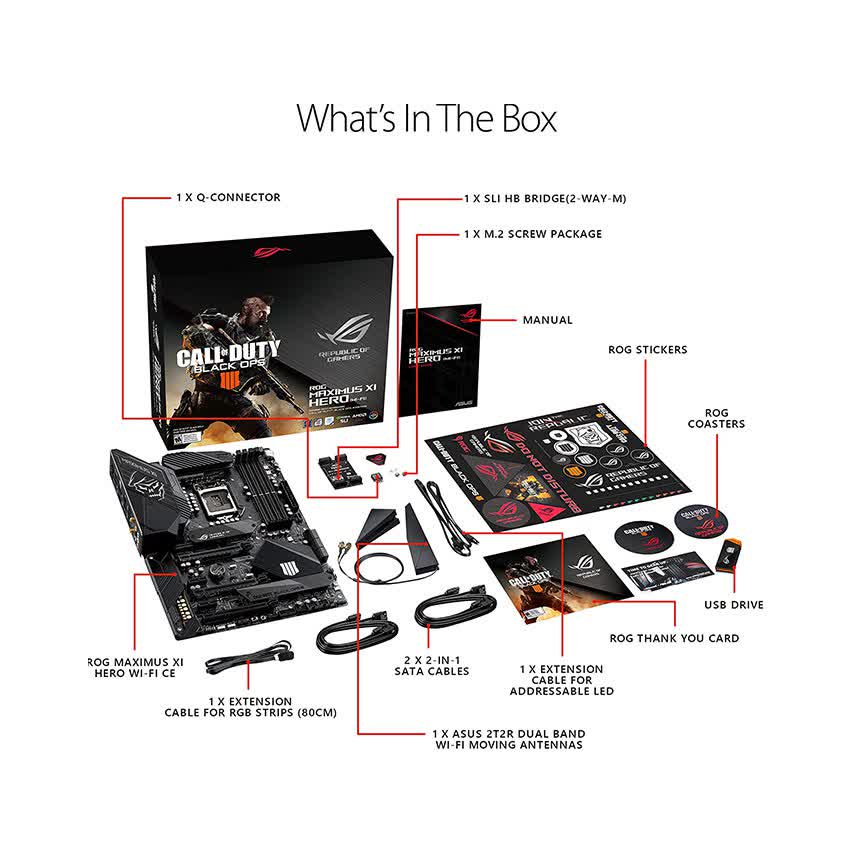

Phụ kiện đi kèm

User's manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG big sticker
1 x Q-Connector
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG coaster(s)

Hệ điều hành khuyến nghị

• Windows® 10 64-bit

Chuẩn kích cỡ

• ATX Form Factor
