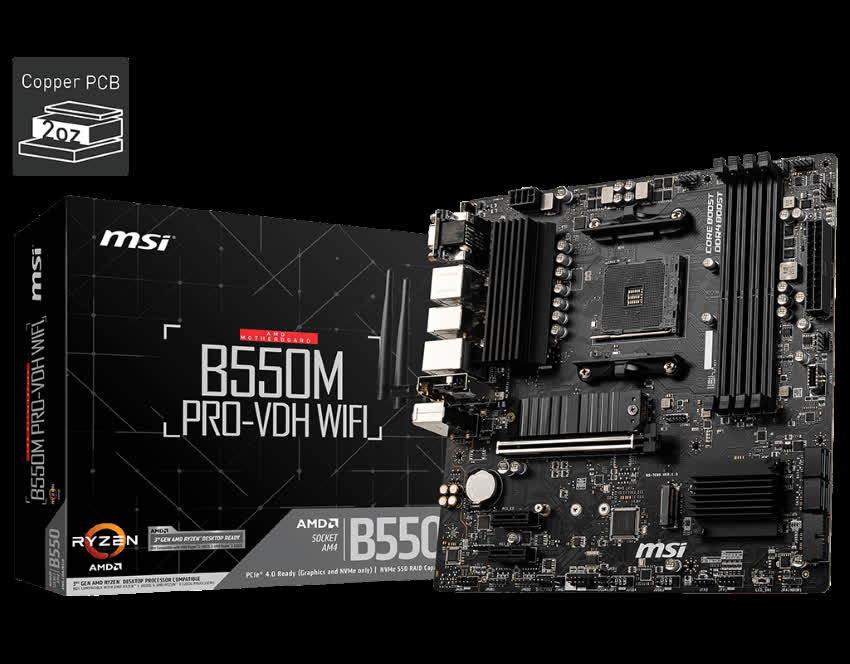

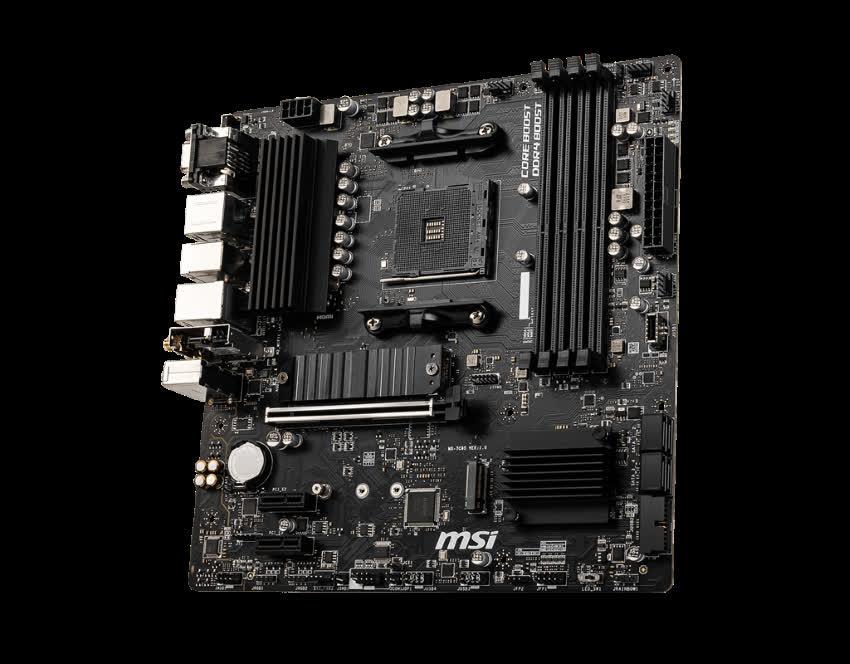

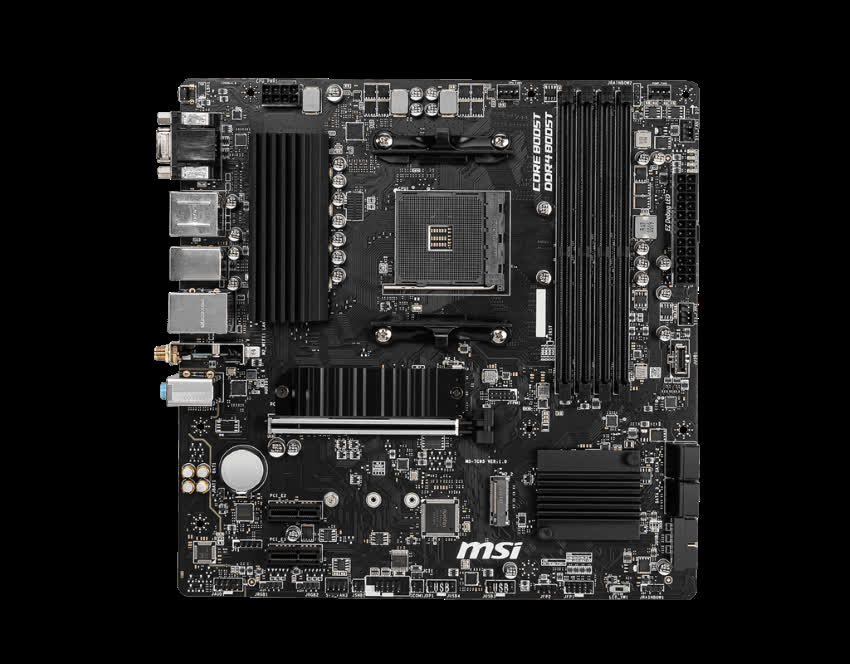

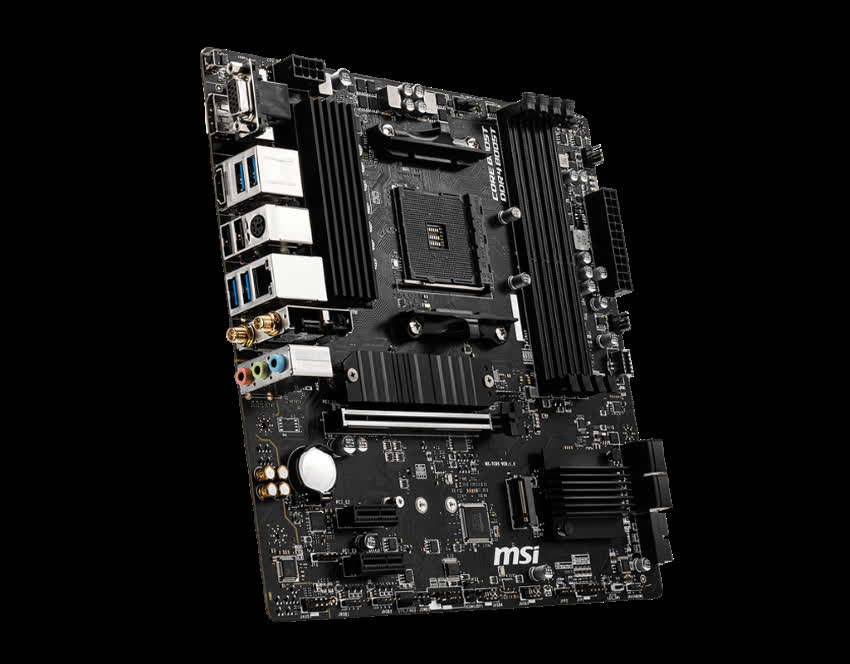

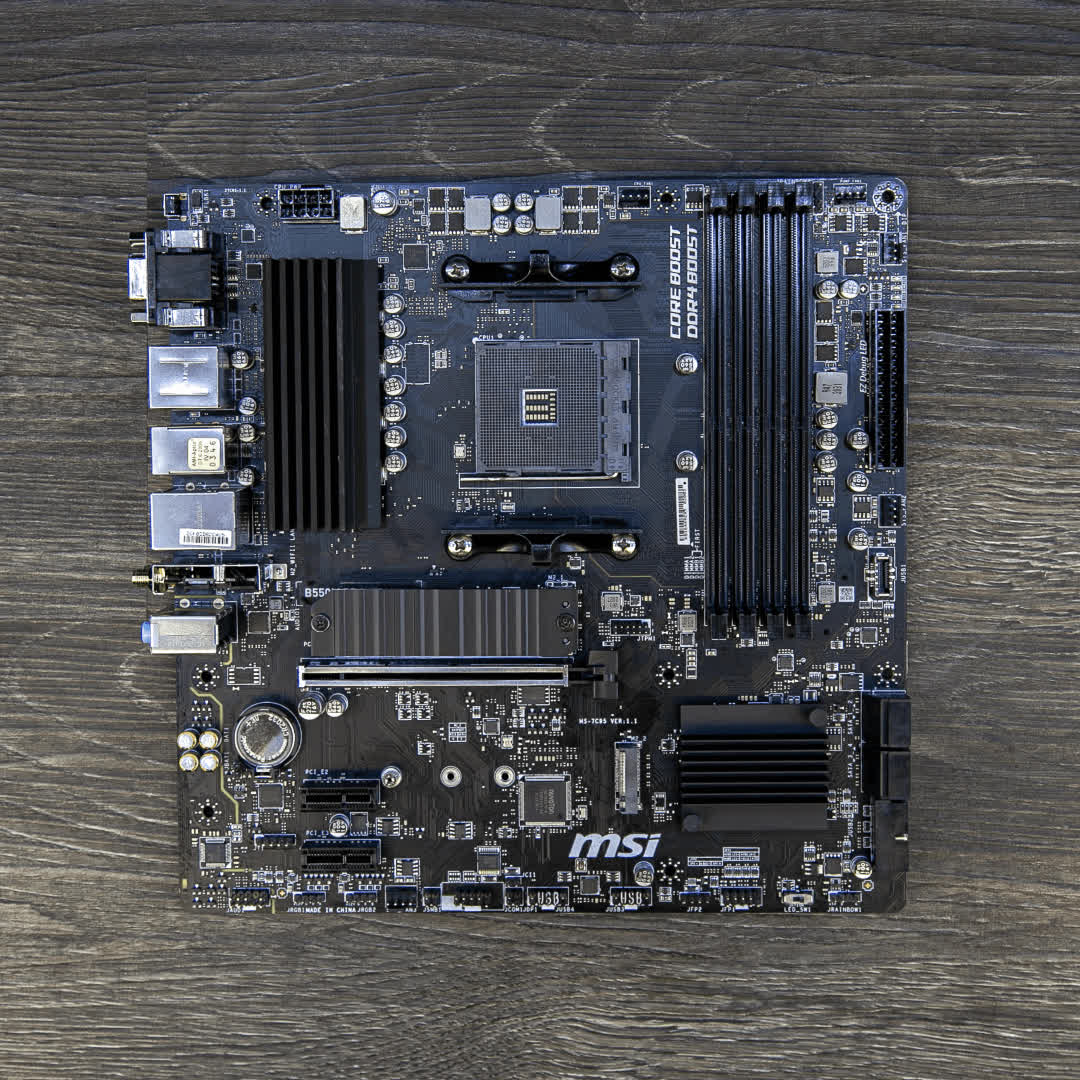

Mainboard MSI B550M PRO-VDH WIFI

Sản phẩm

Main - Bo mạch chủ

Tên Hãng

MSI

Model

CPU hỗ trợ

AM4 socket 3rd Gen AMD Ryzen™ processors, và CPU AMD Ryzen™

tương lai bằng cách nâng cấp BIOS.

Chipset

AMD B550 Chipset

RAM hỗ trợ

4x DDR4 memory slots, hỗ trợ lên tới 128GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066

/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866

/4000 /4133 /4266 /4400+ MHz

by A-XMP OC MODE

1DPC 1R max speed 4400 MHZ

1DPC 2R max speed 3733 MHZ

2DPC 1R max speed 3866 MHZ

2DPC 2R max speed 3466 MHZ

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

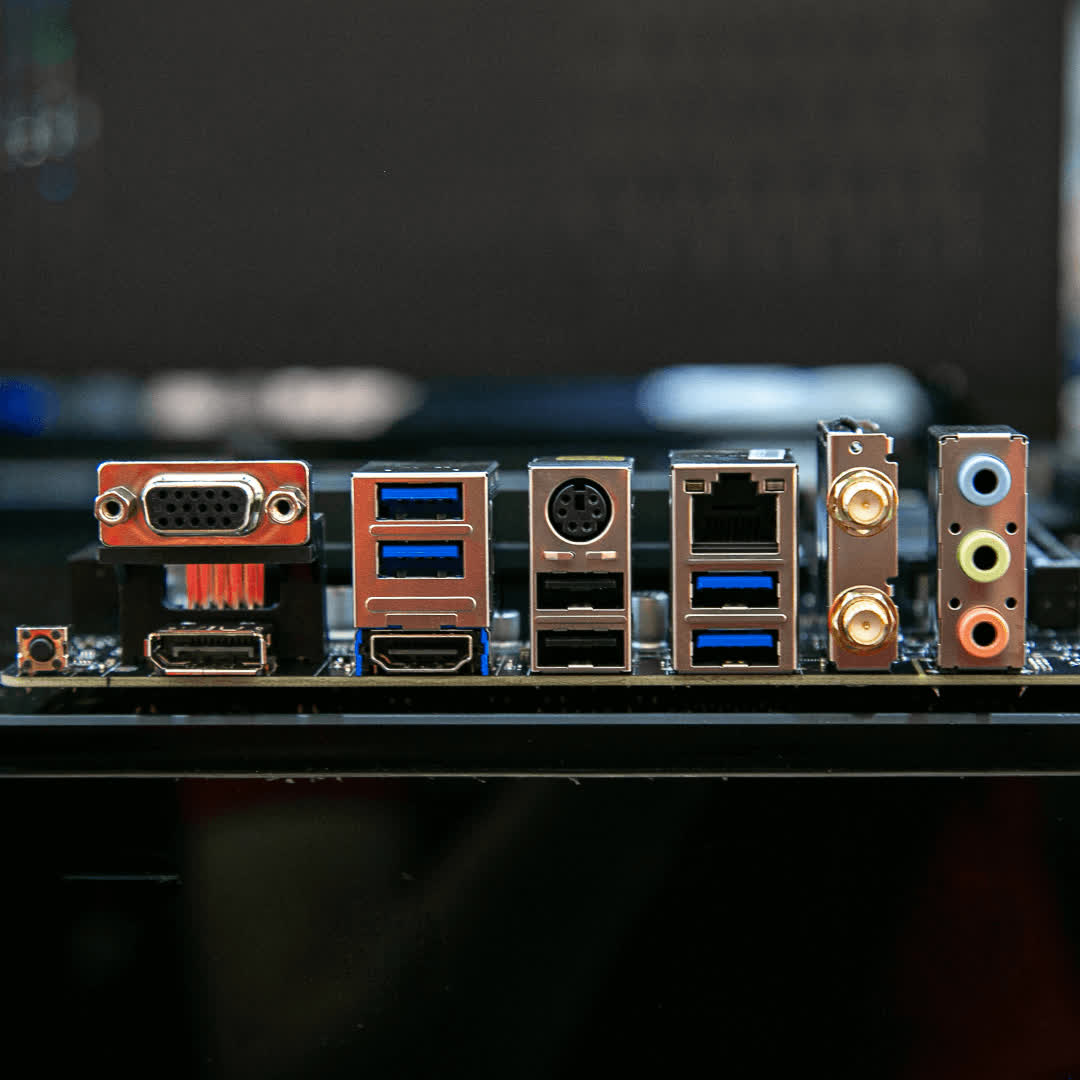

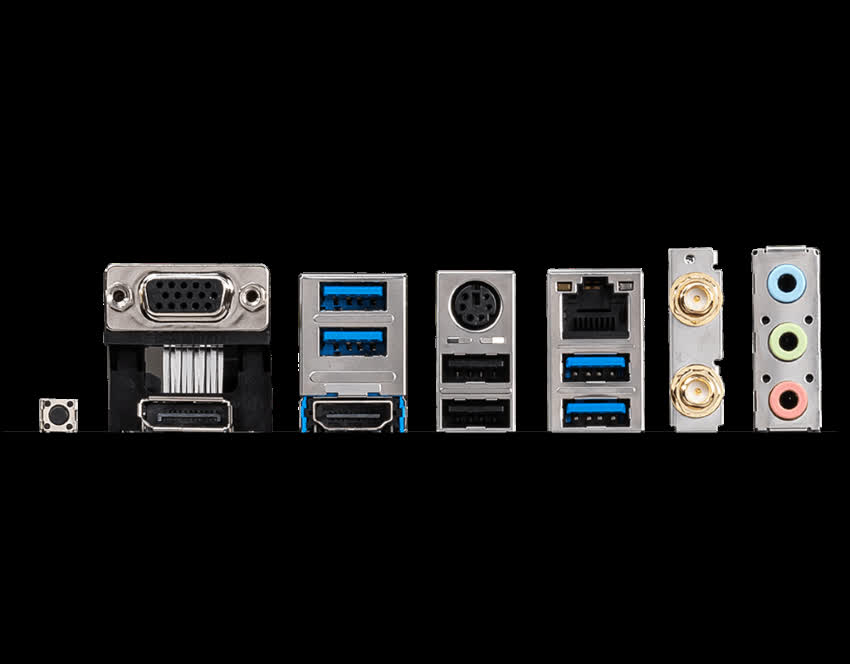

Cổng xuất hình onboard

1x VGA port, hỗ trợ  2048x1536 @50Hz, 2048x1280 @60Hz,

1920x1200 @60Hz

1x DisplayPort, hỗ trợ 4096x2160 @60Hz

1x HDMI 2.1 port, hỗ trợ 4096x2160 @60Hz1x

Âm Thanh

Realtek® ALC892 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN

Realtek® RTL8111HN Gigabits LAN controller

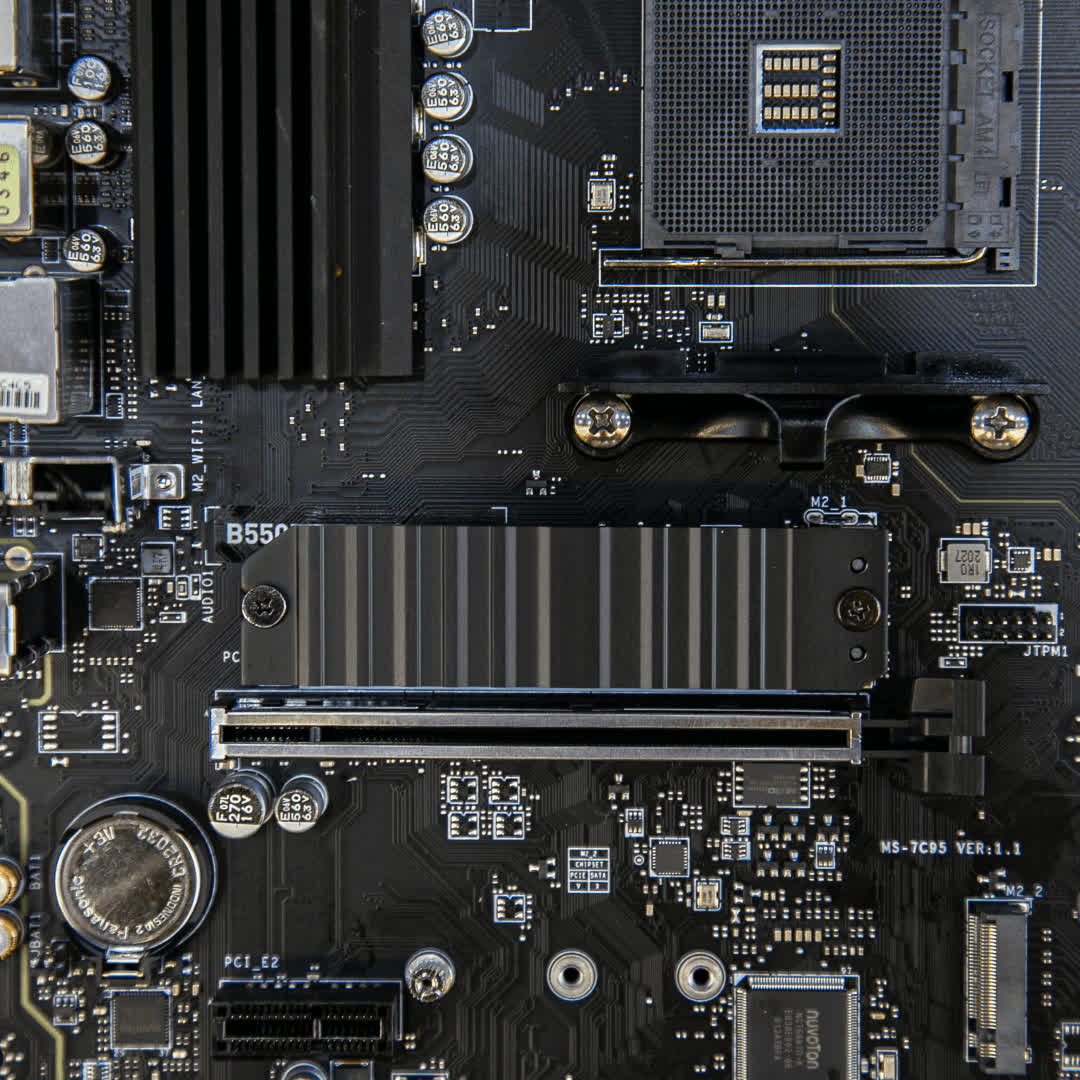

Khe cắm mở rộng

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1

2x PCIe 3.0 x1 slots

Wireless

Intel® Dual Band Wireless-AC 3168

Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to

433 Mbps speed.

Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
