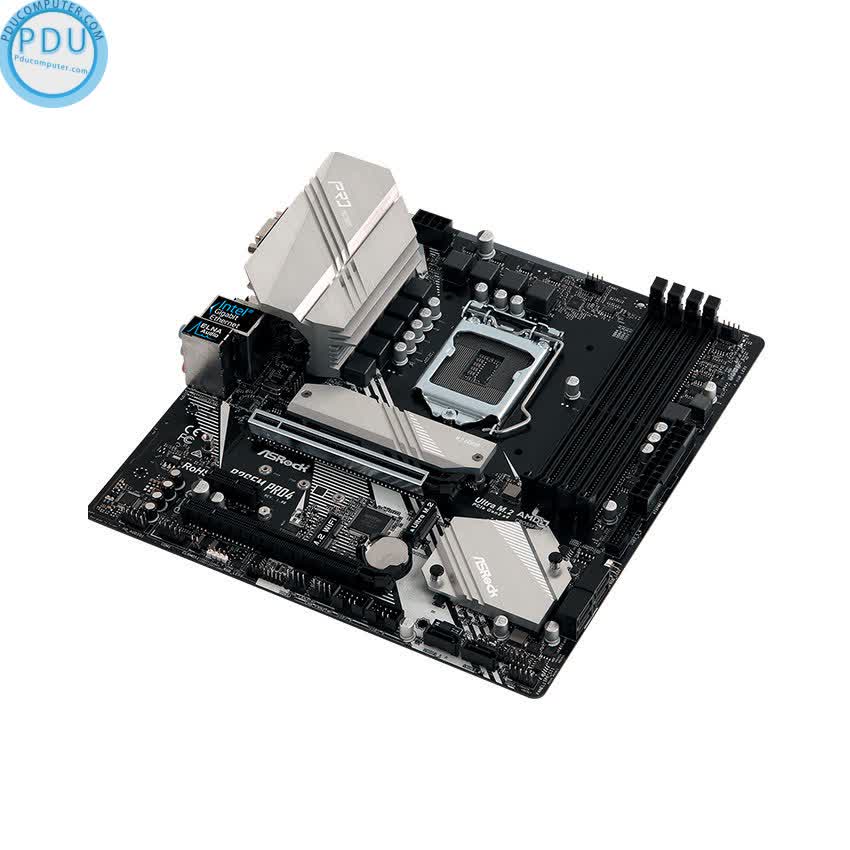

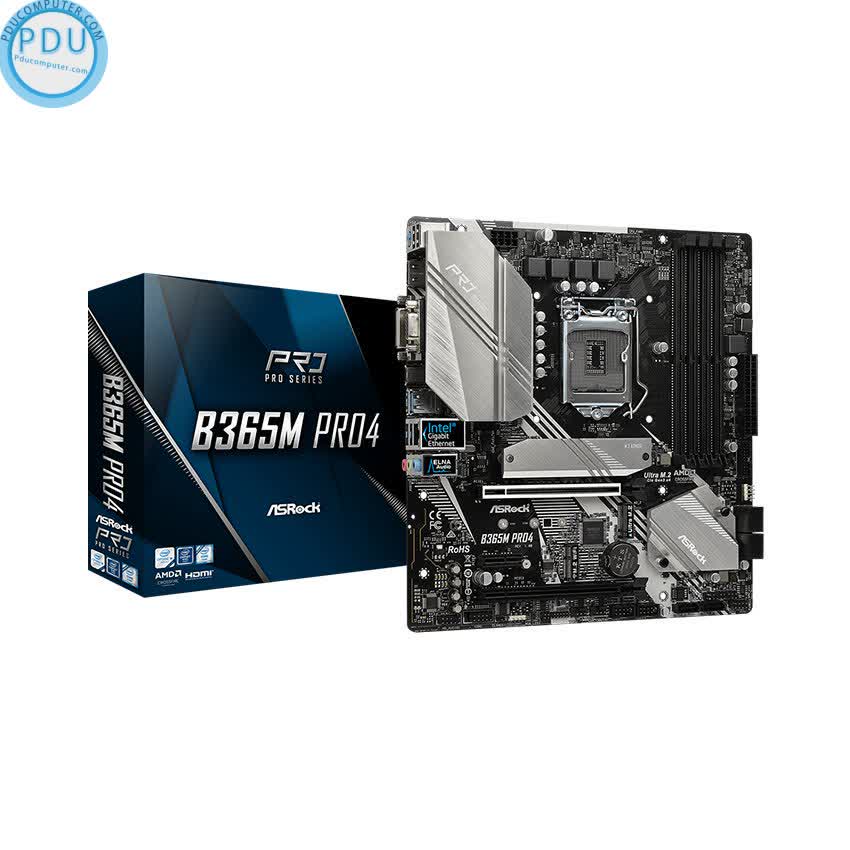

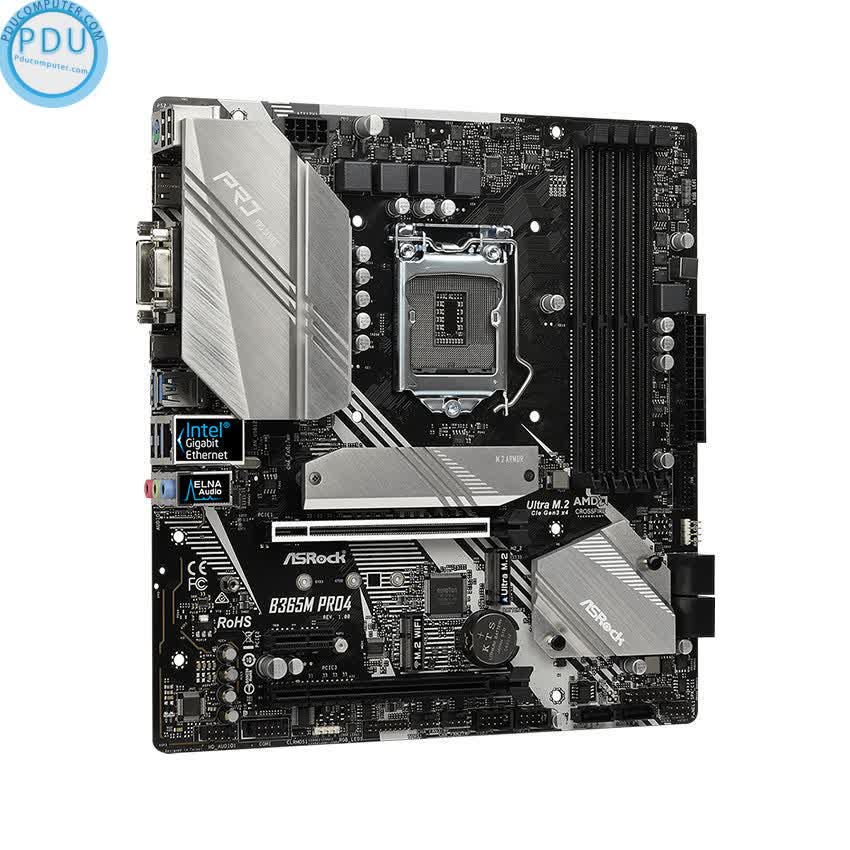

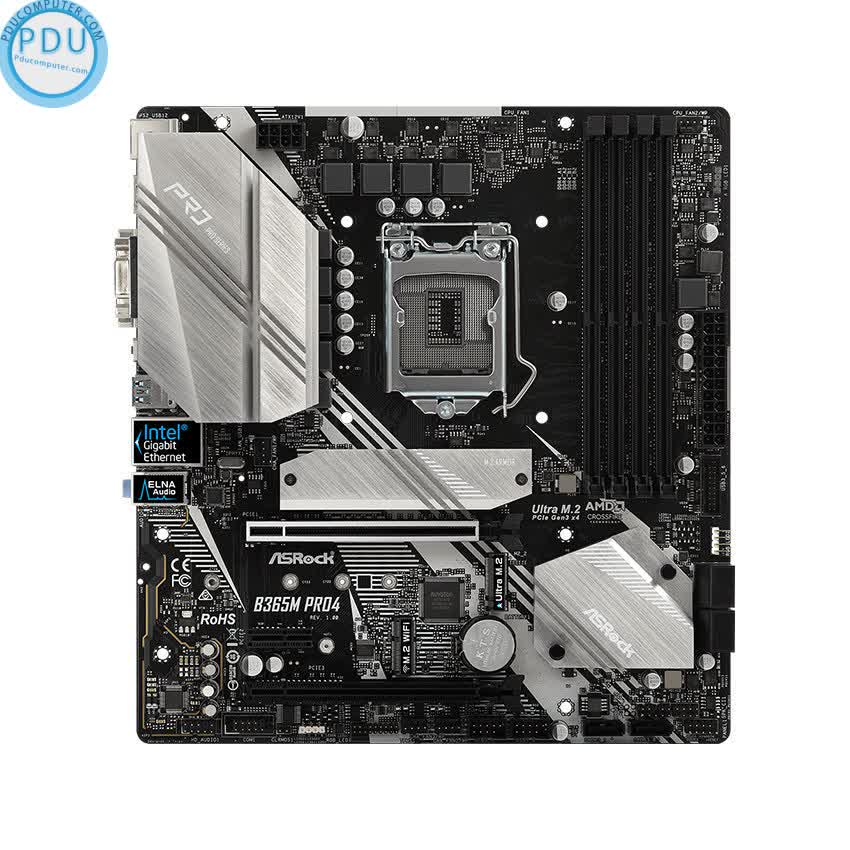

Mainboard ASROCK B365M - Pro4 (Intel B365, Socket 1151, m-ATX, 4 khe RAM DDR4)

giới thiệu tổng quan Mainboard ASROCK B365M - Pro4 (Intel B365, Socket 1151, m-ATX, 4 khe RAM DDR4)

♦ Được sản xuất bởi hãng rất nổi tiếng cả trong nước và trên thế giới.
Sản phẩm được sản xuất tại .
Có khối lượng là và kích thước .
Thông số khác của sản phẩm Mainboard ASROCK B365M - Pro4 (Intel B365, Socket 1151, m-ATX, 4 khe RAM DDR4): 4 x USB 3.0, HDMI (KẾT NỐI TIVI, MÁY CHIẾU...VV...),LAN (RJ45), VGA - KẾT NỐI MÁY CHIẾU, TÍCH HỢP MICROPHONE - HEADPHONE, Camera, Bluetooth

♦ Mainboard ASROCK B365M - Pro4 (Intel B365, Socket 1151, m-ATX, 4 khe RAM DDR4) với trọng lượng là , nên rất tiện lợi trong quá trình sử dụng, cũng như trong việc đi lại.

Mainboard ASROCK B365M - Pro4 (Intel B365, Socket 1151, m-ATX, 4 khe RAM DDR4)

CPU	– Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) – Supports CPU up to 95W – Digi Power design – 8 Power Phase design – Supports Intel® Turbo Boost 2.0 Technology
Chipset	– Intel® B365
Memory	– Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 128GB* – Supports Intel® Extreme Memory Profile (XMP) 2.0 – 15μ Gold Contact in DIMM Slots
BIOS	– 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment
Graphics	– Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics – DirectX 12 – HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 – Three graphics output options: D-Sub, DVI-D and HDMI – Supports Triple Monitor – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) – Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports – Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
Audio	– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* – Premium Blu-ray Audio support – Supports Surge Protection – ELNA Audio Caps
LAN	– Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel® I219V – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE
Slots	– 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))* – 1 x PCI Express 3.0 x1 Slot (Flexible PCIe) – Supports AMD Quad CrossFireX™ and CrossFireX™ – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Storage	– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug* – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** – 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
Connector	– 1 x COM Port Header – 1 x TPM Header – 1 x Chassis Intrusion and Speaker Header – 2 x RGB LED Headers* – 1 x Addressable LED Header** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

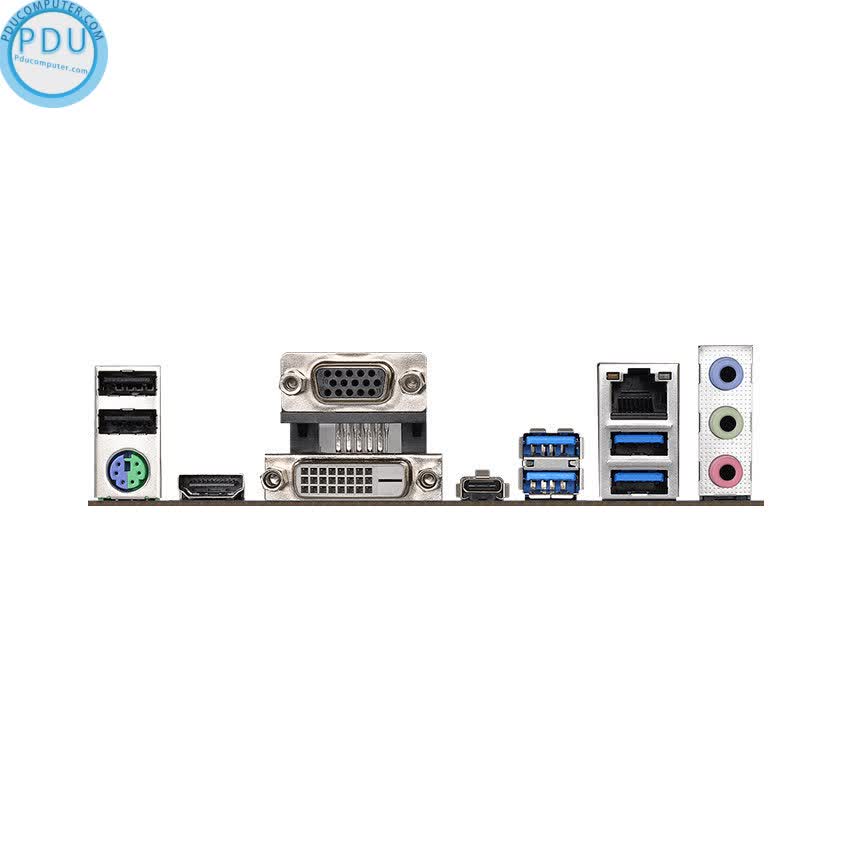

Rear Panel I/O	– 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 2 x USB 2.0 Ports – 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software – ASRock A-Tuning – ASRock Polychrome SYNC – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash
Accessories	– Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables – 3 x Screws for M.2 Sockets – 1 x Standoff for M.2 Socket
Form Factor	– Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm – Solid Capacitor design
OS	– Microsoft® Windows® 10 64-bit
Unique Feature	ASRock Super Alloy – Premium 50A Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for USB, Audio, LAN Ports) ASRock Live Update & APP Shop
