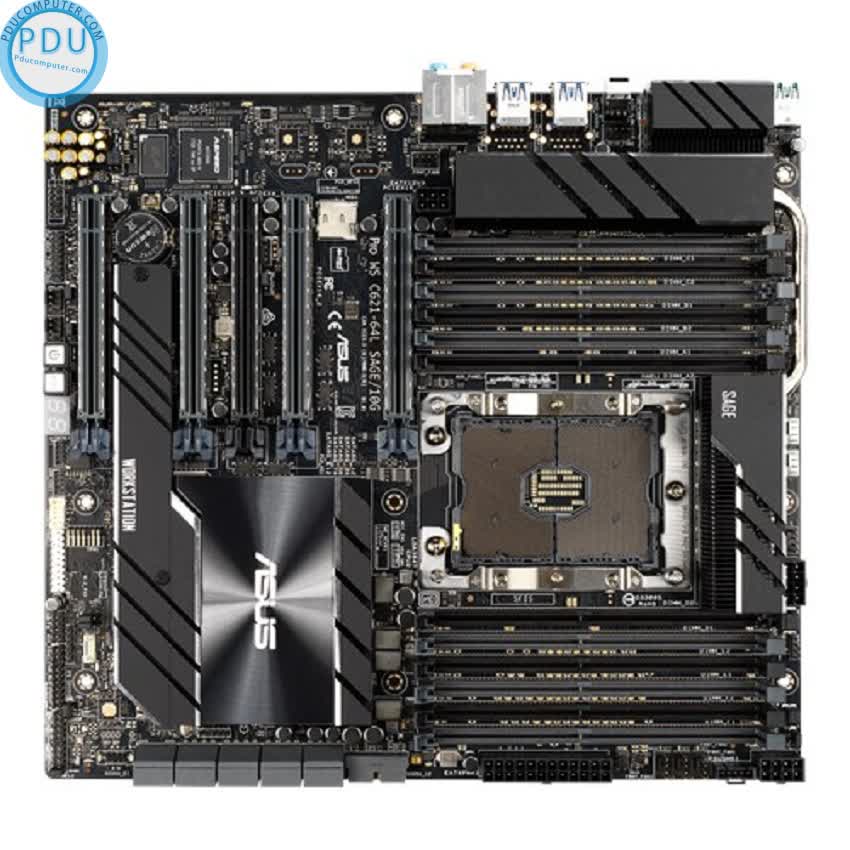

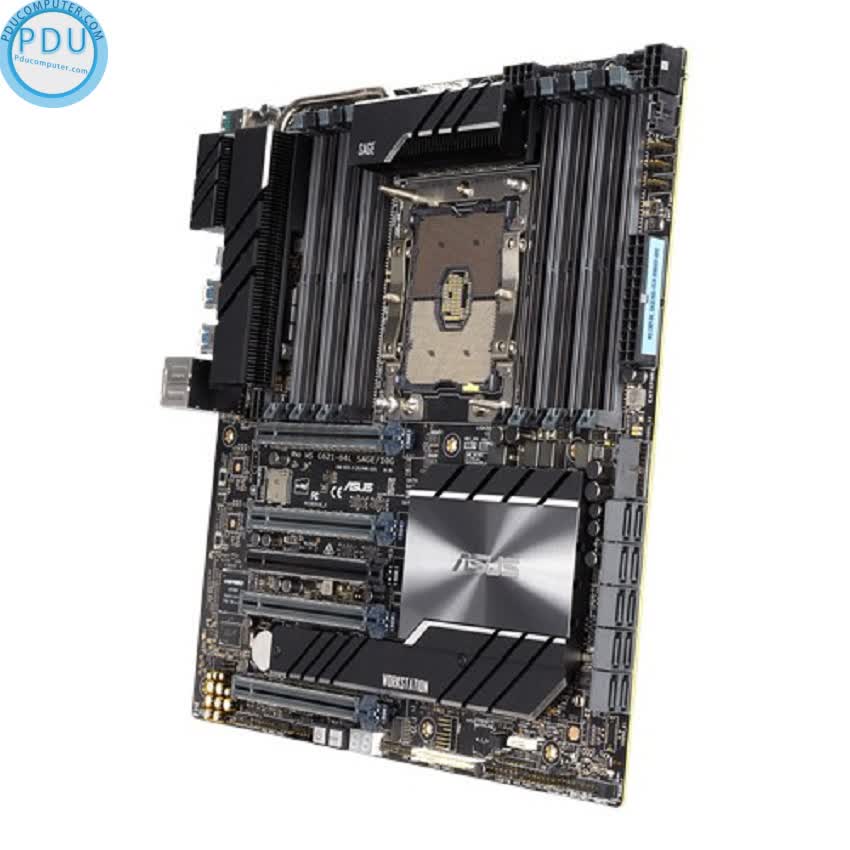

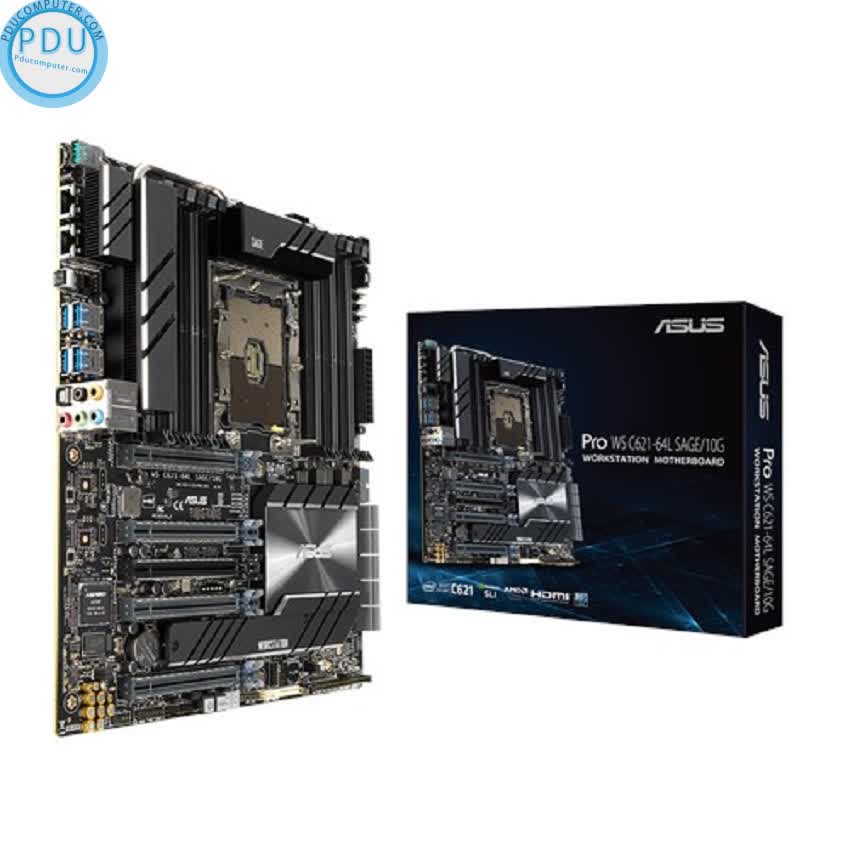

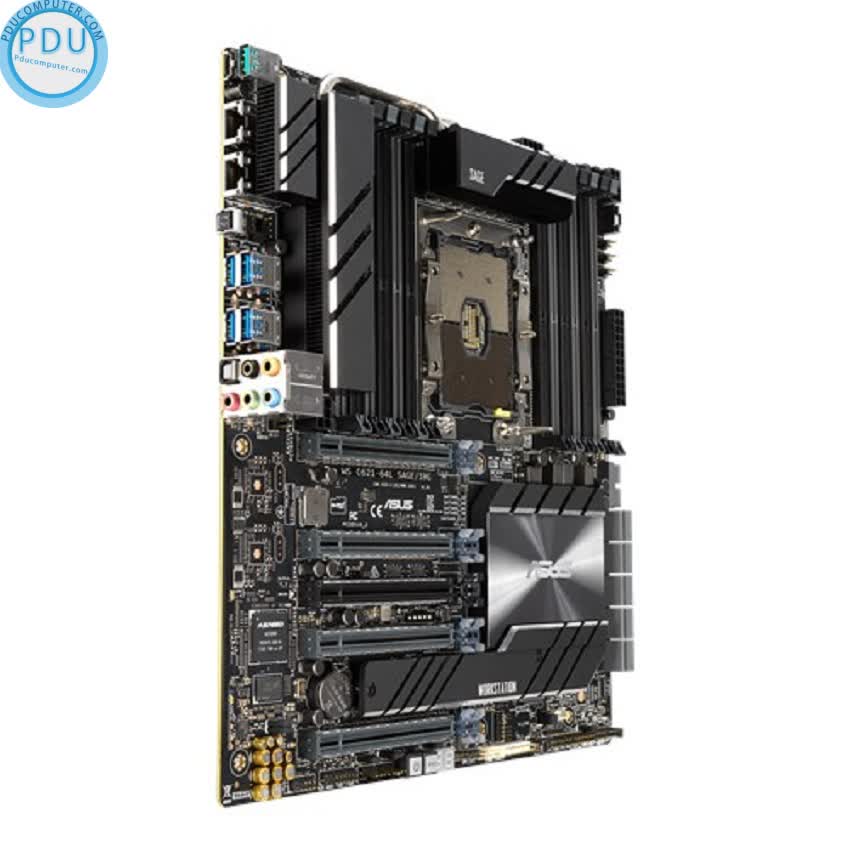

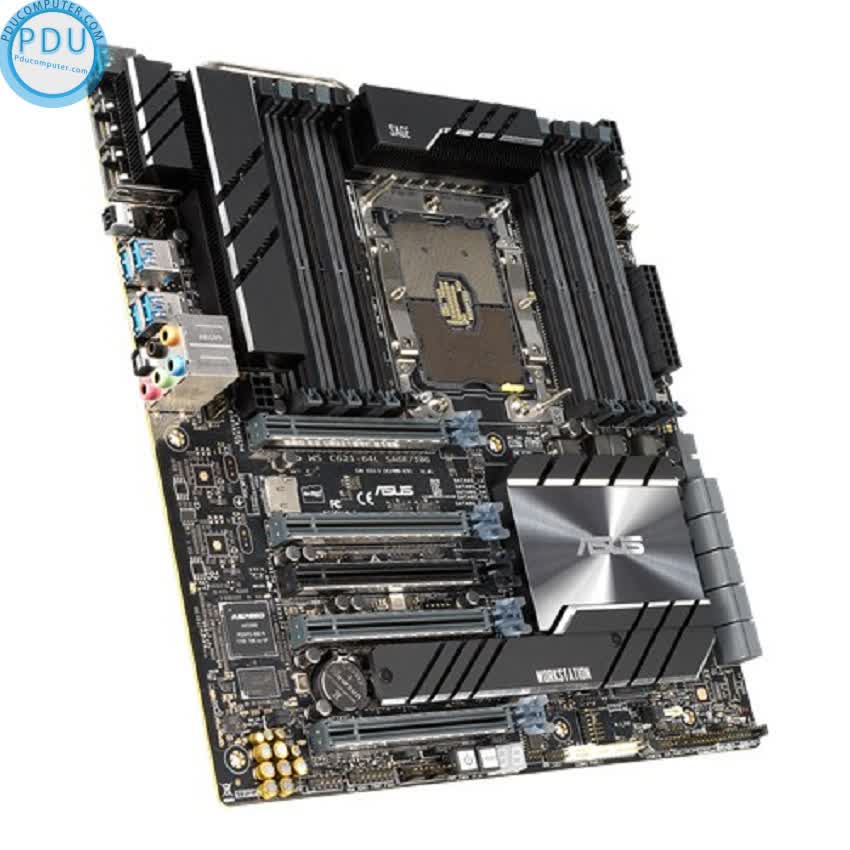

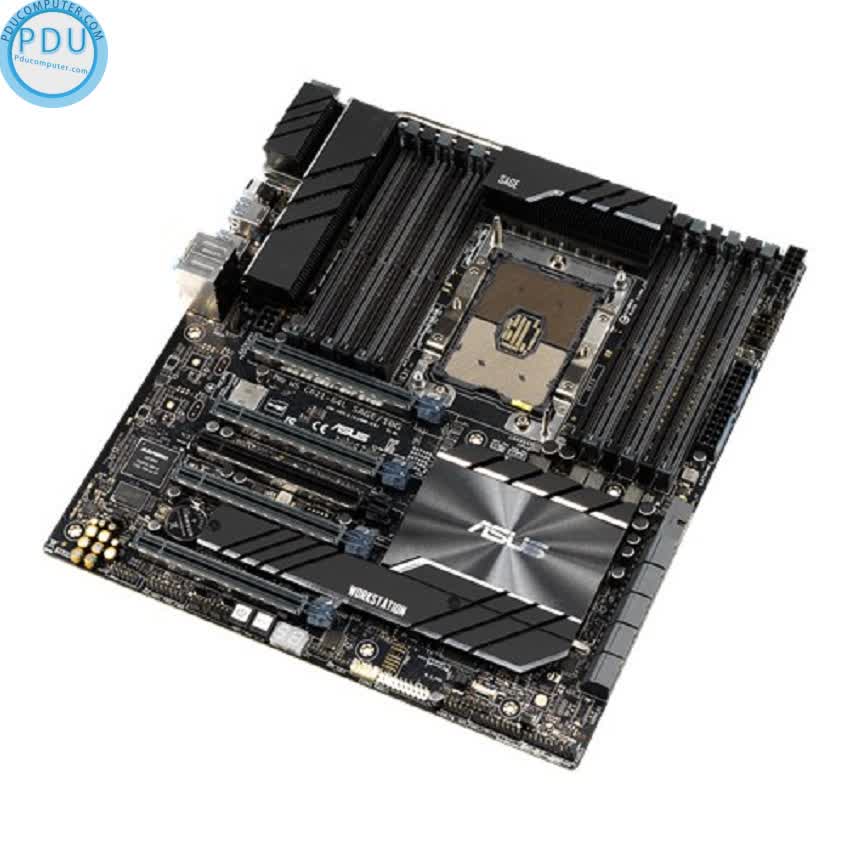

Mainboard ASUS Pro WS C621-64L SAGE/10G (Intel C621, Socket 3647, CEB, 12 khe RAM DDR4)

Mô tả chi tiết

Hãng sản xuất

Asus

Chủng loại

Pro WS C621-64L SAGE/10G

CPU hỗ trợ

1 x Socket P (LGA 3647)

1st and 2nd Gen Xeon® Scalable Processor Family

Intel® Xeon® W-3200 Processors

Chipset

Intel® C621 Chipset

Bộ nhớ trong

Total Slots : 12 (6-channel per CPU, 12 DIMM per CPU)

Capacity : Maximum up to 1536GB RDIMM

Memory Type :

DDR4 2933/2666 RDIMM DDR4 2933/2666 LRDIMM

Memory Size :

128GB, 64GB, 32GB, 16GB RDIMM/LRDIMM

VGA onboard

Âm thanh

Khe mở rộng

Total Slot : 5

Slot Location 1 : PCI-E x16 (Gen3 X16 Link)

Slot Location 2 : PCI-E x16 (Gen3 X16 Link)

Slot Location 3 : PCI-E x16 (Gen3 X4 Link)

Slot Location 4 : PCI-E x16 (Gen3 X16 Link)

Slot Location 5 : PCI-E x16 (Gen3 X16 Link)

Chuẩn lưu trữ

SATA Controller :

Intel® C621 8 x SATA3 6Gb/s ports + 1 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link)

SATA Controller :

ASMedia® SATA 6Gb/s controller 2 x SATA3 6Gb/s ports

Cổng giao tiếp

2 x USB 3.2 Gen2 ports (1 x Type-A, 1 x Type-C)

4 x USB 3.2 Gen1 ports

2 x 10GbE LAN ports (RJ45)

5 x Audio Jacks (7.1-channel HD Audio)

1 x Optical S/PDIF output

LAN

1 x Dual Port Intel X550-AT2 10GbE LAN controller

Kích thước

CEB (12"x10.9", 305mm x 277mm)

Phụ kiện đi kèm
